KI Unite Panel System - 10-Wire Duplex Receptacle Installation

26
Unite
®
Panel System - Electrical Installation
Assembly Instructions
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.

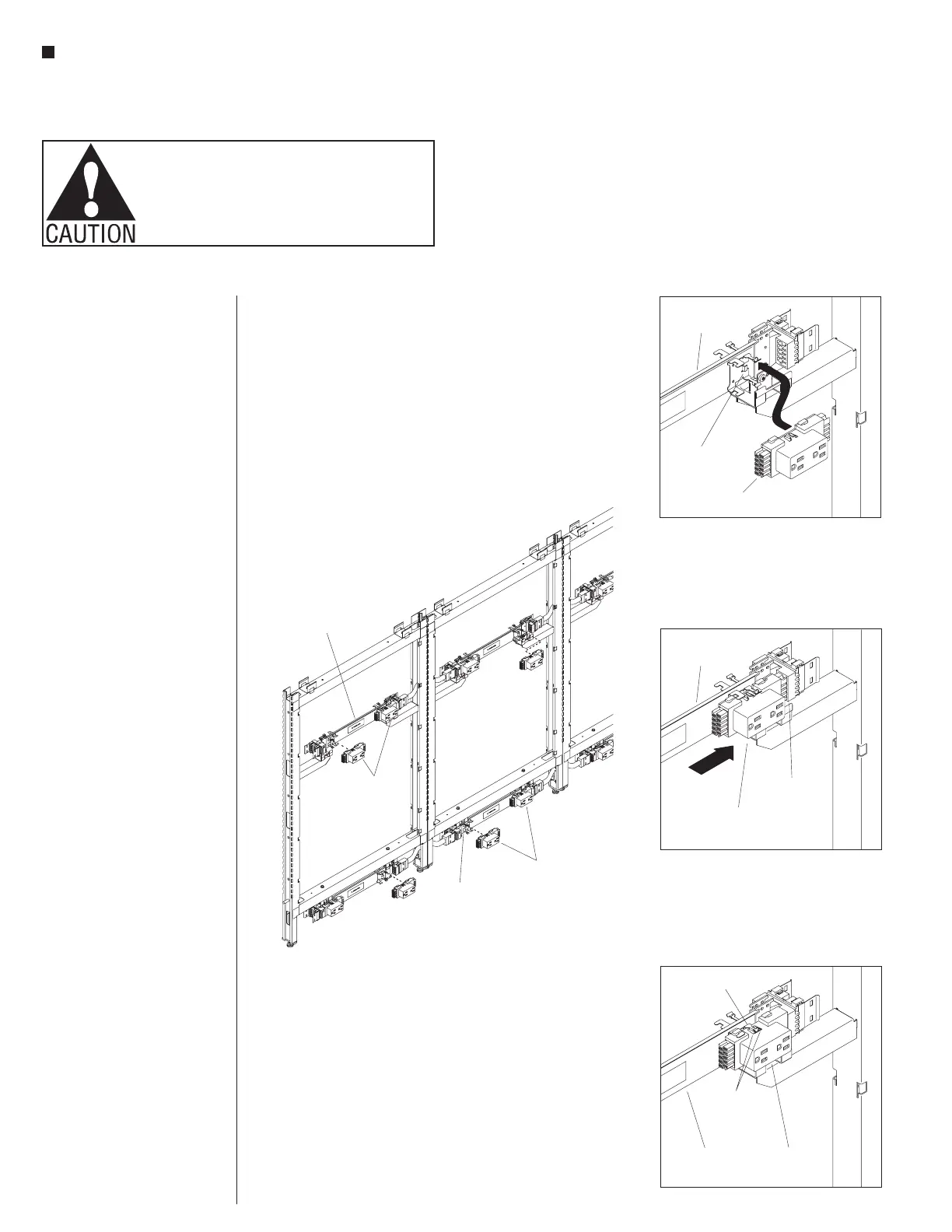

Figure
10-10-Wire Duplex Receptacles
10-wire
rigid wireway
(beltway-height)
10-wire
rigid wireway
(base raceway)
10-wire duplex
receptacles
10-wire
duplex
receptacles
10-Wire Duplex Receptacle
Installation
Note: 10-wire duplex receptacles
for the 10-wire system must be
specified/ordered separately.
There are six receptacles available
for accessing one of each of the
six circuits of the 10-wire
system. They are designed with
a numeral on each (i.e. 1, 2, 3, 4,
5, & 6). Circuits 4, 5 and 6 have
orange triangles to identify them
as isolated circuits. To install
the receptacles, follow the steps
below.
WARNING: Assembly of all
mechanical components must
be completed before making
any electrical connections. All
electrically connected furnishings
must also be mechanically
connected.
1. Per the space-planning layout,
determine the correct location for
each numbered receptacle in the
system (Figure 10).
2. Position the 10-wire duplex
receptacle on either end of the
10-wire rigid wireway as shown,
matching the arrow at the “N”
symbol to the same orientation
on both the receptacle and the
wireway (Figure 10).
3. Align the receptacle so the end
is in-line with the inner socket
on the 10-wire rigid wireway and
push the receptacle back against
the mounting plate (Detail A).
4. Slide the receptacle to the side
so the end terminals slide into
the 10-wire rigid wireway’s inner
socket (Detail B).
5. Receptacle is properly seated
when the catch clip on the
wireway is snapped in between
the wedges on the receptacle
(Detail C).
Detail
A
mounting
plate
10-wire
rigid wireway
10-wire
duplex receptacle
Detail B
inner socket
of rigid wireway
10-wire
rigid wireway
10-wire
duplex receptacle
Detail
C
catch clip
wedges
on receptacle
10-wire
rigid wireway
10-wire
duplex receptacle
