KI Unite Panel System - Page 25

Unite
®
Panel System - Electrical Installation
Assembly Instructions
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
25

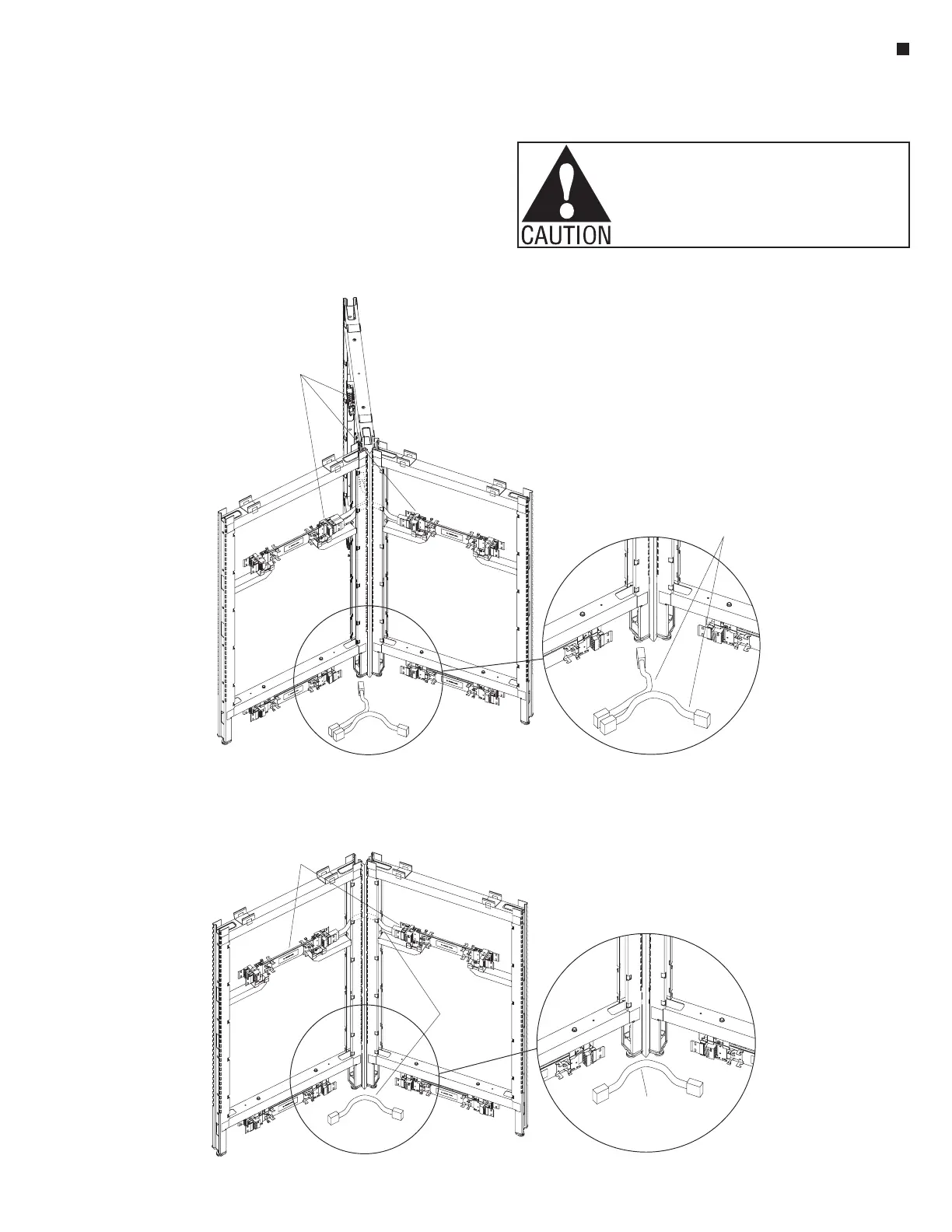

Figure 8-Horizontal Intersection 10-Wire Panel-to-Panel Jumpers, 15 /”Length
(3-Way 120 , Corner Panel Frame Intersection shown)
1
2
°
10-wire rigid
wireways
intersection 10-wire
panel-to-panel
jumpers (horizontal)
(15 / length)
1
2
”
Figure
9-Horizontal Intersection 10-Wire Panel-to-Panel Jumpers, 15 /”Length
(2-Way 120 , Corner Panel Frame Intersection shown)
1
2
°
10-wire rigid
wireways
intersection
10-wire
panel-to-panel
jumpers
(horizontal)
(15 /”length)
1
2
intersection
10-wire panel-to-panel
jumper (horizontal)
(15 /”length)
1
2
