KI Unite Panel System - 72 Panel Frame - Split Tile Installation

Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
49
Unite
®
Panel System - Tile Installation
Assembly Instructions
72” Panel Frame - Split Tile
Installation
Note: End-of-run trim clips must
be installed on end-of-run panel
frames prior to installing tiles. If
end-of-run trim clips are not
installed on the end-of-run
frames, reference "End-of-Run
Trim Clip Installation"
instructions on page 15 or
"End-of-Run Trim Clip Installation
on Panel Frame Change-of-
Height Assembly" instructions
on page 16.
Note: Unite 72” panel frames,
when fully assembled incorporate
two 36” wide tiles mounted to
frame components with a light
shield at the center of the 72”
panel frame. Beltway-height
electrical components must be
installed prior to light shield
installation.
1. At the location of the 72” panel
frame where a standard height,
or lifted-height tile will rest,
install a “bottom trim channel”
(72” length) into the “vertical
posts”. Position the bottom trim
channel as illustrated, and hook
the top lip into the bottom P-slot
notches in the vertical posts while
also hooking the top lip over the
72” panel frame support bracket
(Figure 6).
bottom
trim channel
(72 length)”
bottom
trim channel
(72 length)”
72 panel frame
(standard shown)
”
72 panel frame
support bracket
”

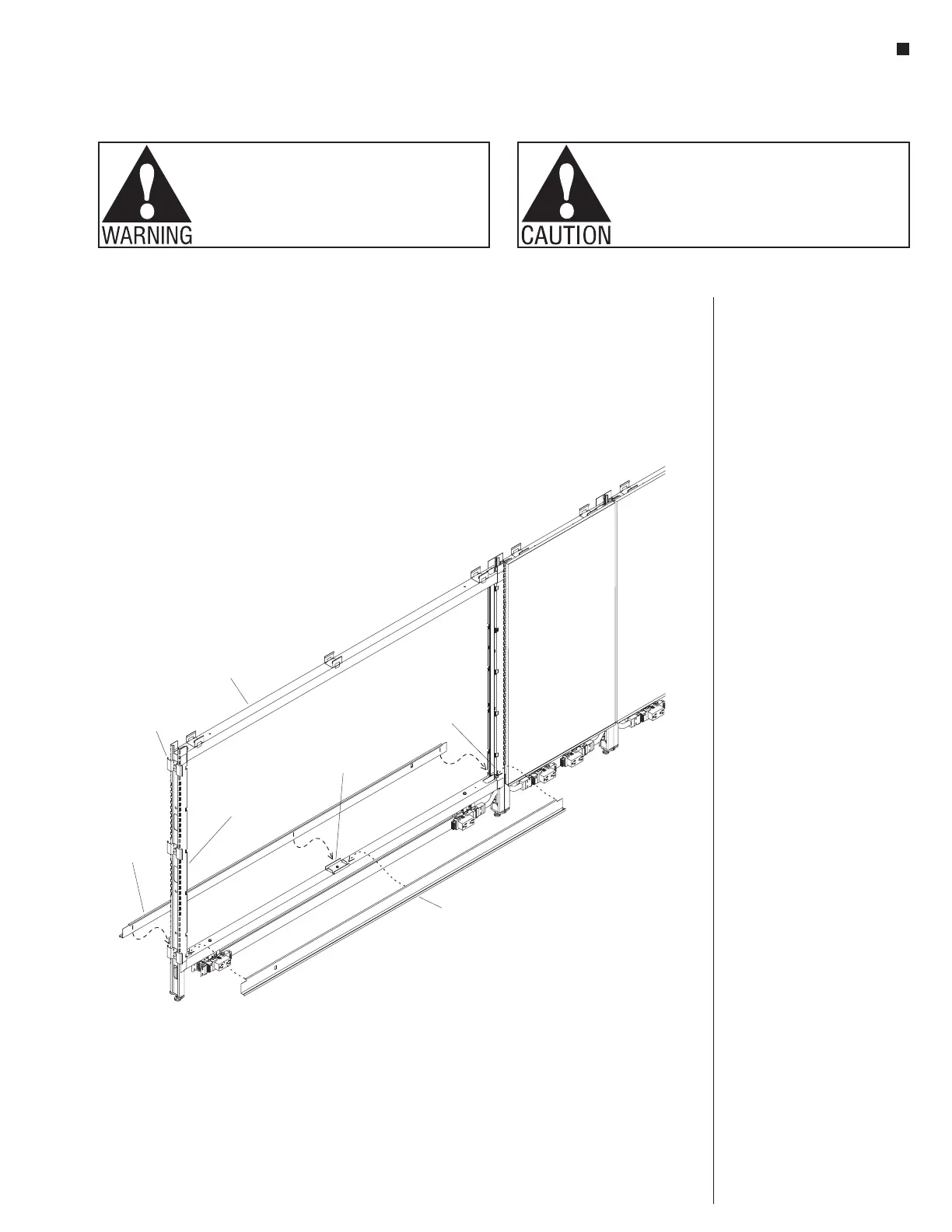

Figure 6-72 Panel Frame, Bottom Trim Channel”
panel frame
vertical post
panel frame
vertical post
end-of-run
trim clip
Rare Earth Magnets used with this product. The magnets can
be harmful to pacemaker wearers and others with medical
devices. Pacemaker wearers should stay at least one
foot away from the steel tiles.
