KI Unite Panel System - Page 50

50
Unite
®
Panel System - Tile Installation
Assembly Instructions
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
72” Panel Frame - Split Tile
Installation (cont.)
Note: Split-tile light shields
have a break-off flange located at
the bottom (Detail I). This flange
must be removed for use with
standard, or lifted base split tile
applications, but the tile must be
kept in tact for tile-to-floor panel
frame installations.
2. For each 72” panel frame
(standard, or lifted base), take two
split-tile light shields and remove
the lower break-off flange from
each by bending back-and-forth
along the thin tabs until it breaks,
then discard the excess bottom
flange (Detail I).
3. Center and set the bottom edge of
each light shield into the outside,
top of the bottom trim channel
as illustrated at each side of the
panel frame. Use the panel frame
support bracket to align both
light shields directly on center.
Make certain that the light shield
is positioned to the outside of
the trim at both sides, such that
the notches in the bottom of the
light shield capture the top of the
bottom trim channel (Figure 7).
split-tile light shield
(break-off flange
removed)
split-tile light shield
(break-off flange
removed)

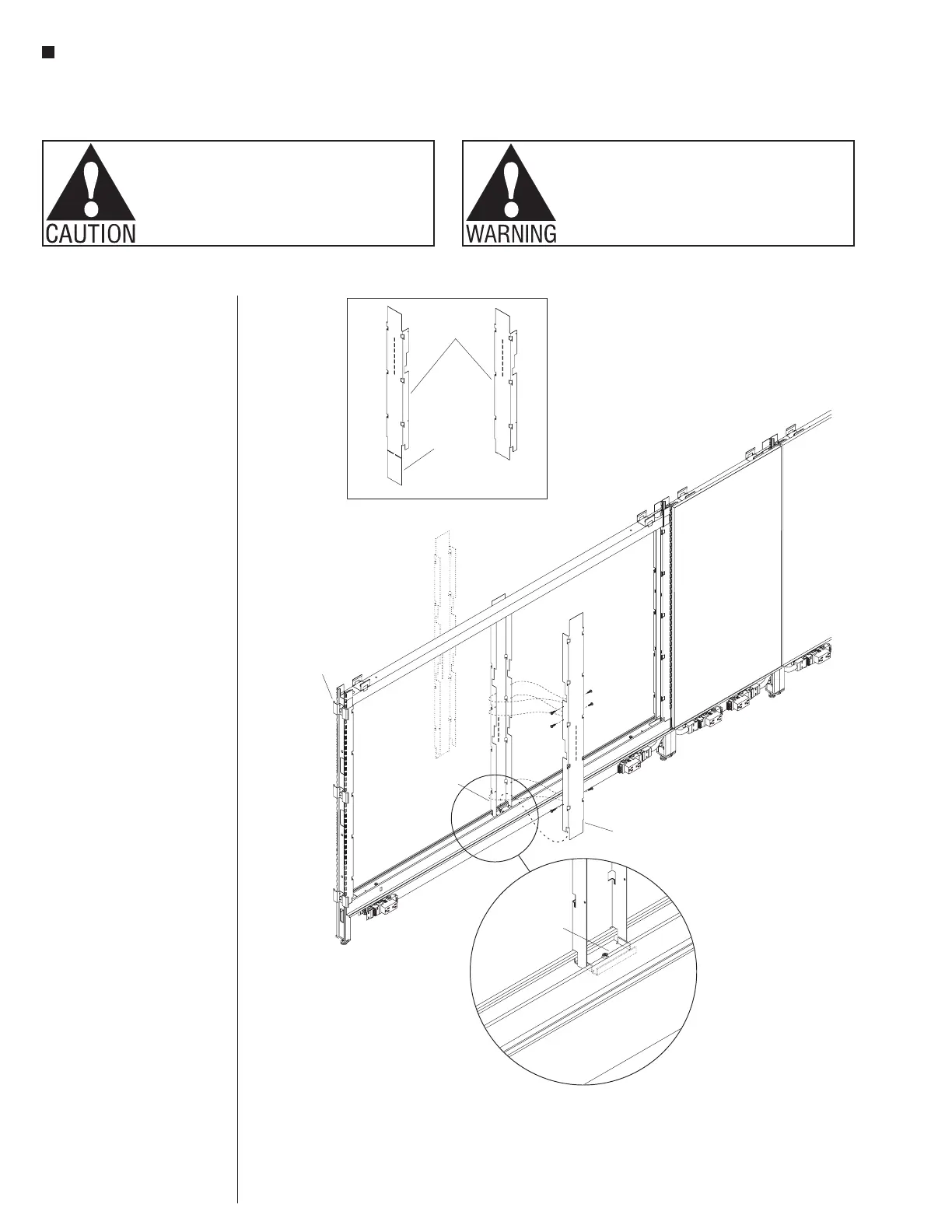

Figure
7-72 Panel Frame, Split-Tile Light Shield
”
72 panel frame
support bracket
”
end-of-run
trim clip
Rare Earth Magnets used with this product. The magnets can
be harmful to pacemaker wearers and others with medical
devices. Pacemaker wearers should stay at least one
foot away from the steel tiles.
split-tile
light shields
break-off
flange
Detail I
