Unite
®
Panel System - Electrical Installation
Assembly Instructions
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
New York City infeed
mounting bracket
alignment hole
(enlarge to /)
1
4
”
mark & drill
hole to /
1
4
”
New York City base
power infeed assembly
(upside down)

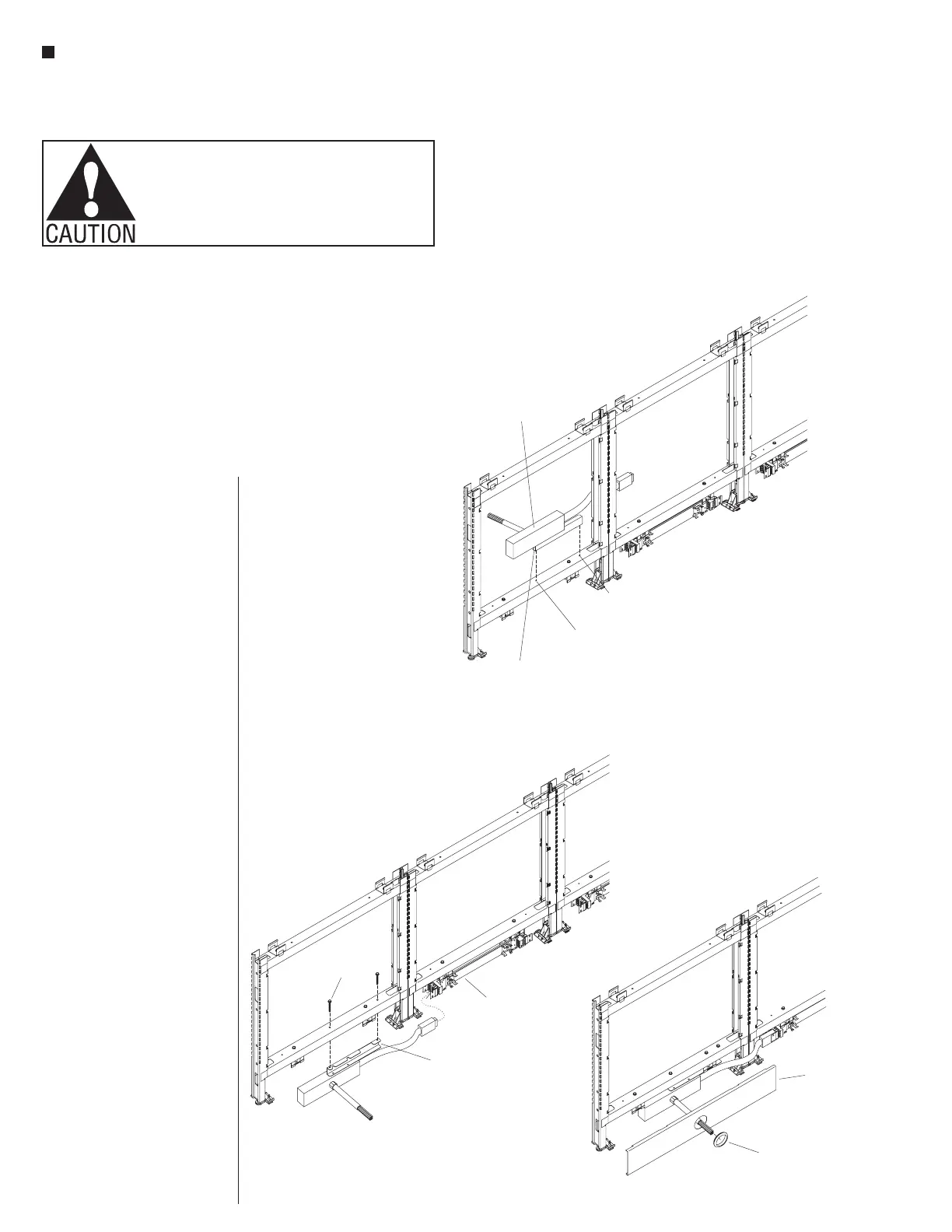

Figure 14-New York City Base Power Infeed
New York City Base Power
Infeed Installation
Note: All panel frames must
be mechanically connected
together, with all 10-wire rigid
wireways and panel-to-panel
power connections appropriately
installed before adding power
infeed, or connecting infeed to
power source.
1. One mounting hole must be
marked then drilled, and another
must be enlarged for mounting
of the New York City infeed
mounting bracket to the lower
horizontal frame rail. To create
mounting holes, first position
the New York City base power
infeed assembly upside down on
top of the lower horizontal rail as
illustrated and align the mounting
hole of the bracket to the
pre-drilled hole closest the frame
side rail. Be sure the infeed
assembly is centered onto the
horizontal rail, then use the
New York City infeed mounting
bracket as a guide and mark the
second mounting hole to the
lower horizontal rail. Punch to
center the hole location, then drill
a hole
1
/
4
” diameter. At the first,
alignment hole location, drill that
11
/
64
” hole out to
1
/
4
” (Figure 14).
2. Turn the New York City base
power infeed right side up as
illustrated, and position under the
lower horizontal frame rail. Insert
and tighten two
1
/
4
-20 x 2
1
/
4
”
thread-forming screws through
the horizontal frame and into the
New York City infeed mounting
bracket (Figure 15).
3. Route the plug-end of the power
infeed around the frame vertical
rails, and press the plug into the
adjacent panel rigid wireway,
snapping in to secure (Figure 15).
Note: It is easier to plug the
power infeed into the rigid
wireway if the wireway is
disconnected from the wireway
mounting brackets first.
4. Install the unique New York City
infeed base raceway trim as
illustrated, and install rubber
grommet (Figure 16).
Note: The power infeeds are to
be connected to the power source
by a qualified electrician who
must follow all state and local
codes at the building site and
check the electrical integrity of
the finished system.
New York City infeed
mounting bracket
10-wire
rigid wireway
Figure 15-New York City Base Power Infeed
11
/ -20 x 2 /
TF screw
44
”
Figure
16-New York City Base Power Infeed
New Y
ork City infeed
base raceway trim
rubber
grommet
