Unite
®
Panel System - Trim Installation
Assembly Instructions
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
63
Vertical End-of-Run &
Change-of-Height Vertical Trim
Installation
Note: End-of-Run vertical &
end-of-run change-of-height
vertical “snap-on” trim is the
last trim to be installed to panel
frames. Vertical change-of-height
“snap-on” trim is installed
differently than “hang-on”
intersection/end-of-run trim.
Change-of-height trim snaps
onto “end-of-run trim clips” and
has a specific top and bottom,
so requires correct orientation to
attach properly.
1. Begin installation at the end of
the panel frame with the longer,
end-of-run vertical trim. The metal
end cap should be snapped into
position at this time. Insert metal
end cap vertically into the top of
the end-of-run vertical trim, then
position the trim and cap such
that the horizontal tabs of end cap
slide horizontally into the slots in
the top cap (Figure 11).
2. Hook one side of the end-of-run
vertical trim onto the end-of-run
trim clips. Rotate the hooked trim
towards the un-clipped side, up
against the trim clips and snap
the trim into place by striking the
loose side with a rubber mallet
or the palm of your hand. Ensure
that the clips are fully engaged to
prevent trim from falling off. Make
sure the change-of-height top cap
is snapped into place (Figure 11).
3. Next, orient the appropriate
“change-of-height vertical in-line
trim” with the top up, so it aligns
properly with the installed end-of-
run trim clip. Correctly positioned,
the longer tabs of the trim will be
to the top, and the smaller tabs
with paint-hanging hole will be
at the bottom. The bottom of the
upper tabs will rest on the top
edge of the end-of-run trim clip
(Figure 11).
4. Hook one side of the end-of-run
change-of-height trim onto the
end-of-run trim clip. Rotate the
hooked trim towards the
un-clipped side, up against the
trim clip and snap the trim into
place by striking the loose side
with a rubber mallet or the palm of
your hand. Ensure that the clip(s)
are fully engaged to prevent trim
from falling off (Figure 11).
5. Finally, orient the “metal end cap”
as illustrated and insert the tabs
of the cap into the narrow slots in
the top cap. Mate the dead-end
intersection cap into the top of the
end-of-run height change trim and
snap the top cap into place at the
top of the panel frame (Figure 11).
Detail H-Intersection Caps
48.0093
intersection cap
in-line
48.0096
intersection cap
dead end, 120°
48.0094
intersection cap
3-Way
48.0097
intersection cap
2-Way, 120°
48.0095
intersection cap
4-Way
48.0098
intersection cap
3-Way, 120°
48.0090
metal end cap
48.0091
intersection cap
dead end
48.0092
intersection cap
90°
(upper)
top cap
(change-of-height)
change-of-height
vertical in-line trim

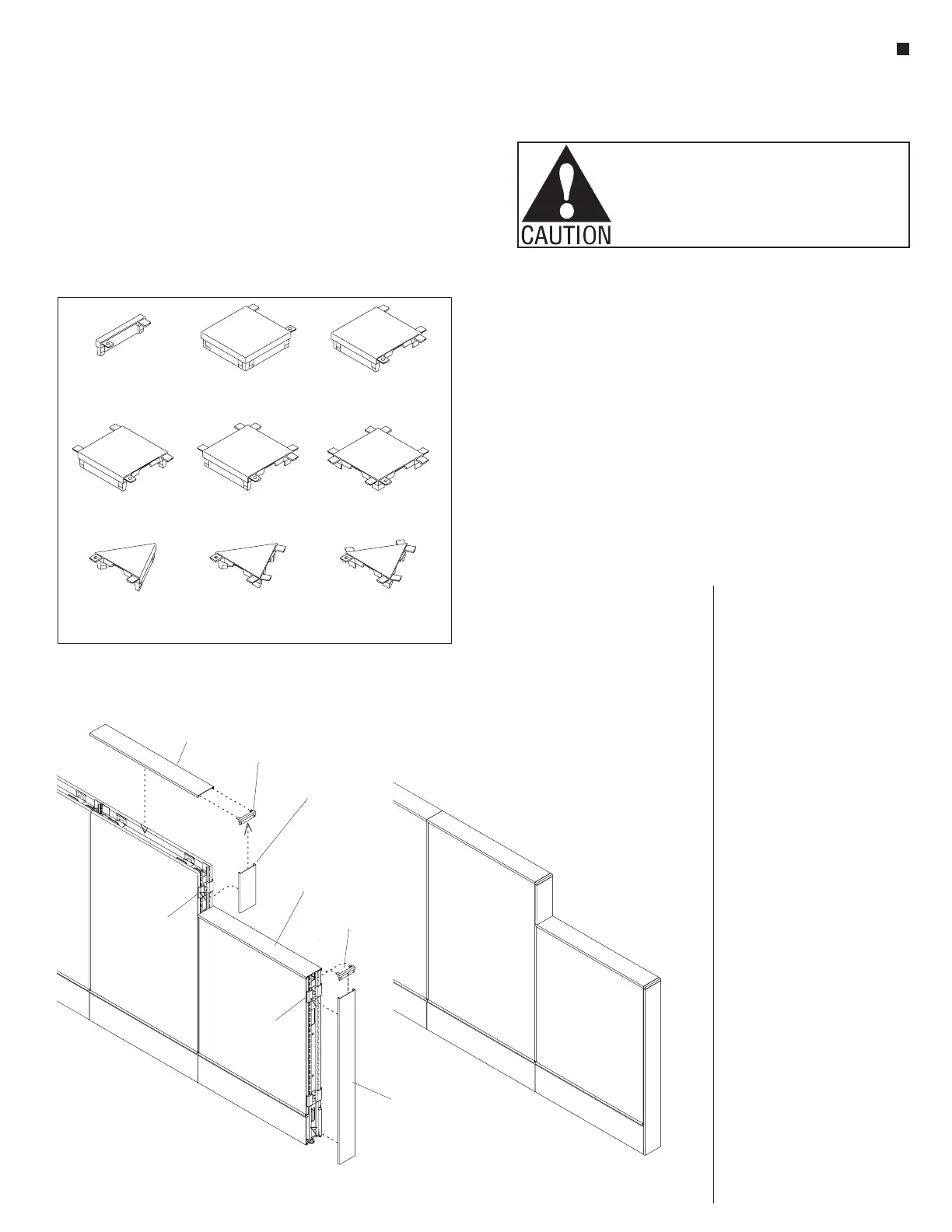

Figure 11-Vertical End-of-Run & Change-of-Height Vertical Trim
end-of-run
trim clip
end-of-run
vertical trim
end-of-run
trim clip
end-of-run
intersection cap
end-of-run
intersection cap
