Unite
®
Panel System - Tile Installation
Assembly Instructions
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.

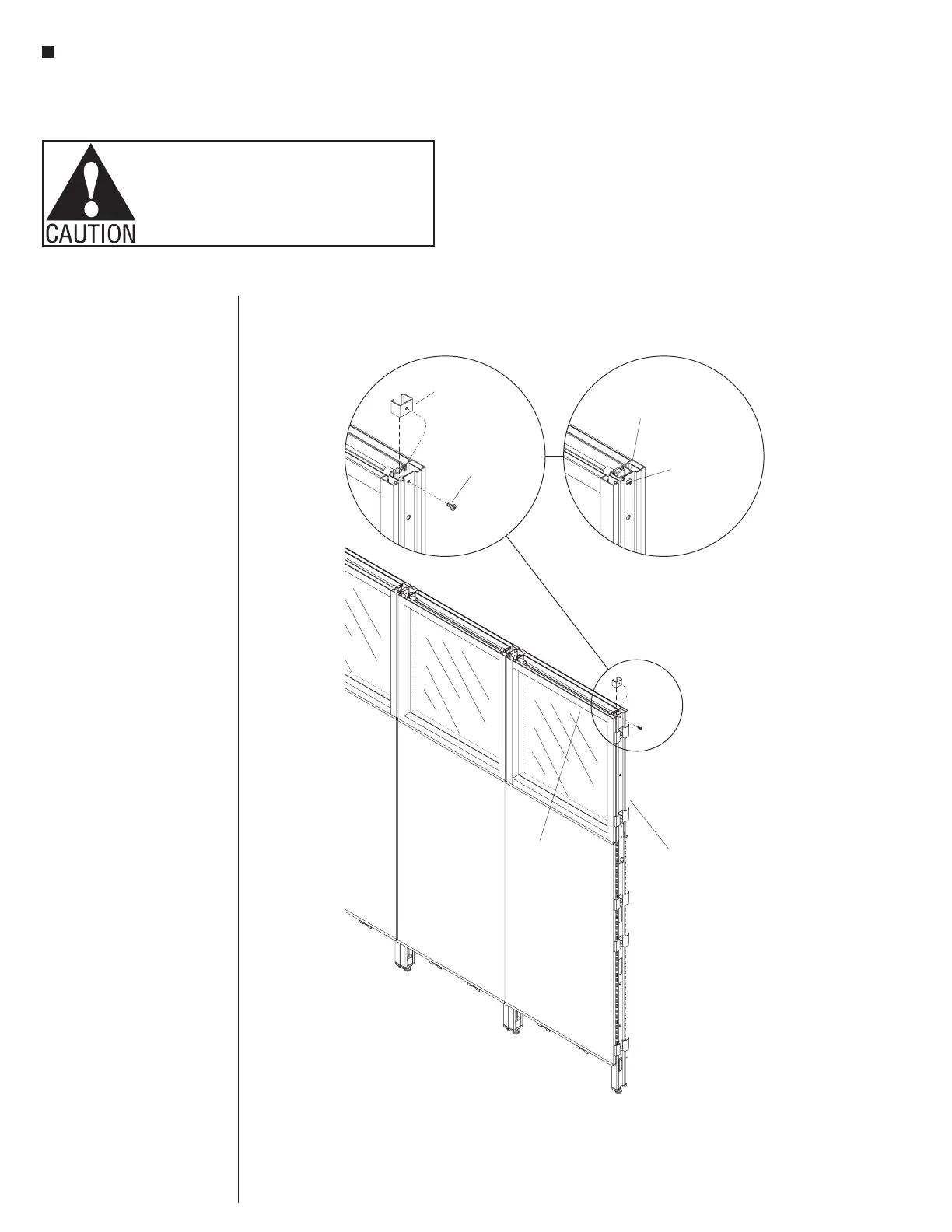

Figure 11 - Segmented Panel Frames with Stacking Sections
(aluminum frame)
vertical
stacking posts
stacking
section
metal
spacer
11
/ -20 x /”
pan-head tapping
screw
42
metal
spacer
11
/ -20 x /”
pan-head tapping
screw
42
Segmented Panel Frames with
Stacking Sections (aluminum
frame) - Assembly (cont.)
4. Segmented panel frames at
end-of-run or at change-of-
height in-line panels require a
metal spacer and screw to secure
the end stacking section to the
vertical stacking posts. Position
and hold one metal spacer
between the top vertical member
of the end-of-run vertical stacking
posts, and the top frame. Align
with the mounting holes of both,
then insert and tighten one
1
/
4
-20 x
1
/
2
” pan-head tapping
screw (Figure 11).
