ASSEMBLY INFORMATION
9
135
EN

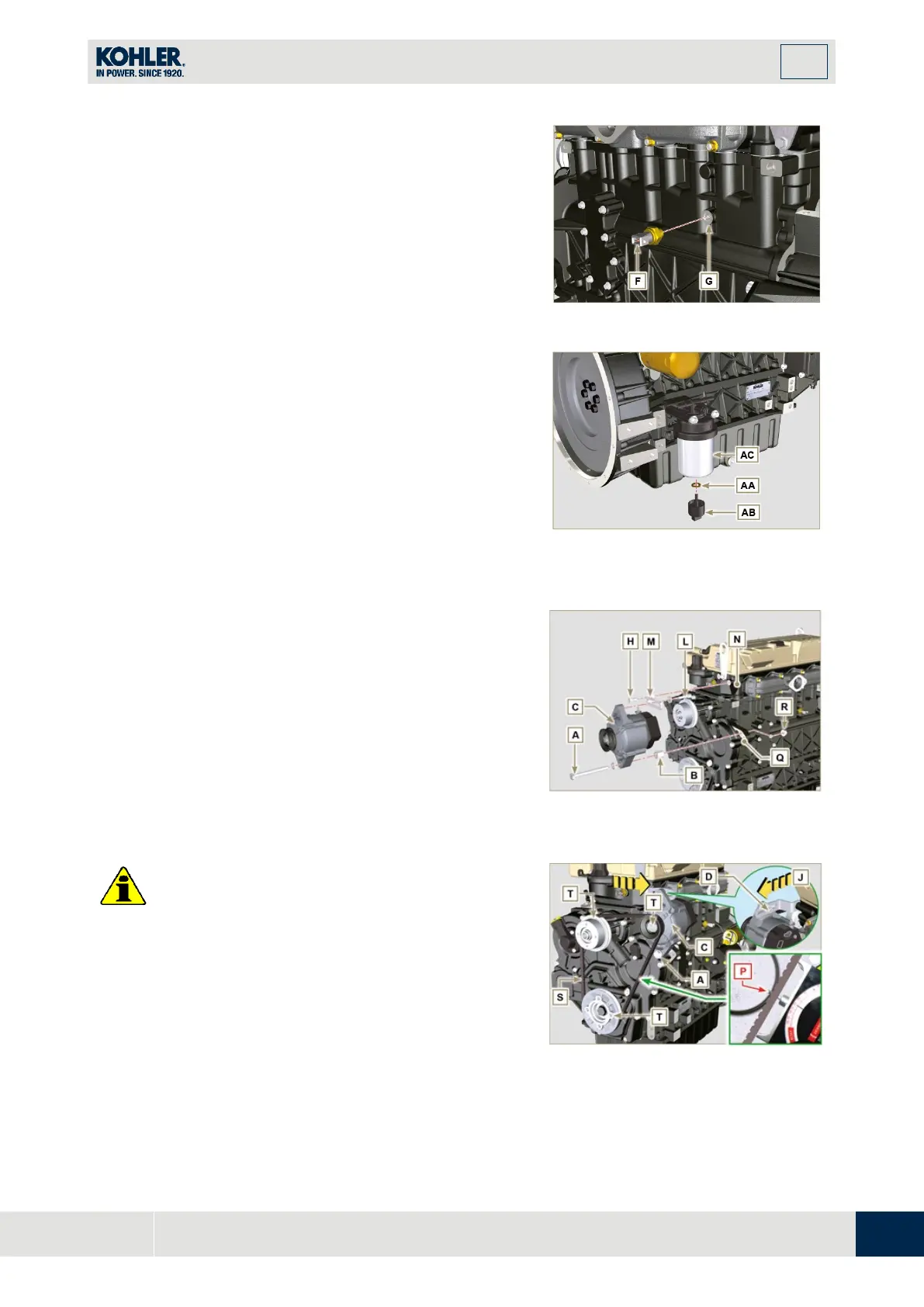

9.14.1.2 Oil pressure switch
1.
Clamp the oil pressure switch F on the crankcase G
(tightening torque at 35 Nm).
9.14.1.3 Fuel filter water detection sensor
1.
Lubricate and insert the gasket AA on the fitting AB.
2.
Fix the sensor AB onto the cartridge AC (tightening
torque of 5 Nm).
Fig 9.85
1.
Mount the bracket M on the head N using the screw
H and relative washer, without clamping it.
2.
Fit the alternator with the screw A with the relative
washer and spacer B.
3.
Mount the alternator C on the crankcase Q tightening
the nut R up to the stop without clamping it.
4.
Mount the screw L and relative washer on the
a
lternator C, without clamping it.
5.
Clamp screw H (tightening torque of 25 Nm).
Fig 9.86
•
The belt S must always be replaced every time it is
assembled, even if it has not reached the scheduled
hours for replacement.
6.
Insert the belt E on the pulleys T.
7.
Push the alternator C in the direction of the arrow J.
8.
While tensioning the alternator C, first clamp screw D
(tightening torque at 25 Nm) and then screw A
(tightening torque at 69 Nm [thread M10] - 40 Nm
[thread M8]).
Fig 9.87
