INFORMATION ABOUT OPTIONAL
COMPONENTS
11
153
EN
2.
Remove the centring ring C and the relativ
e
g
askets
3.
Undo the screws N.

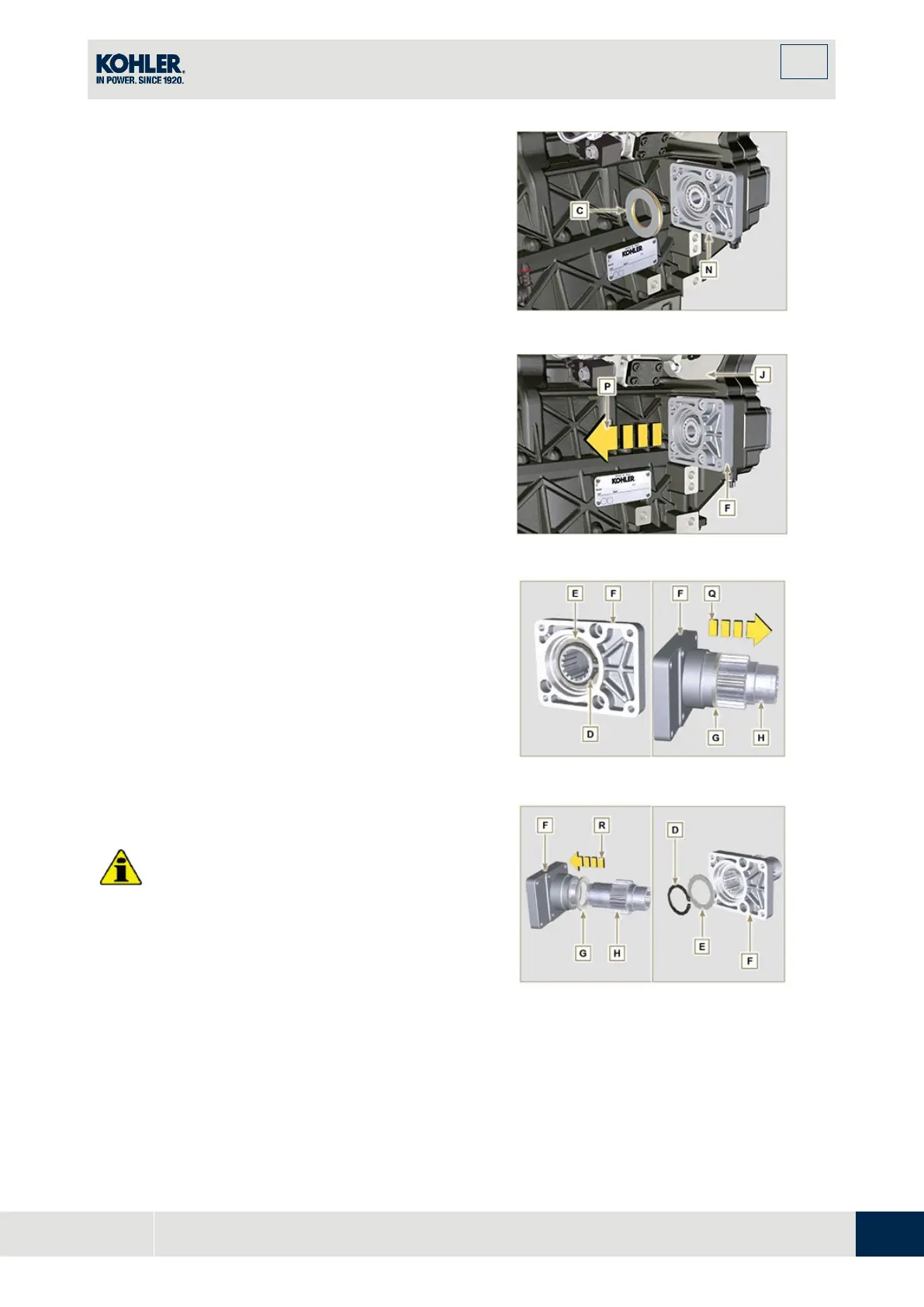

Fig 11.14
4.
Remove the flange F with the components D, E,
G and H in the direction of the arrow P.
5.
Remove the gasket J.
Fig 11.15
6.
Remove the retainer ring D and the shoulder
washer E.
7.
Remove the gear H and the shoulder ring G
from the flange F in the direction of the arrow Q.
Fig 11.16
11.6.2 Assembly
Important
•
Always replace the gasket J after each
assembly.
•
Lubricate the gear H with oil.
•
It is mandatory to replace the screws N or apply
a few beads of Loctite 2701.
1.
Insert the gear H in the flange F in the directio
n
of
the arrow R inserting the shoulder ring G.
2.
Insert the shoulder ring E on the flange F and
cl
amp the gear H using the retainer ring D.
Fig 11.17
