11
INFORMATION ABOUT OPTIONAL
COMPONENTS
EN 160
6.

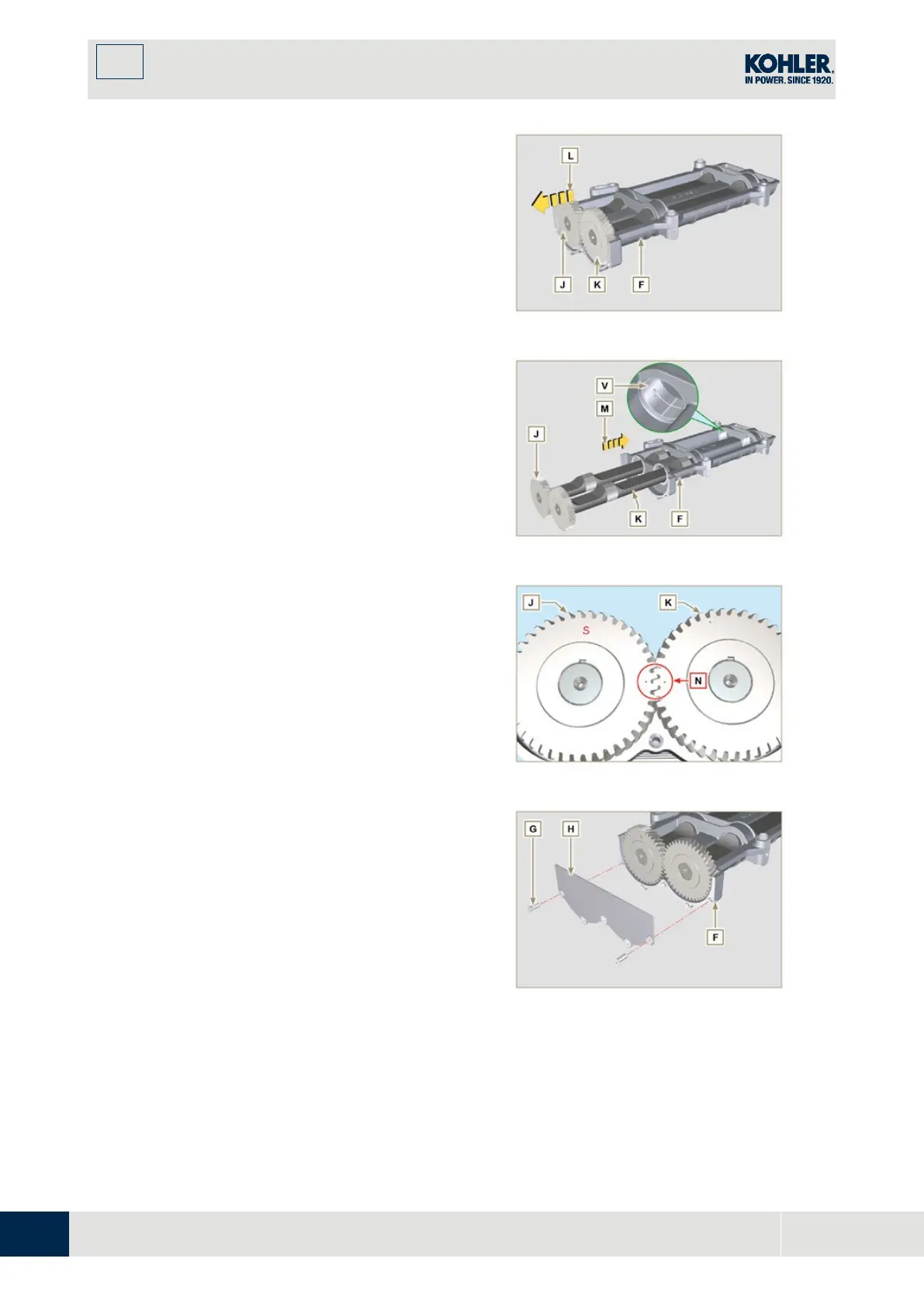

Remove the shafts J and K in the direction of
the arrow L from box F.
Fig 11.38
11.9.2 Assembly
1.
Lubricate the bushings V with Molikote grease.
2.
Insert the shafts J and K inside the box F in the
direction of the arrow M.
Fig 11.39
3.
Make sure that the shafts J and K inside the
box F observe the marks N and that the shaft J
with the gear indicated by letter " S " stampe
d
o
n it is on the left with respect to the box F.
Fig 11.40
4.
Secure the plate H using the screws G on the
box F (tightening torque at 8 Nm).
Fig 11.41
