TECHNICAL INFORMATION
EN 36
15
Air cleaner clogging
sensor connector
16
Earth connector

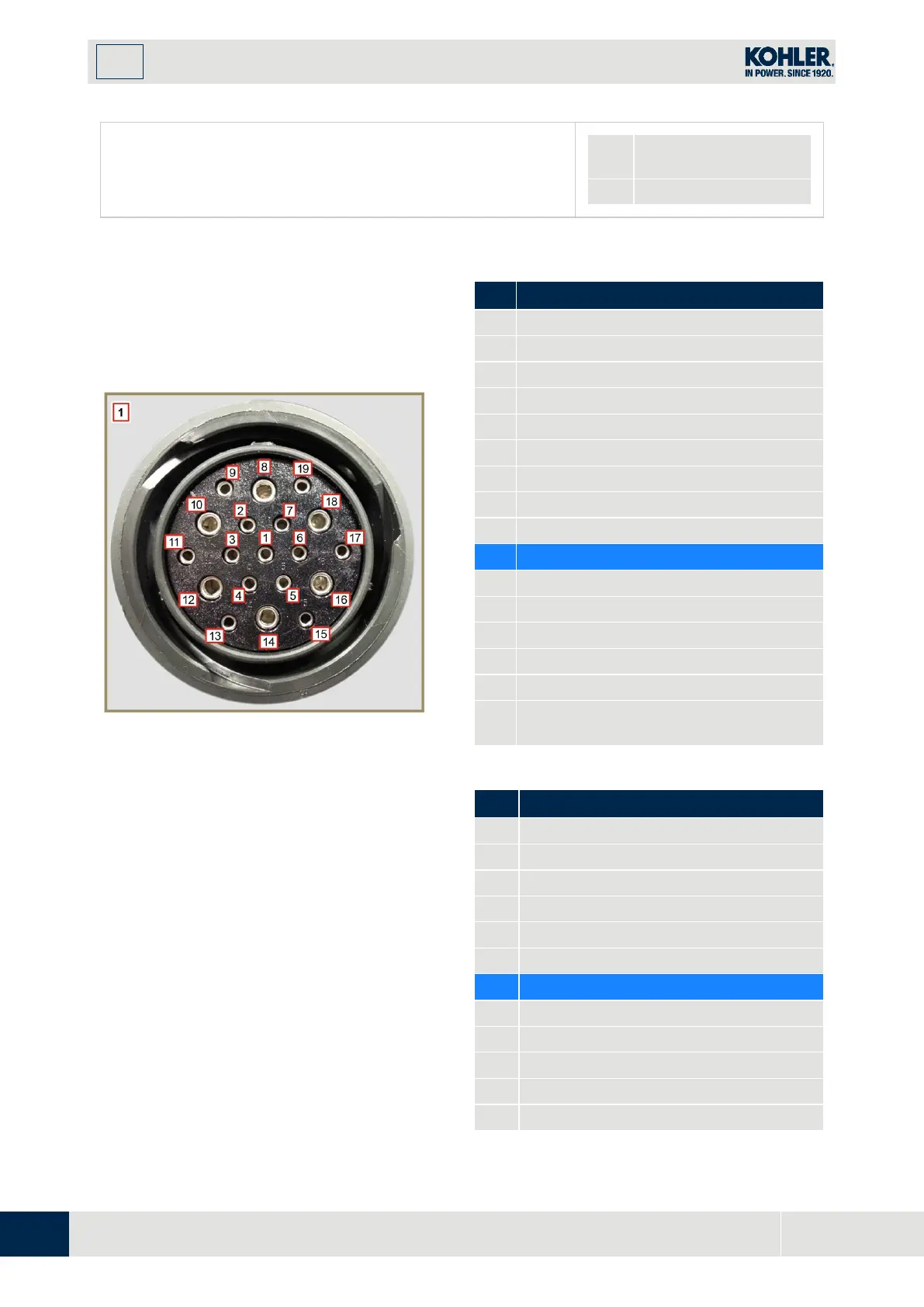

2.13.1.1 Connector panel on the
engine/machine
The connector is a female 19-way Deutsch type.
There is a list of all PIN connections in
Tab. 2.31.
Fig 2.26a
Tab. 2.31
PIN.
INLET SIGNALS TO THE PANEL
1
Oil pressure switch
2
Alternator indicator light
3
Coolant temperature warning light
4
Air cleaner clogging warning light
7
Air cleaner clogging warning light
9
Electro-Stop
13
Alternator (W)
14
Starter motor (+ 30)
15
Inlet indicator general alarm
PIN.
OUTLET SIGNALS FROM THE PANEL
5
Earth
6
IG excitation alternator (+15 wrench)
8
Starter motor (+ 50)
10
Grid heater (Relay)
11
Electric pump
18
Injection pump (Cold Start Advance - Fig.
2.39)
2.13.1.2 Accessories panel connector
Tab. 2.32
PIN.
INLET SIGNALS TO THE PANEL
2
Fuel filter (water detection sensor)
4
Radiator (coolant level sensor)
7
Outlet indicator general alarm
9
External Stop
15
Inlet indicator general alarm
1
Fuel tank (fuel level sensor)
PIN.
OUTLET SIGNALS FROM THE PANEL
5
Earth
6
Relay with 5A fuse (+ 15 wrench)
10
Grid heater (Relay)
13
Alternator (W)
17
Coolant temperature warning light
