10.3.4 Setup Wizard

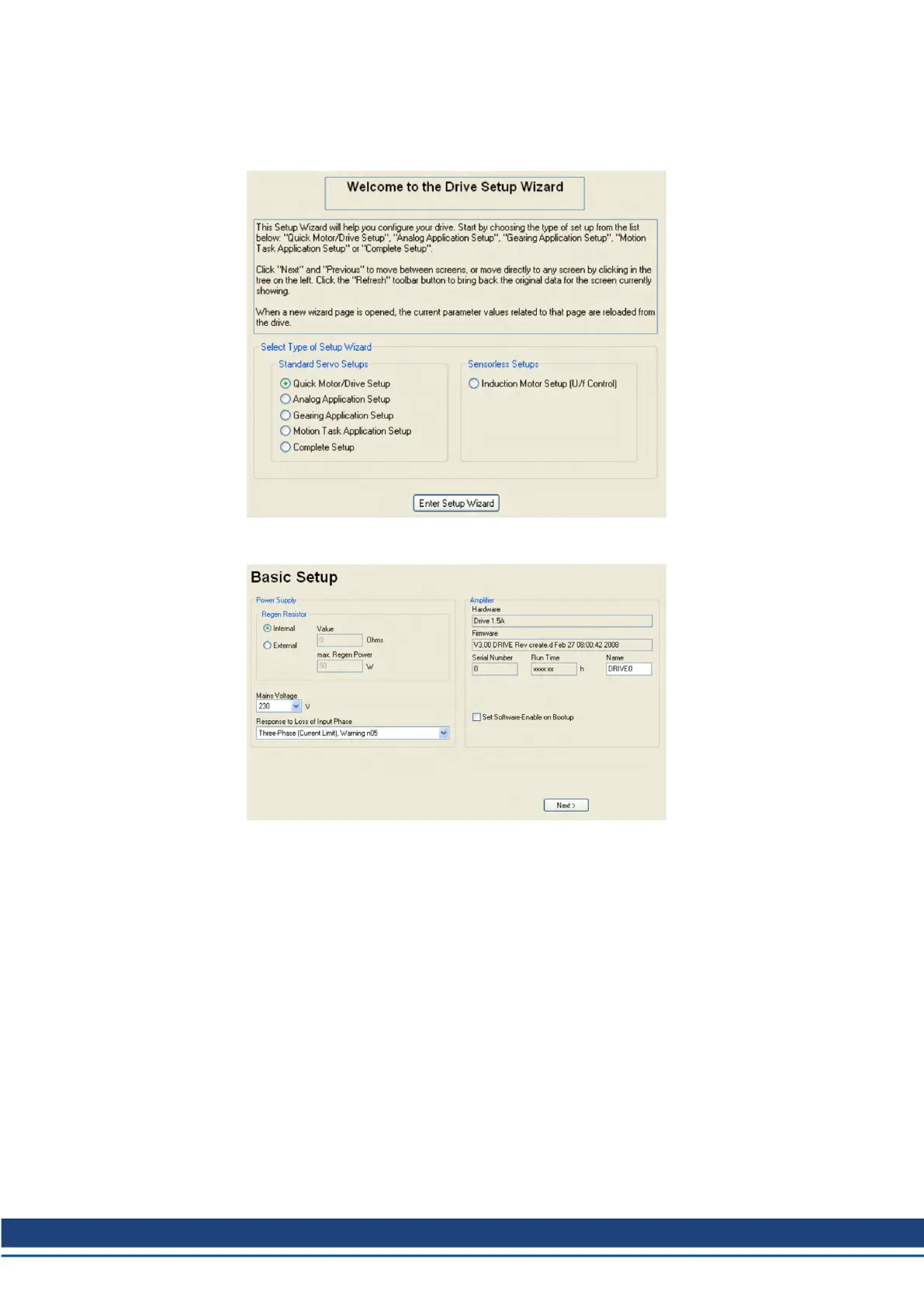

The Setup Wizard leads you through the necessary steps for configuring your servo amp-
lifier. Depending on the selected application, only the active screen pages are necessary.
For a quick setup / drive
test, select the setup type
"Quick Motor/Drive Setup".
Start the Wizard.
10.3.4.1 Basic Setup
Basic parameters are set
here.
Mains Voltage: Select actual mains voltage.
Response to Loss of Input Phase: Select Three-Phase operation. With three-phase oper-
ation you can select either warning "n05" or error "F19" in case of phase loss. The reaction
"F19" disables the output stage, "n05" is just a message.
Name: You can enter a name for the servo amplifier (up to 8 characters). This simplifies the
drive identification in the system.
Set Software Enable on Bootup: Do not select this option for the quick test.
Click NEXT.
