11.2.3.1.3 SSI Encoder (X5, X1)

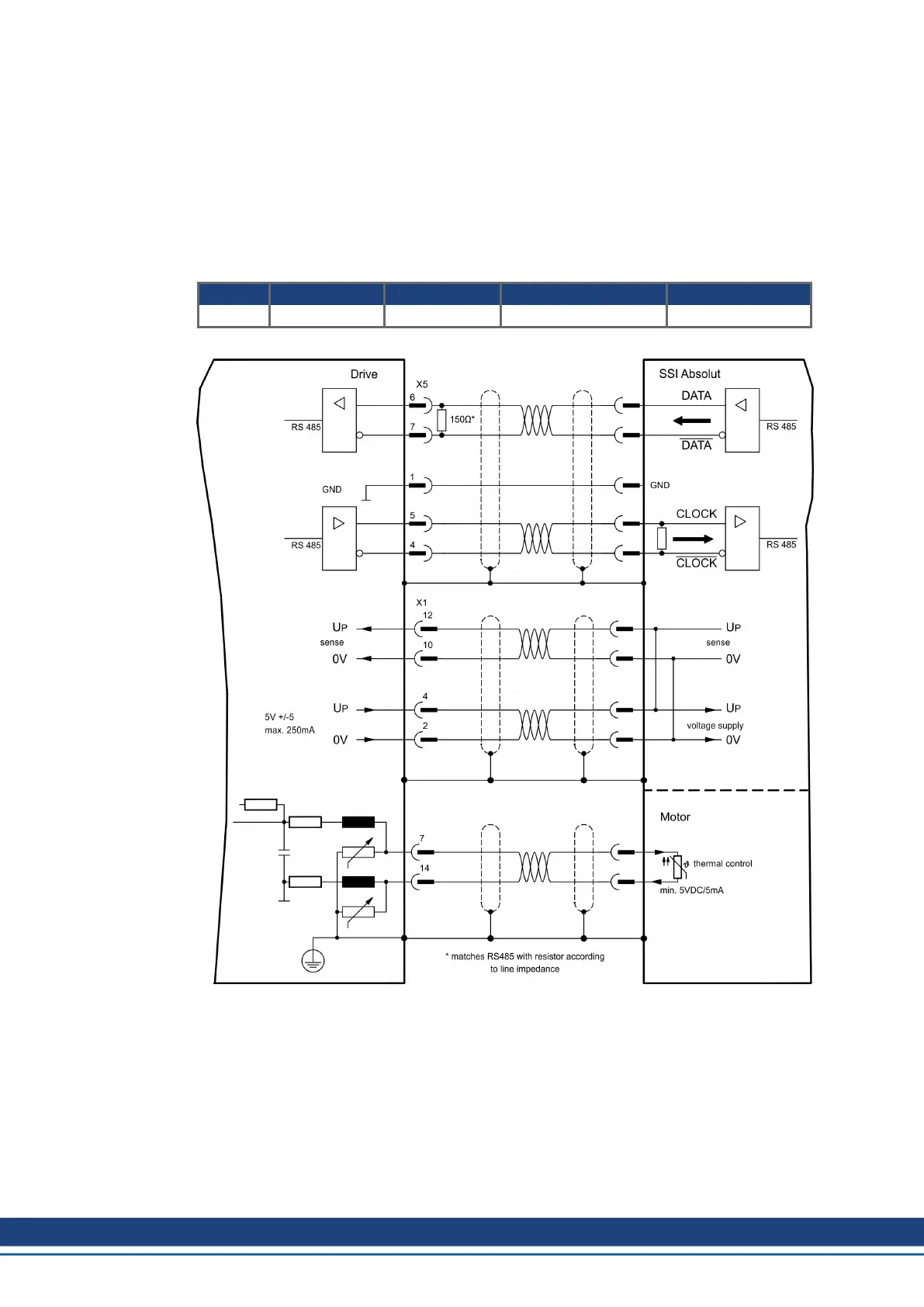

Wiring of a synchronous serial absolute-encoder as a feedback system (primary or sec-
ondary, (➜ # 75)). The signal sequence can be read in Gray code or in Binary (standard)
code.
The power supply for the encoder and thermal control in the motor is connected to X1 and
evaluated there.
If cable lengths of more than 50m are planned, please consult our customer service.
Frequency limit: 1.5 MHz
Type FBTYPE EXTPOS GEARMODE ENCMODE
SSI 9 5 5 0
Switch on supply voltage for the encoder at X1: set ENCVON to 1
