9.12.18 Hall sensors (X1)

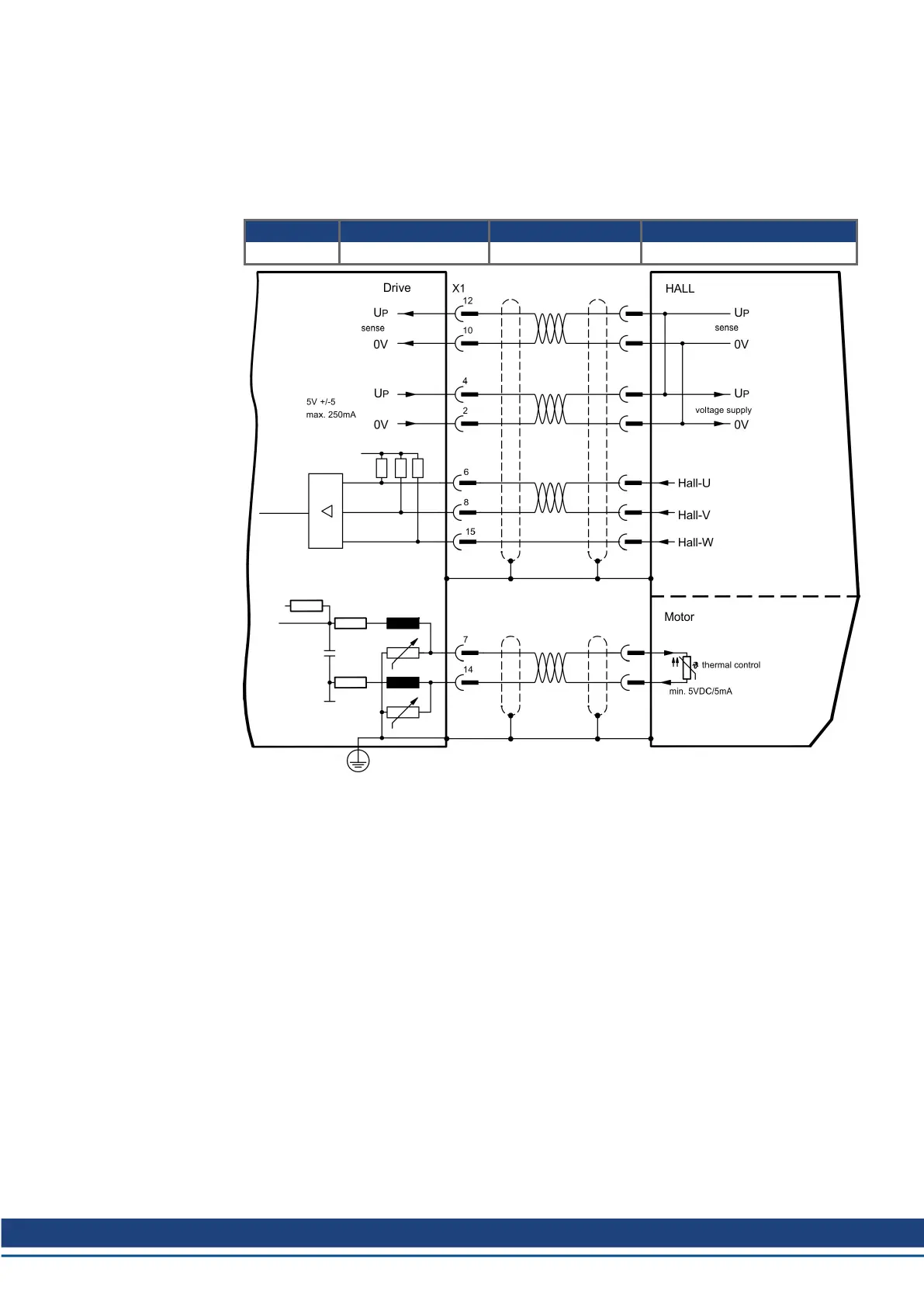

Wiring of Hall sensors as a feedback unit (primary, (➜ # 74)).
The thermal control in the motor is connected to X1 and evaluated there. If cable lengths of
more than 25 m are planned, please consult our customer service.
Frequency limit: 350 kHz
Type FBTYPE EXTPOS GEARMODE
Hall 11 - -
