S748-772 Instructions Manual | 9 Electrical Installation
9.12.5 Encoder with BiSS digital (X1)

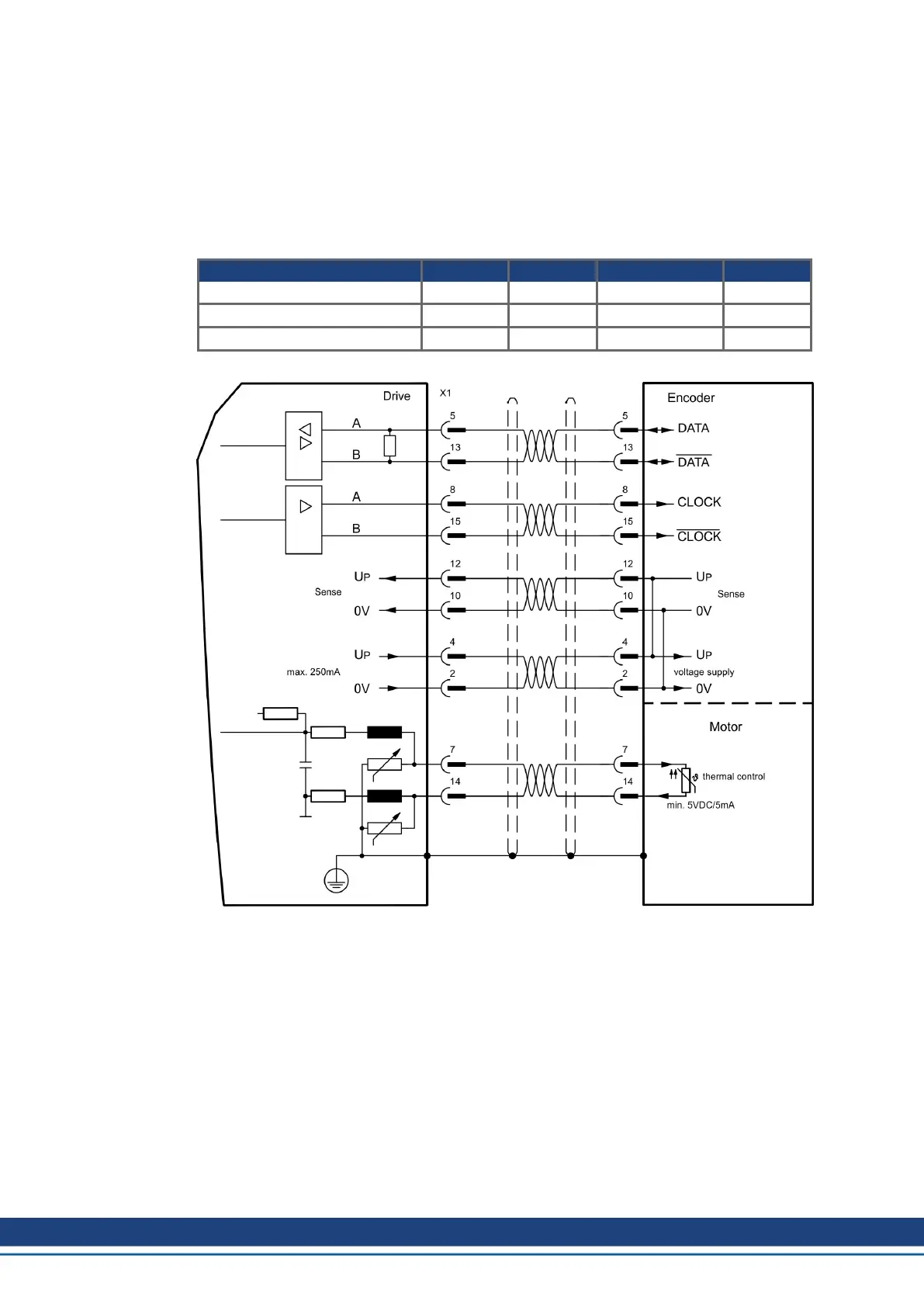

Wiring of a single-turn or multi-turn digital encoder with BiSS interface as a feedback system
(primary and secondary, (➜ # 74)).
The thermal control in the motor is connected via the encoder cable to X1 and evaluated
there. All signals are connected using our pre-assembled encoder connection cable. If cable
lengths of more than 50 m are planned, please consult our customer service.
Frequency limit: 1,5MHz
Type FBTYPE EXTPOS GEARMODE Up
5V digital (BiSS B) 20 11 11 5V +/-5%
12V digital (BiSS B) 22 11 11 7,5...11V
5V digital (BiSS C, Renishaw) 33 12 12 5V +/-5%
The pin assignment shown on the motor side relates to the AKM motors.
80 Kollmorgen | kdn.kollmorgen.com | July 2019
