Kollmorgen S700 Series

S748-772 Instructions Manual | 6 Package

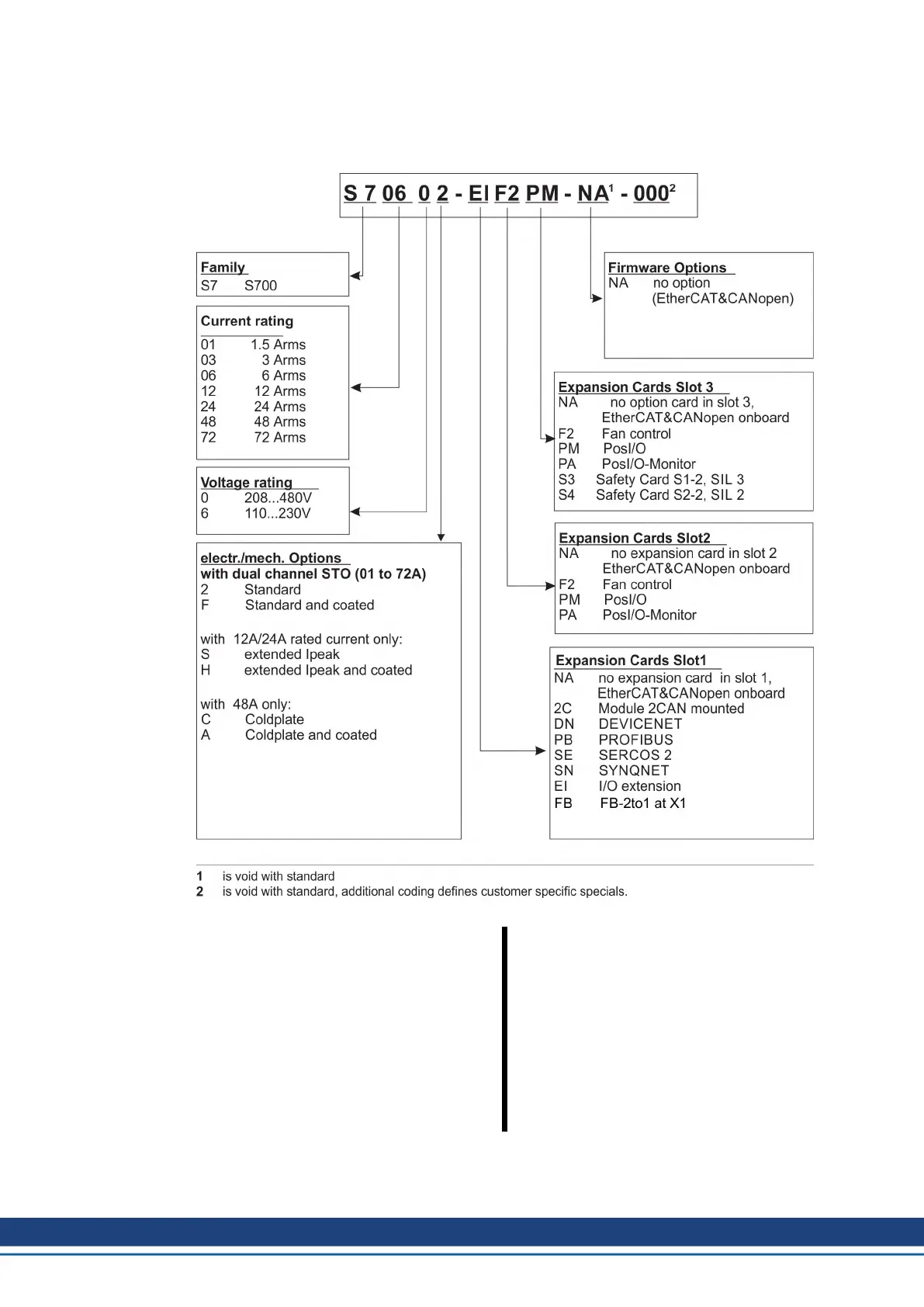

6.3 Part number scheme
Use the part number scheme for product identification only, not for the order process,
because not all combinations of features are possible, always.
Example 1: S77202-EIF2PM-NA-000 Example 2: S7480C-EIF2S4-NA-000
S7
72
0
2
EI
F2
PM
NA
000
S700
72A rated current
208...480V rated voltage
no electr./mech. option
I/O expansion card in Slot 1
Expansion card Controlled Fan in Slot 2
PosI/O expansion card in Slot 3
Standard (EtherCAT&CANopen onboard)
no customer specific specials
S7
48
0
C
EI
F2
S4
NA
000
S700
48A rated current
208...480V rated voltage
Coldplate
I/O expansion card in Slot 1
Expansion card Controlled Fan in Slot 2
Safety Card S2-2 in Slot 3
Standard (EtherCAT&CANopen onboard)
no customer specific specials
