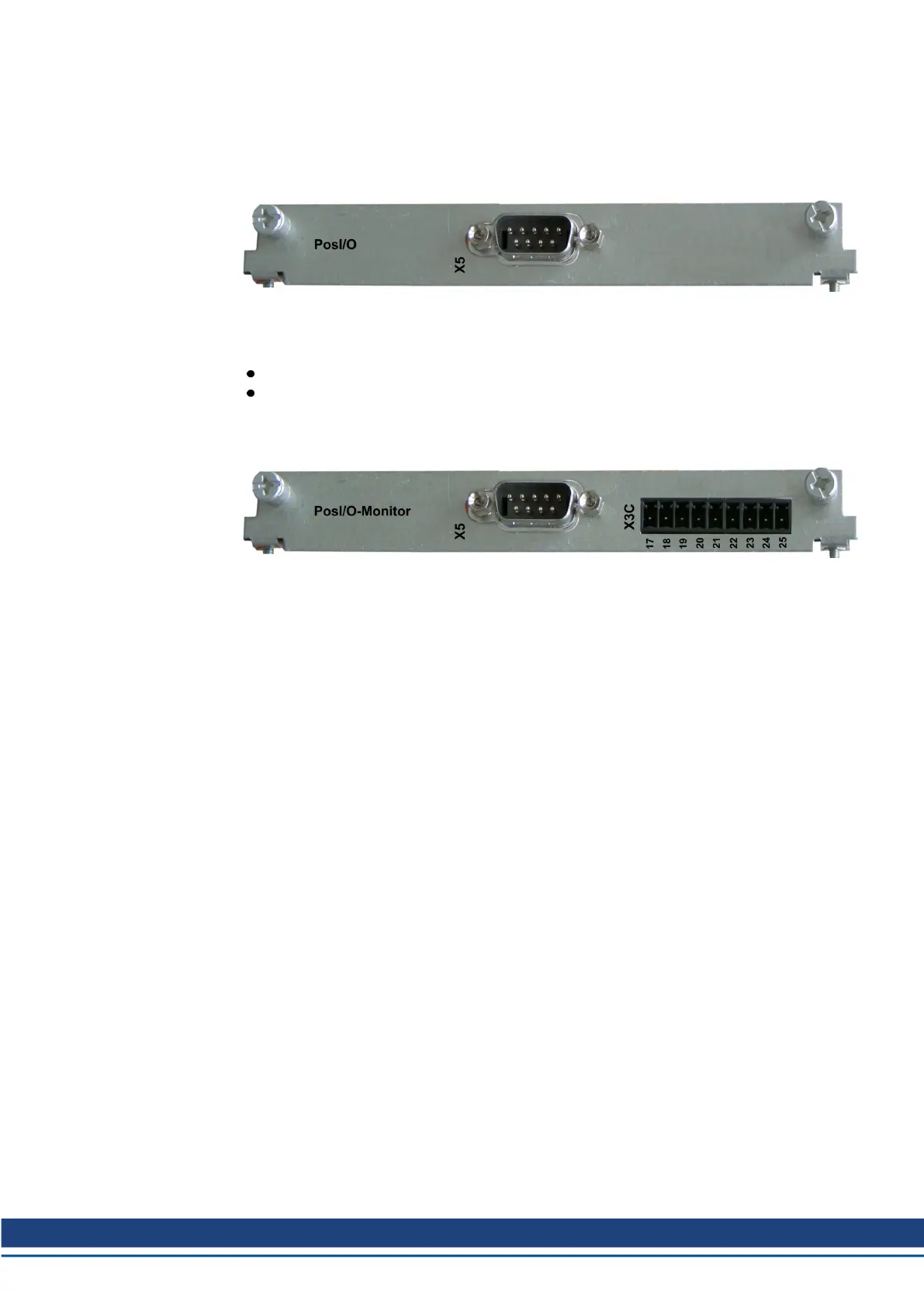

11.2.3 Expansion cards "PosI/O" & "PosI/O-Monitor"
The “PosI/O” and "PosI/O-Monitor" expansion card can be pushed into slot 2 or 3. The expan-
sion cards cannot be combined and the use of only one slot in time is allowed.
PosI/O
This expansion card provides an extra SubD connector (X5) with high-speed, bidirectional,
digital, 5 V inputs and outputs. The setup software can be used to preset various input and
output functions, e.g.:
Position encoder emulation (ROD- or SSI-compatible)
Input for high-speed 5 V RS485 signals (electronic gearing, master-slave operation)
PosI/O-Monitor
This expansion card provides the features of the PosI/O card plus an extra connector X3C
with analog +/-10V Inputs and Outputs (see chapter "Analog I/O" (➜ # 151)). Functionality
can be set with the setup software or with macro functions.
S748-772 Instructions Manual | 11 Expansions
Kollmorgen | kdn.kollmorgen.com | July 2019 143
