S748-772 Instructions Manual | 11 Expansions
11.1.3 Expansion card -PROFIBUS-
This section describes the PROFIBUS expansion card for the S700. Information on the range
of functions and the software protocol can be found in our manual “Communication Profile
PROFIBUS DP”.
The PROFIBUS expansion card has two 9-pin SubD sockets wired in parallel.
The supply voltage for the expansion card is provided by the servo amplifier.
11.1.3.1 Connection technology
Cable selection, cable routing, shielding, bus connector, bus termination and transmission
times are all described in the “Installation Guidelines for PROFIBUS-DP/FMS” from PNO,
the PROFIBUS User Organization.

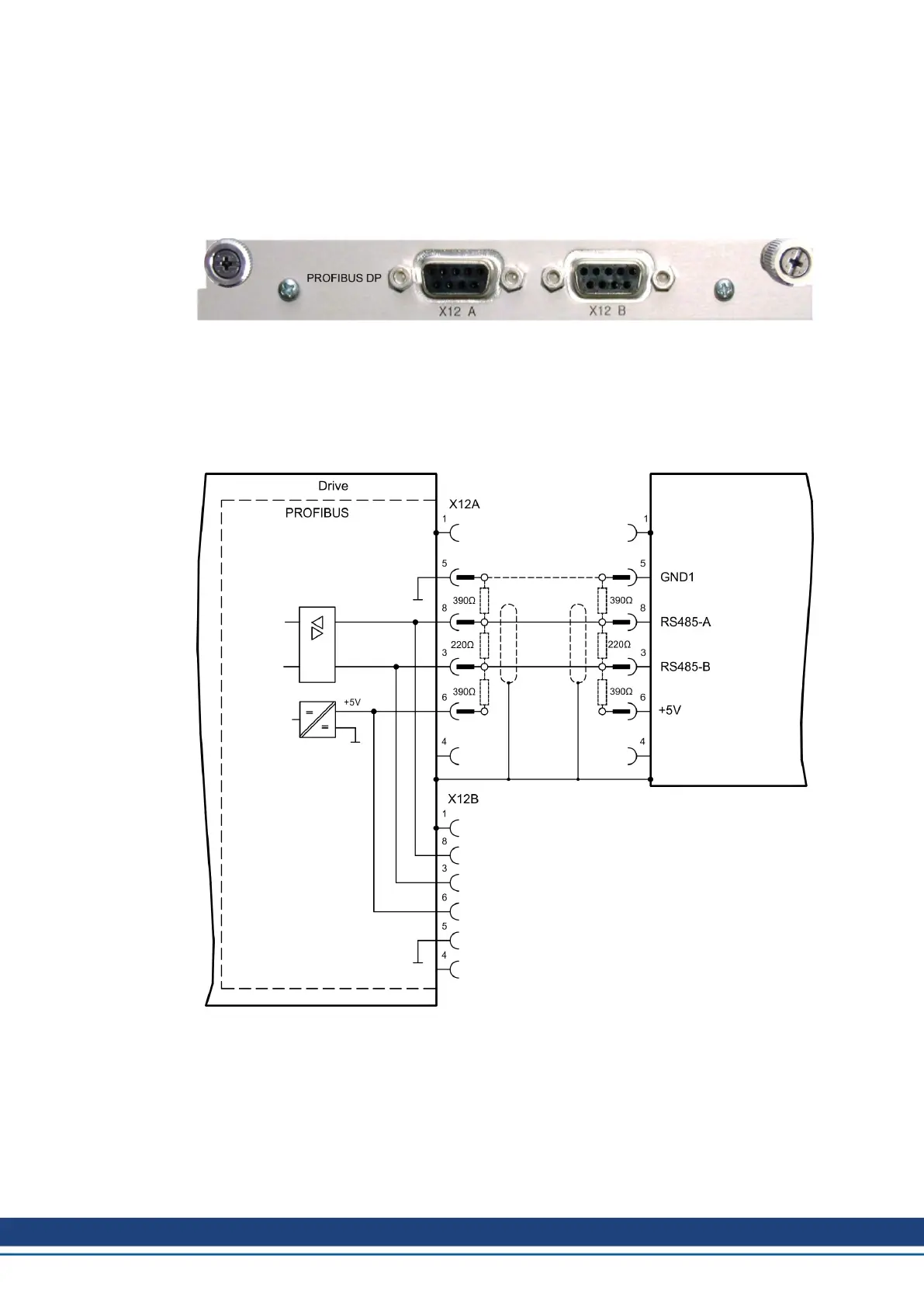

11.1.3.2 Connection diagram
130 Kollmorgen | kdn.kollmorgen.com | July 2019
