6 Package
6.1 Package supplied
When an amplifier from the S700 series is ordered (order numbers (➜ # 159)), the following
is supplied:
Servo amplifier S700 with shielding plate and shield clamps
Product Safety Guide S700 (printed)
Online documentation and setup software on CD-ROM
Mating connectors X3A, X3B, X4, X9A, X9B
The mating SubD connectors are not part of the package!
Accessories : (must be ordered separately, if required; description see accessories
manual)
Hybrid motor cable (prefabricated) for single cable connection
Motor cable as a cut-off length
Feedback cable (prefabricated)
or both feedback connectors separately, with the feedback cable as a cut-off length
External brake resistor BAS(U)
Communication cable to the PC (➜ # 104) for setting parameters from a PC
Power cable, control cables, fieldbus cables (as cut-off lengths)
Mains choke if mains voltage is more than 3% asymmetrical

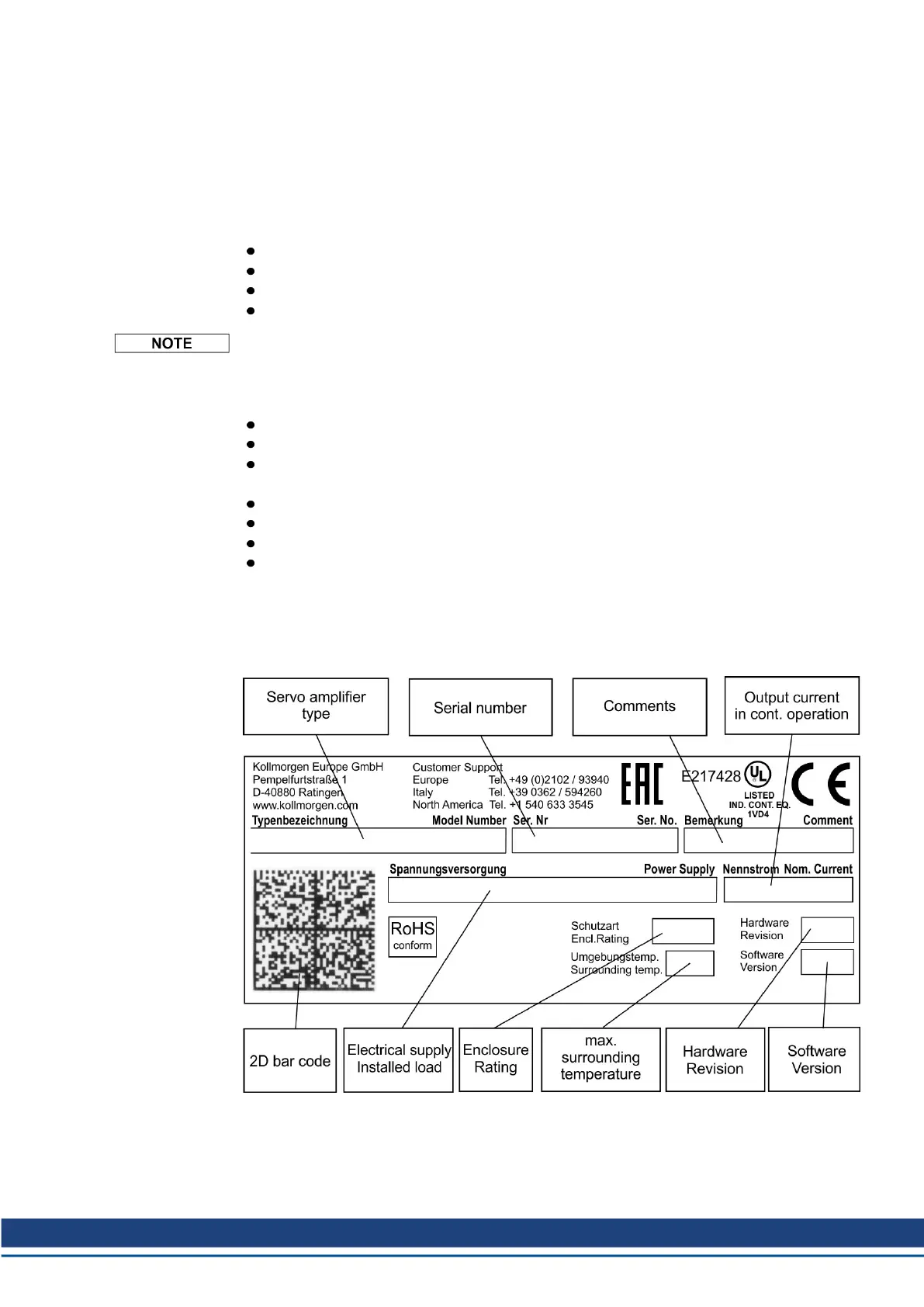

6.2 Nameplate
The nameplate is attached to the side of the servo amplifier. The information described below
is printed in the individual fields. Picture similar to the original nameplate.
S748-772 Instructions Manual | 6 Package
Kollmorgen | kdn.kollmorgen.com | July 2019 25
