11.2.3.1.4 Sine Encoder with SSI (X5, X1)

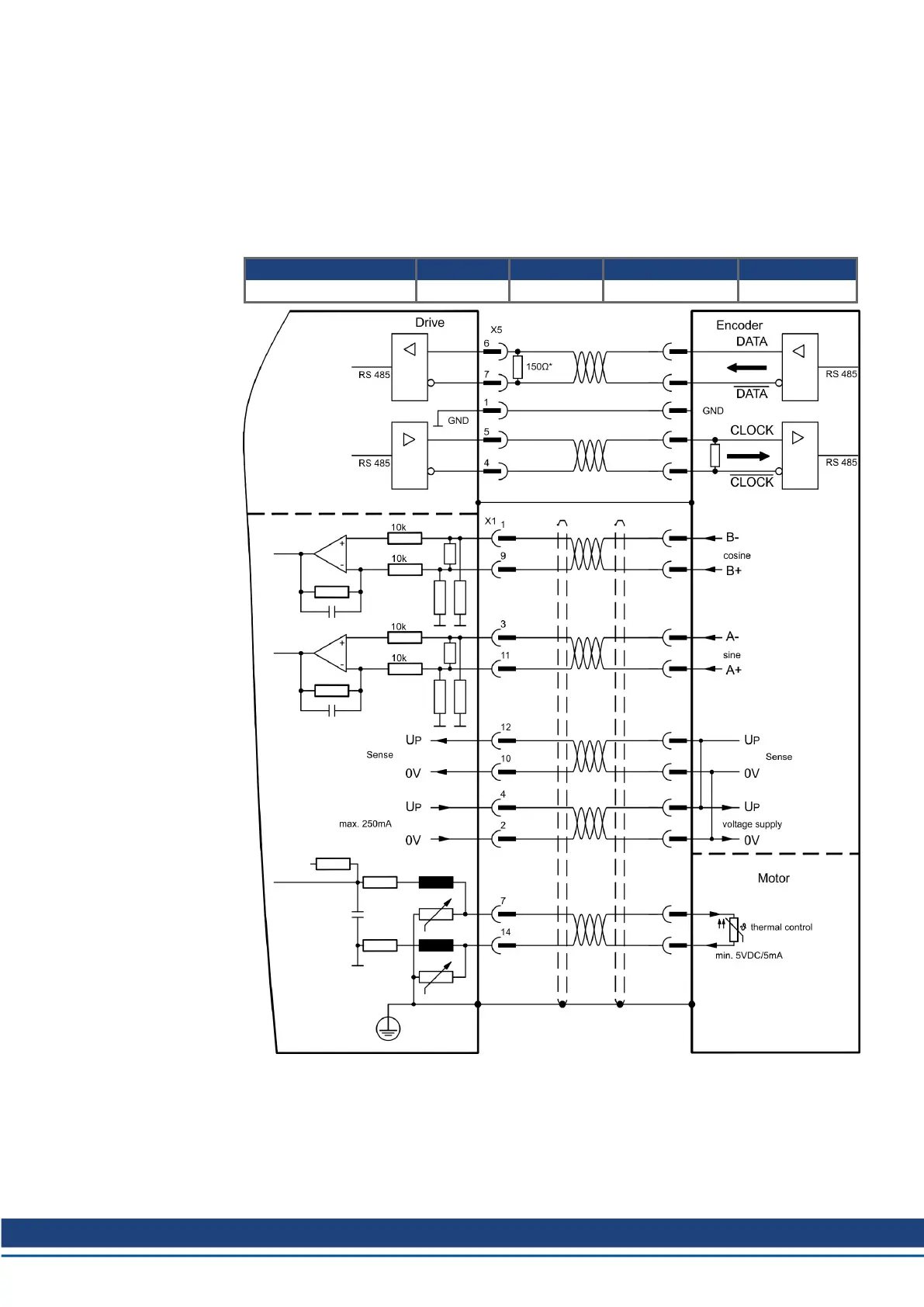

Wiring of sine-cosine encoder with SSI interface as a linear feedback system (primary, (➜ #
75)).
The thermal control in the motor is connected via the encoder cable to X1 and evaluated
there. All signals are connected using our pre-assembled encoder connection cable. If cable
lengths of more than 50m are planned, please consult our customer service.
Frequency limit (sin, cos): 350 kHz
Type FBTYPE EXTPOS GEARMODE ENCMODE
SinCos SSI 5V linear 28 - - 0
S748-772 Instructions Manual | 11 Expansions
Kollmorgen | kdn.kollmorgen.com | July 2019 147
