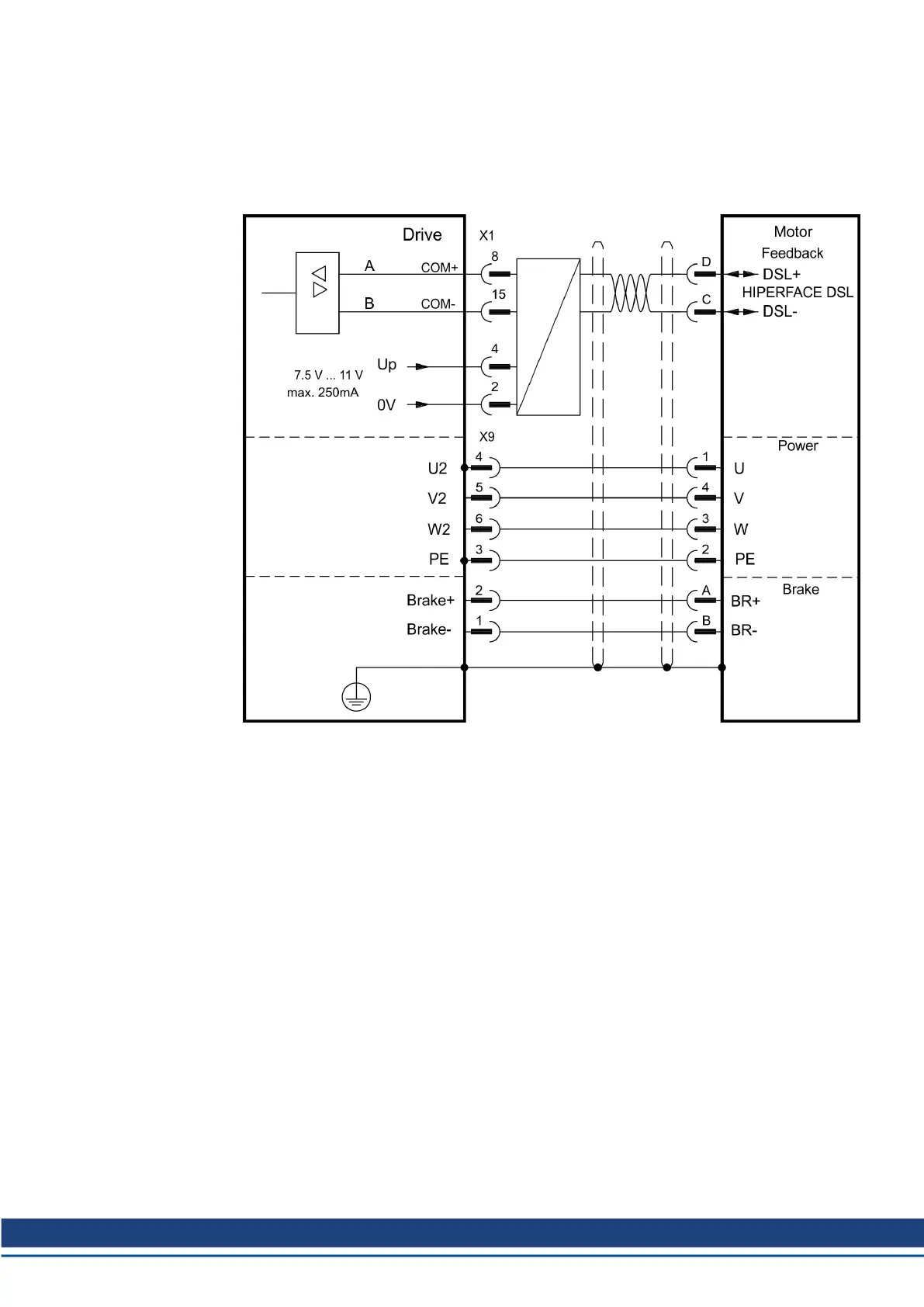

9.12.2 HIPERFACE DSL (X1), single cable connection
Connection of HIPERFACE DSL feedback (primary, (➜ # 74)). HIPERFACE DSL can be
used only with the special Kollmorgen hybrid cable ) (on request).
Maximum cable length 25 m.
FBTYPE: 35
The pin assignment shown on the motor side relates to the AKM motors (connector code D).
S748-772 Instructions Manual | 9 Electrical Installation
Kollmorgen | kdn.kollmorgen.com | July 2019 77
