9.12.4 Sine Encoder with BiSS analog (X1)

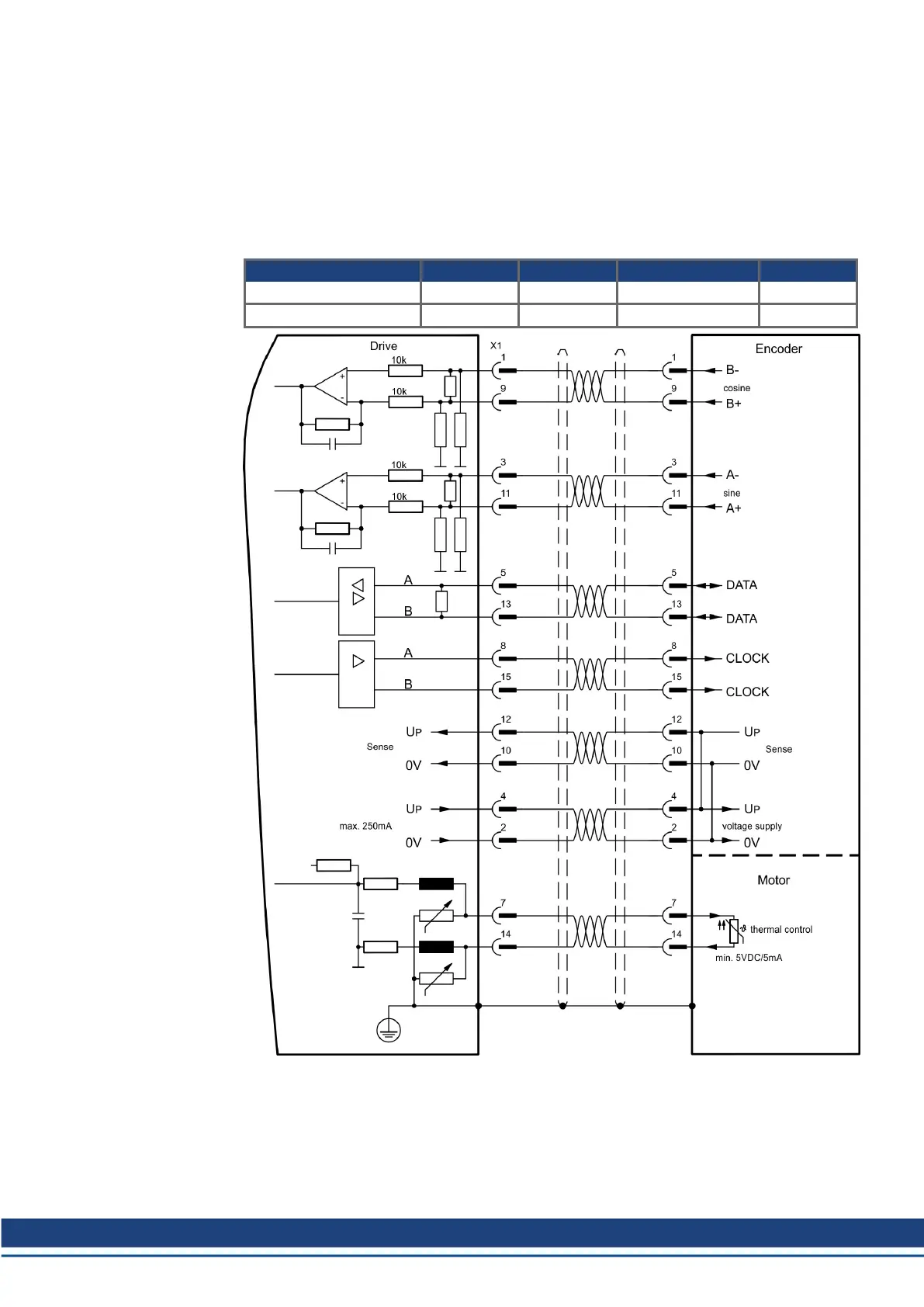

Wiring of a single-turn or multi-turn sine-cosine encoder with BiSS interface as a feedback
system (primary and secondary, (➜ # 74)).
The thermal control in the motor is connected via the encoder cable to X1 and evaluated
there. All signals are connected using our pre-assembled encoder connection cable. If cable
lengths of more than 50 m are planned, please consult our customer service.
Frequency limit (sin, cos): 350 kHz
Type FBTYPE EXTPOS GEARMODE Up
5V analog (BiSS B) 23 - - 5V +/-5%
12V analog (BiSS B) 24 - - 7.5...11V
The pin assignment shown on the motor side relates to the AKM motors.
S748-772 Instructions Manual | 9 Electrical Installation
Kollmorgen | kdn.kollmorgen.com | July 2019 79
