S748-772 Instructions Manual | 9 Electrical Installation
9.12.3 Resolver (X2)

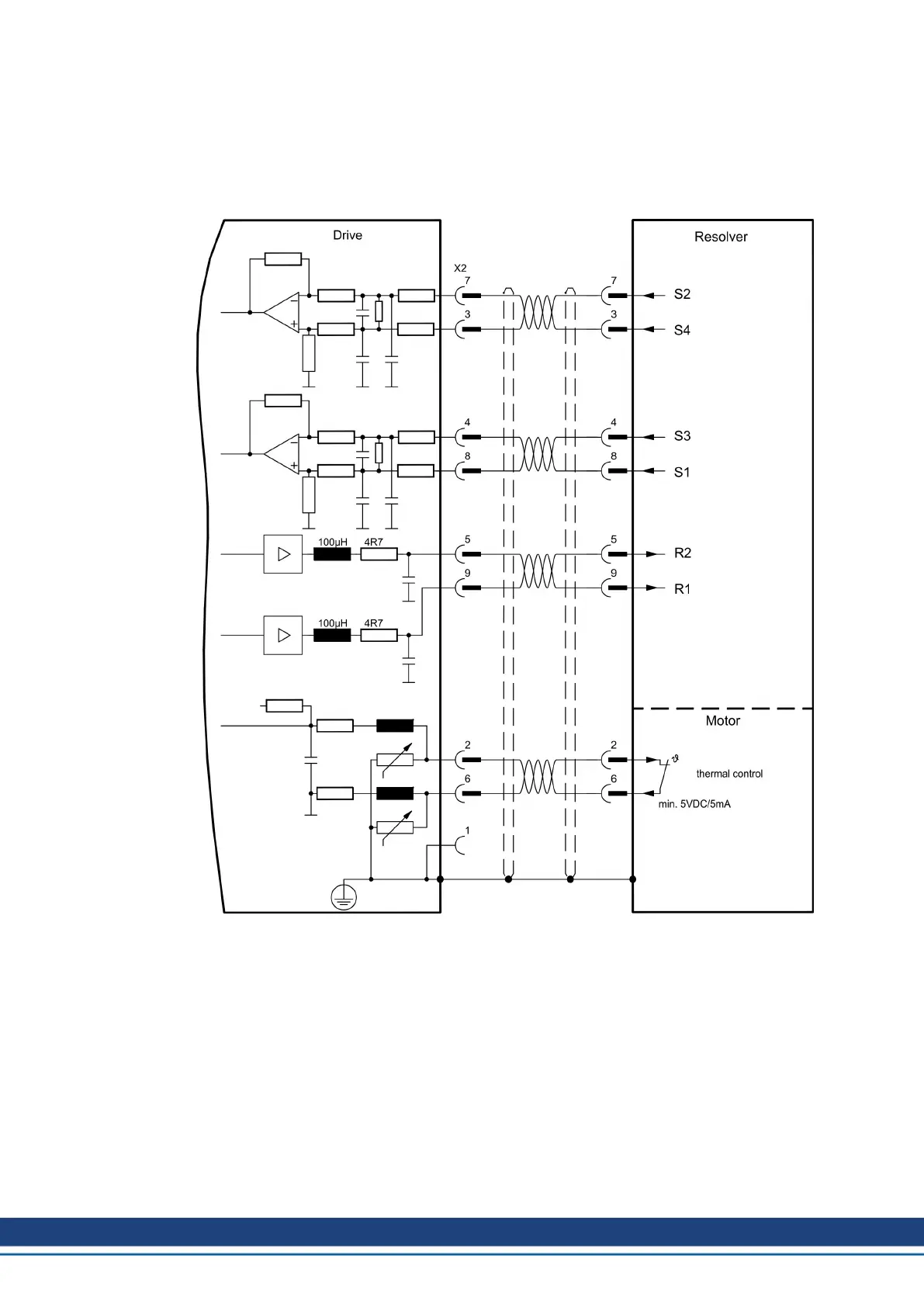

Connection of a Resolver (2 to 36-poles) as a feedback system (primary, (➜ # 74)). The
thermal control in the motor is connected via the resolver cable to X2 and evaluated there.
If cable lengths of more than 100 m are planned, please consult our customer service.
FBTYPE: 0
The pin assignment shown on the motor side relates to the AKM motors (connector code D).
78 Kollmorgen | kdn.kollmorgen.com | July 2019
