2. Engine body

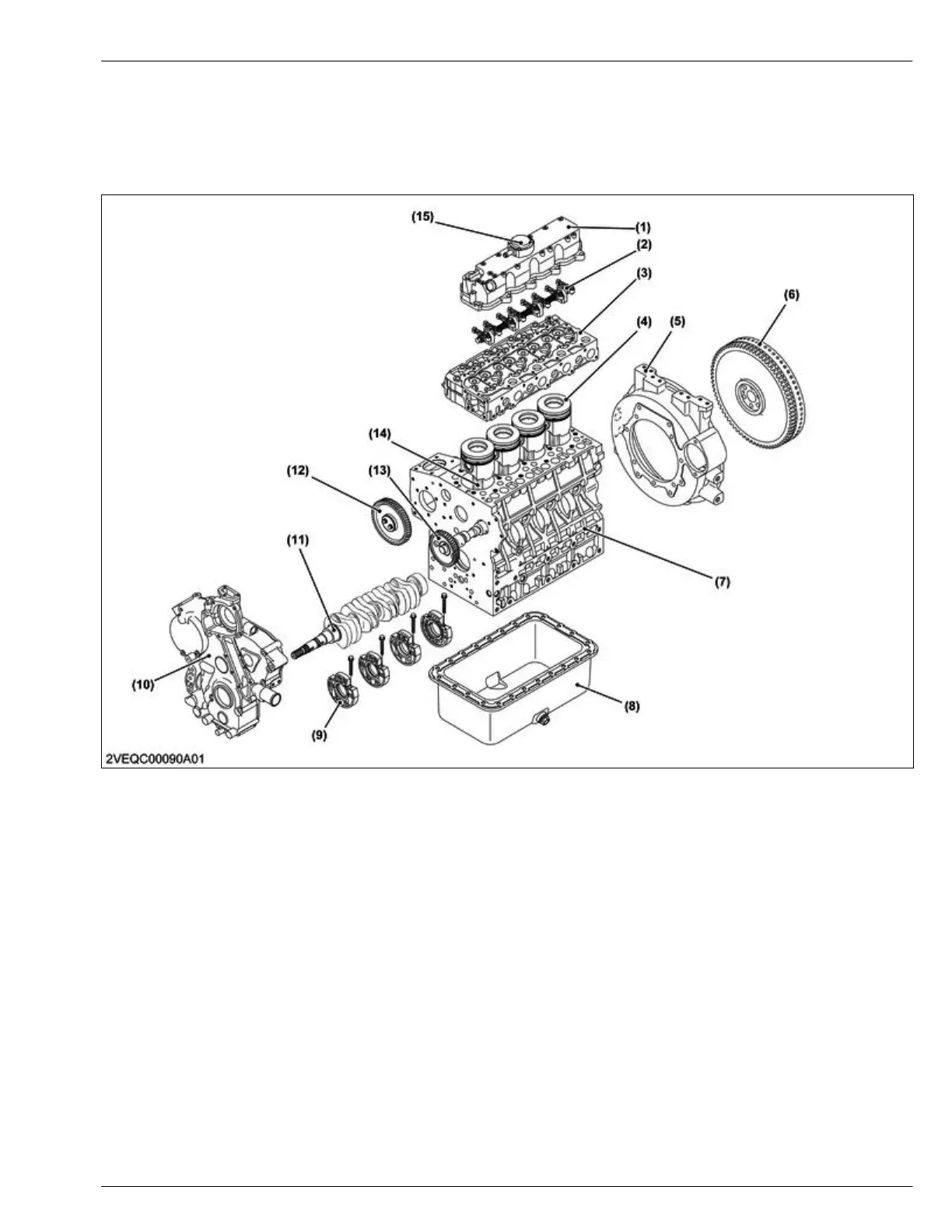

2.1 Structure of engine body
The engine body is the main part of the engine.
It is made up of cylinder related, primary motion, and valve train mechanisms.
(1) Cylinder head cover
(2) Rocker arm
(3)
Cylinder head
(4) Piston
(5) Flywheel housing
(6) Flywheel
(7) Crankcase
(8) Oil pan
(9) Main bearing case
(10) Gear case
(11) Crankshaft
(12) Idle gear
(13) Camshaft with cam gear
(14) Connecting rod
(15) Breather
MECHANISM
2. Engine body 4. ENGINE
D1803-CR-E4,D1803-CR-TE4,D1803-CR-TIE4,V2403-CR-E4,V2403-CR-TE4,V2403-CR-TE4BG,V2403-CR-TIE4
