9.10.4 Specification of air flow sensor
Power supply voltage 12 V
Temperature sensor resistance
value
Approx. 2.00 kΩ (25 ℃ (77 ℉))
Flow rate
Air flow rate Output voltage
194 g/s 4.598 V
55.6 g/s 3.121 V
5.6 g/s 1.440 V
3.6 g/s 1.239 V
(1) Flow rate (g/s) (2) Output voltage (V)
NOTE
• Standard conditions: voltage 14 V, temperature
25 ℃ (77 ℉), humidity 65%, air pressure
101.3 kPa
9.11 Exhaust gas temperature
sensor
9.11.1 Outline of exhaust gas temperature
sensor
The exhaust gas temperature sensor detects the
exhaust gas temperature of the DPF system.
9.11.2 Structure of exhaust gas
temperature sensor
The exhaust gas temperature sensor is made up of a
thermistor and connector and the like.

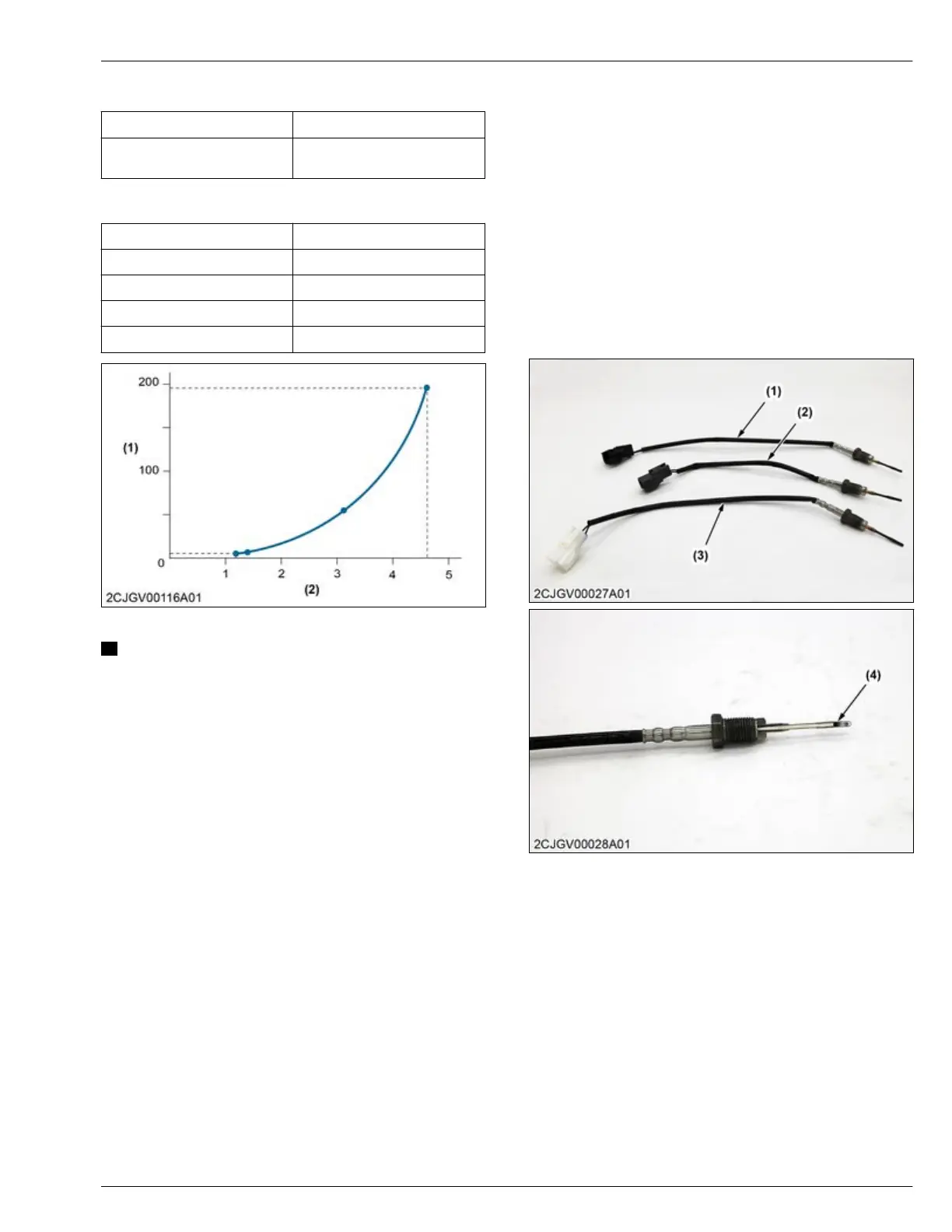

(1) Exhaust gas temperature
sensor (T0)
(2) Exhaust gas temperature
sensor (T1)
(3) Exhaust gas temperature
sensor (T2)
(4) Thermistor
