2. Compression tester adapter K
Use for check compression pressure through glow plug hole.
NOTE

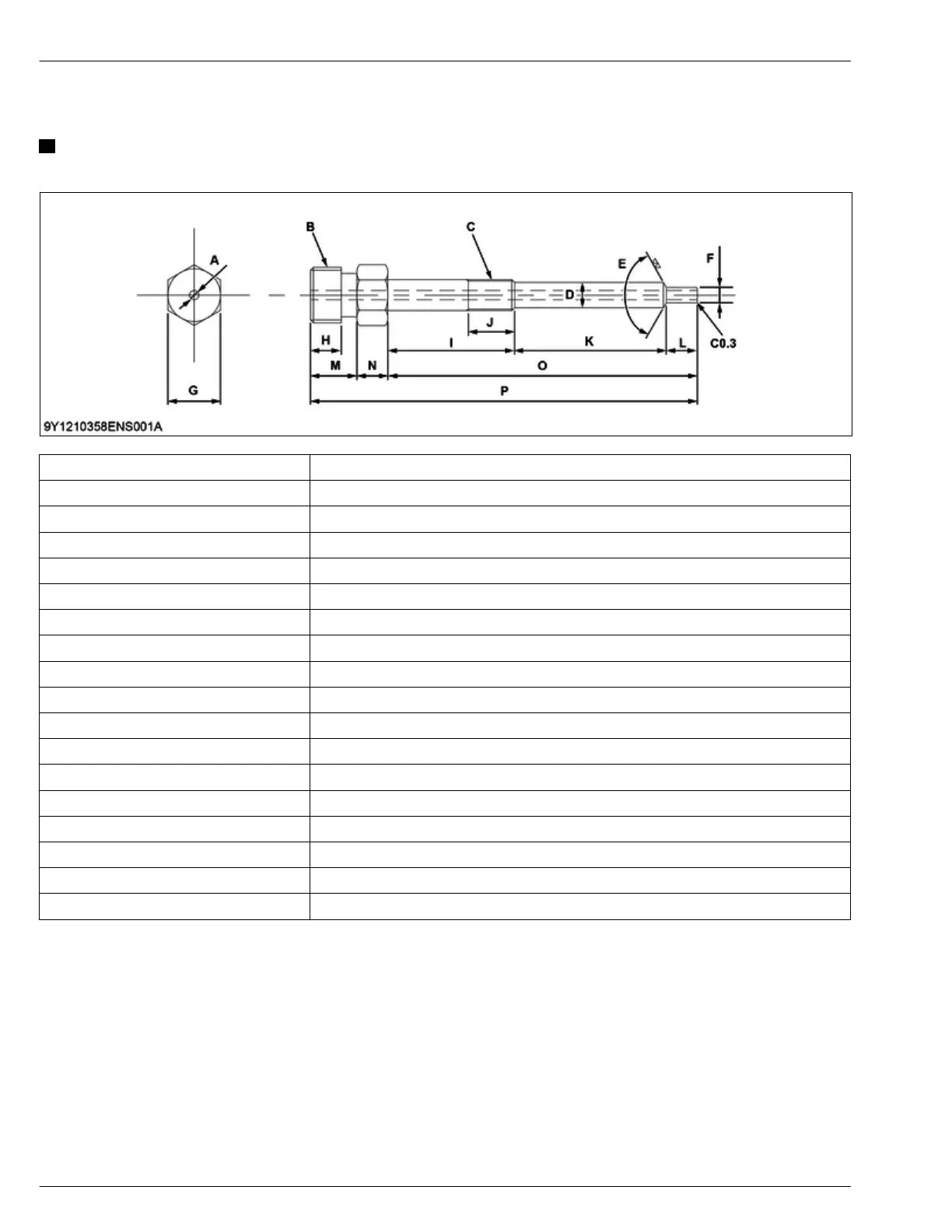

• This special tool is not provided, so make it referring to the figure.
A 3 mm dia. (0.1 in. dia.) through hole
B 16 mm dia. 18 mm thread (0.63 in. dia. 0.70 in. thread) (Special screw)
C M10 × 1.25
D 8.00 to 8.20 mm dia. (0.315 to 0.322 in. dia.)
E 118° to 120° (2.06 to 2.09 rad)
F 4.8 to 5.2 mm dia. (0.19 to 0.20 in. dia.)
G 17 mm (0.67 in.)
H 10 mm (0.39 in.)
I 41 mm (1.6 in.)
J 15 mm (0.59 in.)
K 49 mm (1.9 in.)
L 10 mm (0.39 in.)
M 15 mm (0.59 in.)
N 10 mm (0.39 in.)
O 100 mm (3.94 in.)
P 125 mm (4.92 in.)
C0.3 Chamfer 0.3 mm (Chamfer 0.01 in.)
Material SS400
