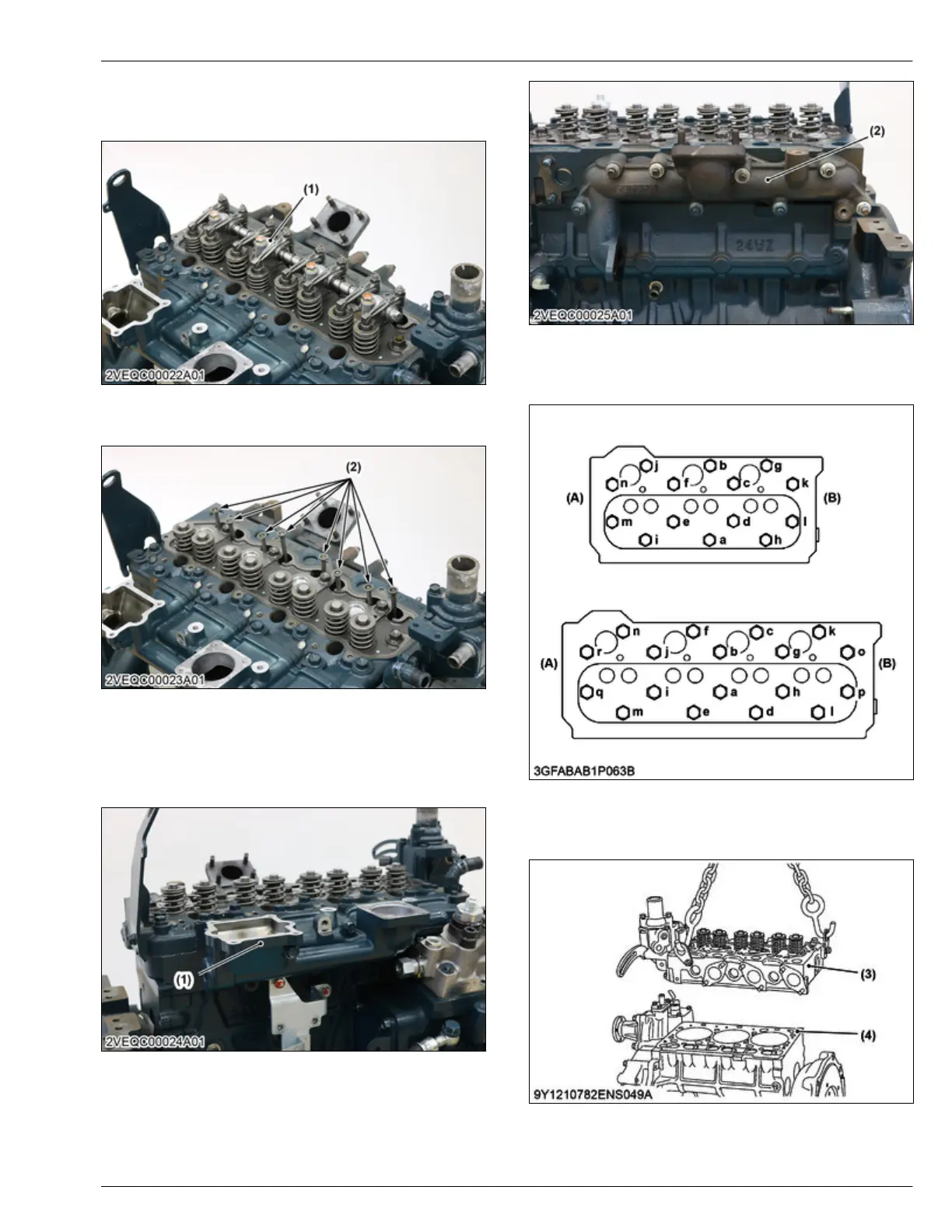

5.16 Removing rocker arm assembly
1. Remove the rocker arm assembly (1).
(1) Rocker arm assembly
2. Remove the push rods (2).
(2) Push rod
5.17 Removing cylinder head
1. Remove the intake manifold (1).
(1) Intake manifold
2. Remove the exhaust manifold (2).
(2) Exhaust manifold
3. Remove the cylinder head mounting screw in the
sequence of (n or r) to (a).
(A) Gear case side (B) Flywheel side
4. Remove the
cylinder head (3) and cylinder head
gasket (4).
(3) Cylinder head (4) Cylinder head gasket
