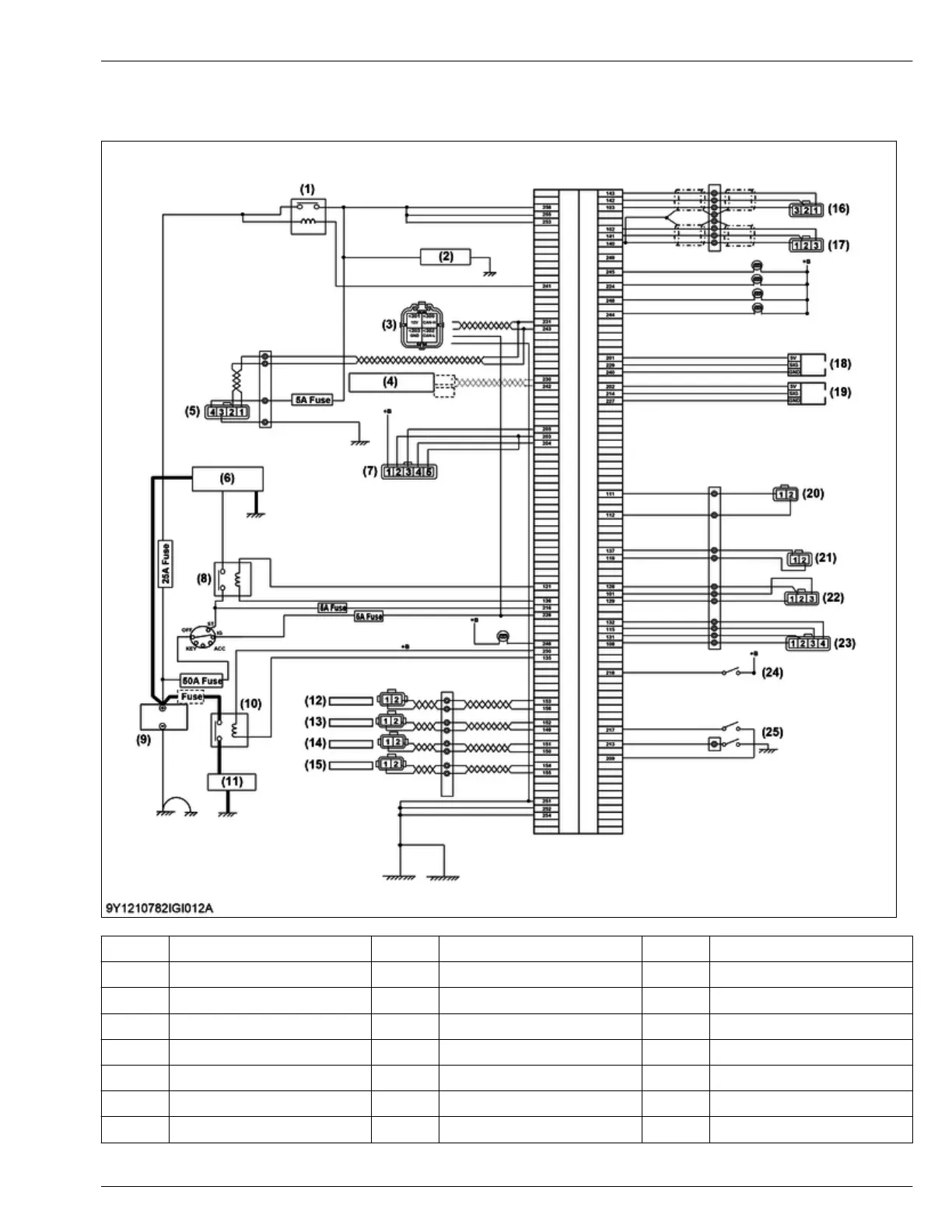

6.5 System wiring diagram for D1803-CR-TIE4, V2403-CR-TIE4
D1803-CR-TIE4, V2403-CR-TIE4
(1) Main relay (10) Glow relay (19) Accel sensor 2
(2) Fuel feed pump (11) Glow heater (20) Suction control valve (SCV)
(3) CAN1 connector (for service) (12) Injector 1 (21) Coolant temperature sensor
(4) CAN2 connector (for vehicle) (13) Injector 4
*
(22) Rail pressure sensor
(5) EGR valve (14) Injector 3 (23) Boost pressure sensor
(6) Starter (15) Injector 2 (24) Stop switch
(7) Air flow sensor (16) Crankshaft position sensor (25) Neutral switch
(8) Starter relay (17) Camshaft position sensor
(Continued)
GENERAL MACHINE INFORMATION
6. Wiring diagram 2. GENERAL
D1803-CR-E4,D1803-CR-TE4,D1803-CR-TIE4,V2403-CR-E4,V2403-CR-TE4,V2403-CR-TE4BG,V2403-CR-TIE4
To Next Page
