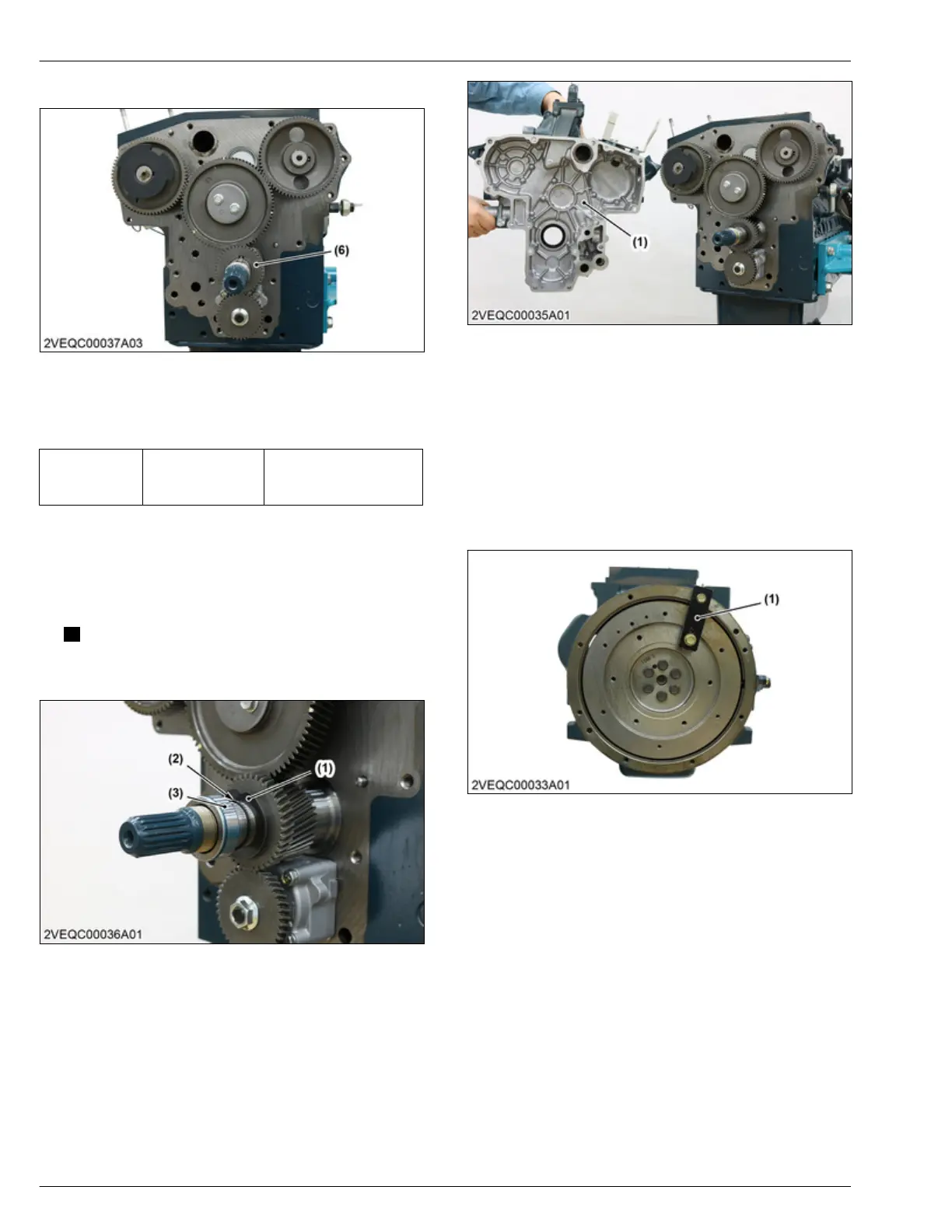

Kubota D1803-CR-E4 - Installing Crankshaft Oil Slinger; Installing Fan Drive Pulley; Installing Gear Case Cover

3. Install the oil pump drive gear 2 (6).
(6) Oil pump drive gear 2
4. Tighten the oil pump drive gear 1 (5) mounting nut
completely
to the specified torque after installing oil
pump drive gear 2 (6).
Tightening tor-
que
Oil pump drive
gear 1 mounting
nut
78.5 to 88.3 N⋅m
8.01 to 9.00 kgf⋅m
57.9 to 65.1 lbf⋅ft
6.18 Installing crankshaft oil slinger
1. Install the crankshaft oil slinger (1).
2. Install the O-ring (2).
NOTE
• Attach the crankshaft collar (3) after you
install the gear case cover to the crankcase.
(1) Crankshaft oil slinger
(2) O-ring
(3)
Crankshaft collar
6.19 Installing gear case cover
1. Install the gear case cover gasket.
2. Install the gear case cover (1).
•
Apply oil to the lip of oil seal.
(1) Gear case cover
3. Install the hour meter gear case cover (if attached).
4. Install the crankshaft collar.
6.20 Installing fan drive pulley
Tools required
• Flywheel stopper
•
46 mm (1.8 in.) deep socket wrench
1. Mount the flywheel stopper (1) on the flywheel.
(1) Flywheel stopper
2. Install the feather key.
3. Install the fan drive pulley (2).
4. ENGINE
SER
VICING
6. Assembling
4-146
D1803-CR-E4,D1803-CR-TE4,D1803-CR-TIE4,V2403-CR-E4,V2403-CR-TE4,V2403-CR-TE4BG,V2403-CR-TIE4
KiSC issued 12, 2018 A
