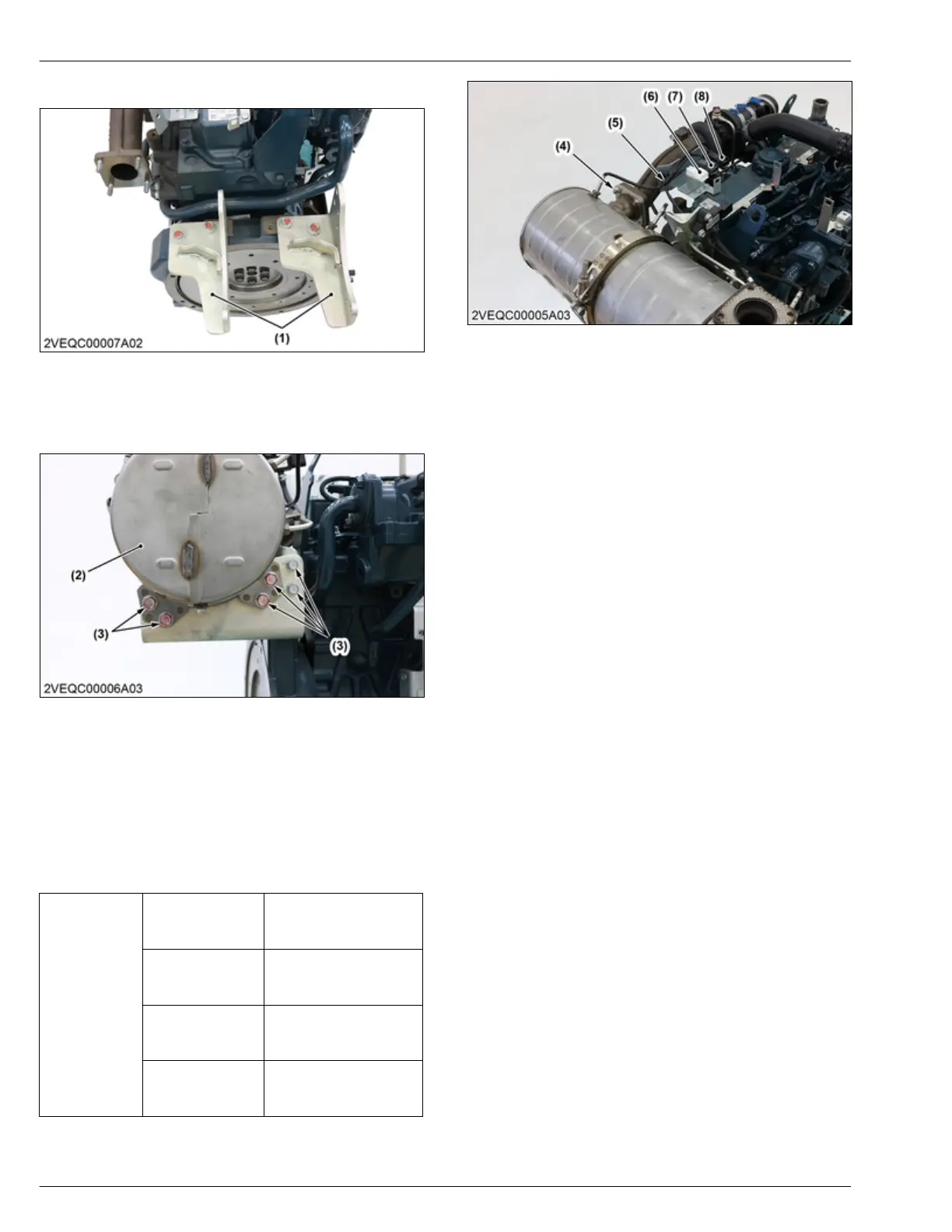

1. Install the DPF bracket (1).
(1) DPF bracket
2. Install the muffler full assembly (2).
3. Loosely tighten
the muffler full assembly mounting
screws (3).
(2) Muffler full assembly (3) Muffler full assembly mount-
ing screws
4. Loosely tighten the muffler flange nut (4).
5. Tighten
the muffler full assembly mounting screws
(3) and muffler flange nut (4) to the specified torque.
6. Clamp the cord of exhausts gas temperature sensor
with clamp (5).
7. Attach the exhaust gas temperature sensor
connector (6), (7), (8) to the bracket.
Tightening tor-
que
DPF bracket
mounting screw
60.8 to 70.8 N⋅m
6.20 to 7.21 kgf⋅m
44.9 to 52.2 lbf⋅ft
Muffler full assem-
bly mounting
screw (M10) (3)
49.0 to 55.9 N⋅m
5.00 to 5.70 kgf⋅m
36.2 to 41.2 lbf⋅ft
Muffler full assem-
bly mounting
screw (M8) (3)
23.5 to 27.5 N⋅m
2.40 to 2.80 kgf⋅m
17.4 to 20.2 lbf⋅ft
Muffler flange nut
(4)
23.5 to 27.5 N⋅m
2.40 to 2.80 kgf⋅m
17.4 to 20.2 lbf⋅ft
(4) Muffler flange nut
(5) Clamp
(6)
Exhaust gas temperature
sensor connector (T2)
(7) Exhaust gas temperature
sensor connector (T1)
(8) Exhaust gas temperature
sensor connector (T0)
4. ENGINE
SERVICING
6. Assembling
4-158
