Kubota D1803-CR-E4 - Page 52

(36) － Injector
(37) － Shield cable
NOTE
• The figure shows the pin arrangement of the connector housing viewed from wire side, not mating side.
2. GENERAL
GENERAL MACHINE INFORMA
TION

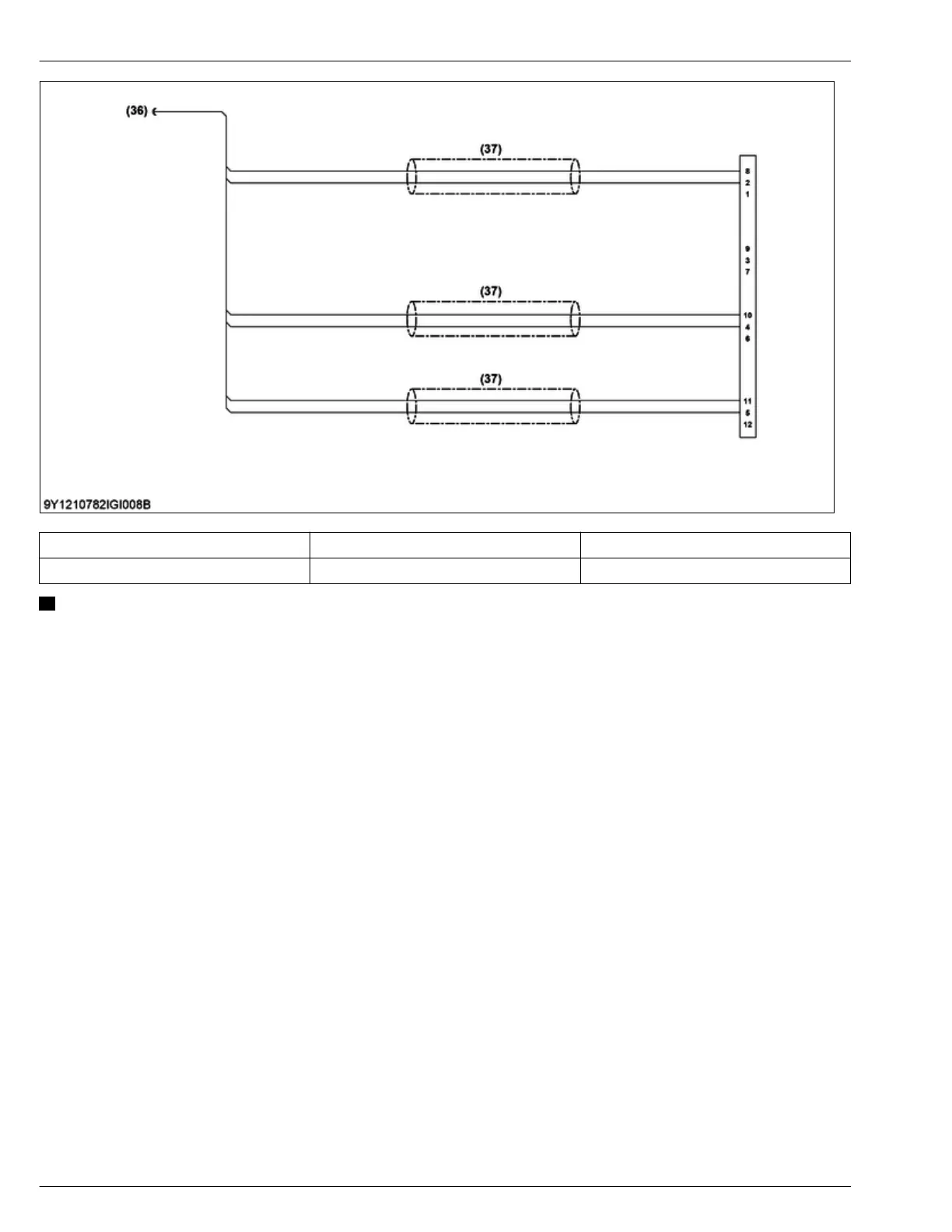

6. Wiring diagram
