Kubota D1803-CR-E4 - Page 88

tool (Diagmaster), check the failure history, and
save the project.
• Before
removing
the DPF for cleaning, keep the
records of the engine serial number, filter comp
(DPF) part number, filter comp (DPF) serial
number, catalyst (DOC) part number, catalyst
(DOC) serial number, and engine operating time,
which are required in preparing the DPF
cleaning order form.
• Since the engine operating time is recorded in
the engine ECU, check the operating time by
connecting the service tool (Diagmaster).
• When installing and removing the muffler full
assembly (DPF), make sure that the temperature
sensor, differential pressure sensor, and
differential pressure pipe do not make contact
with surrounding parts.
Tools required
• Crowfoot wrench
1. Disconnect the harness of exhaust gas temperature
sensor from the connector (7), (8), (9) and the
harness of differential pressure sensor (10).
2. Remove the connector of exhaust gas temperature
sensor (7), (8), (9) from the bracket.
3. Remove the clamp (5).
4. Remove the tube (11), (12) from the differential
pressure pipe (1), (4).
5. Remove the differential sensor (3).
6. Remove the differential sensor bracket (2).
7. Remove the 4 screws of muffler flange (6).

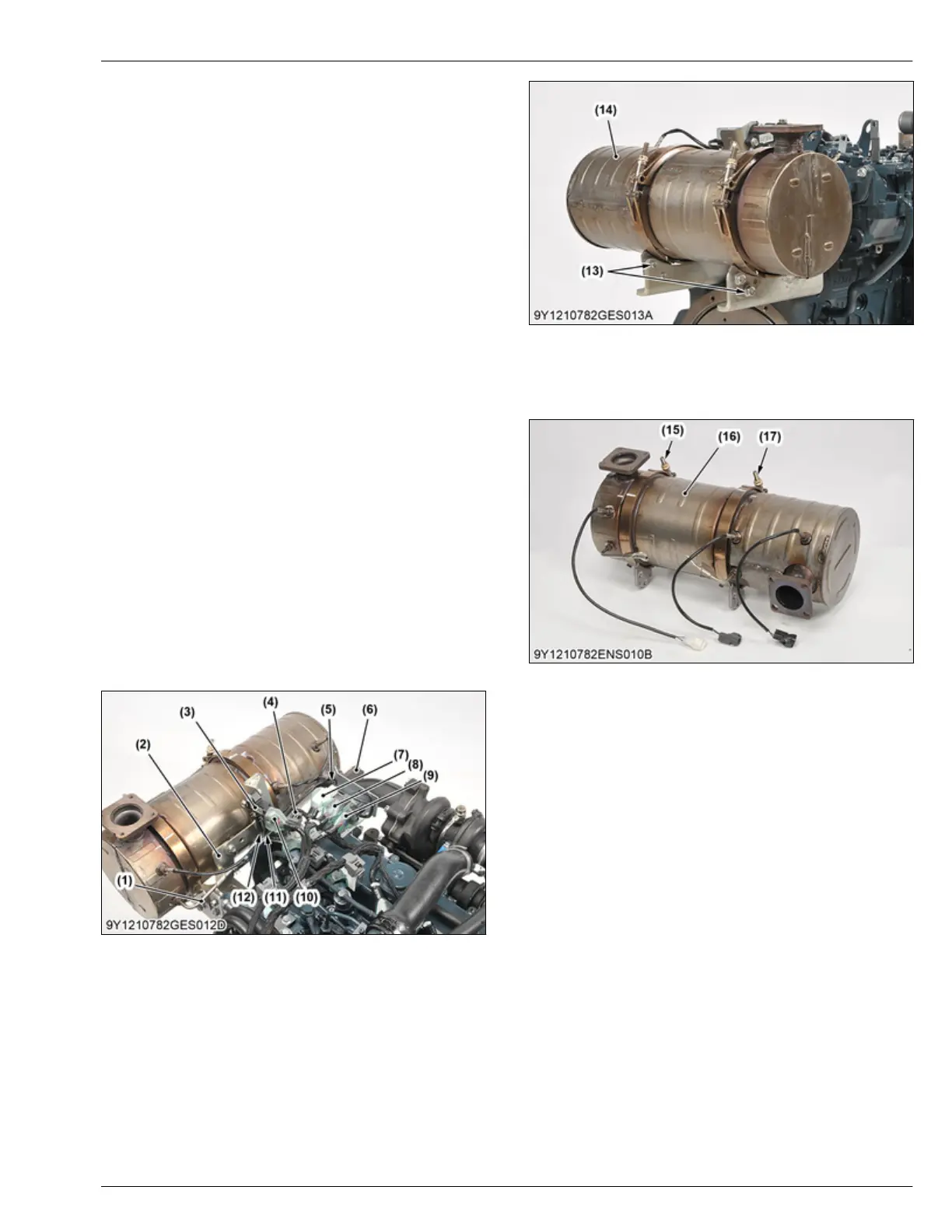

(1) Differential pressure pipe
(2) Dif
ferential pressure sensor
bracket
(3) Differential pressure sensor
(4) Differential pressure pipe
(5) Clamp
(6) Muffler flange
(7) Connector of exhaust gas
temperature sensor (T2)
(8) Connector of exhaust gas
temperature sensor (T1)
(9) Connector of exhaust gas
temperature sensor (T0)
(10) Differential pressure sensor
connector
(11) Tube
(12) Tube
8. Remove the
muffler full assembly (DPF) mounting
screws (13).
9. Remove the muffler full assembly (DPF) (14).
(13) Muffler full assembly (DPF)
mounting screw
(14) Muffler full assembly (DPF)
10. Loosen the Filter comp (DPF) bracket (15), (17) and
remove the Filter comp (DPF) (16).
(15) Filter comp (DPF) bracket
(16) Filter comp (DPF)
(17)
Filter comp (DPF) bracket
11. Pack
the filter comp (DPF) (16) and send it to a
cleaning contractor
.
CHECK AND MAINTENANCE
