2PV/2PW
1-1-6

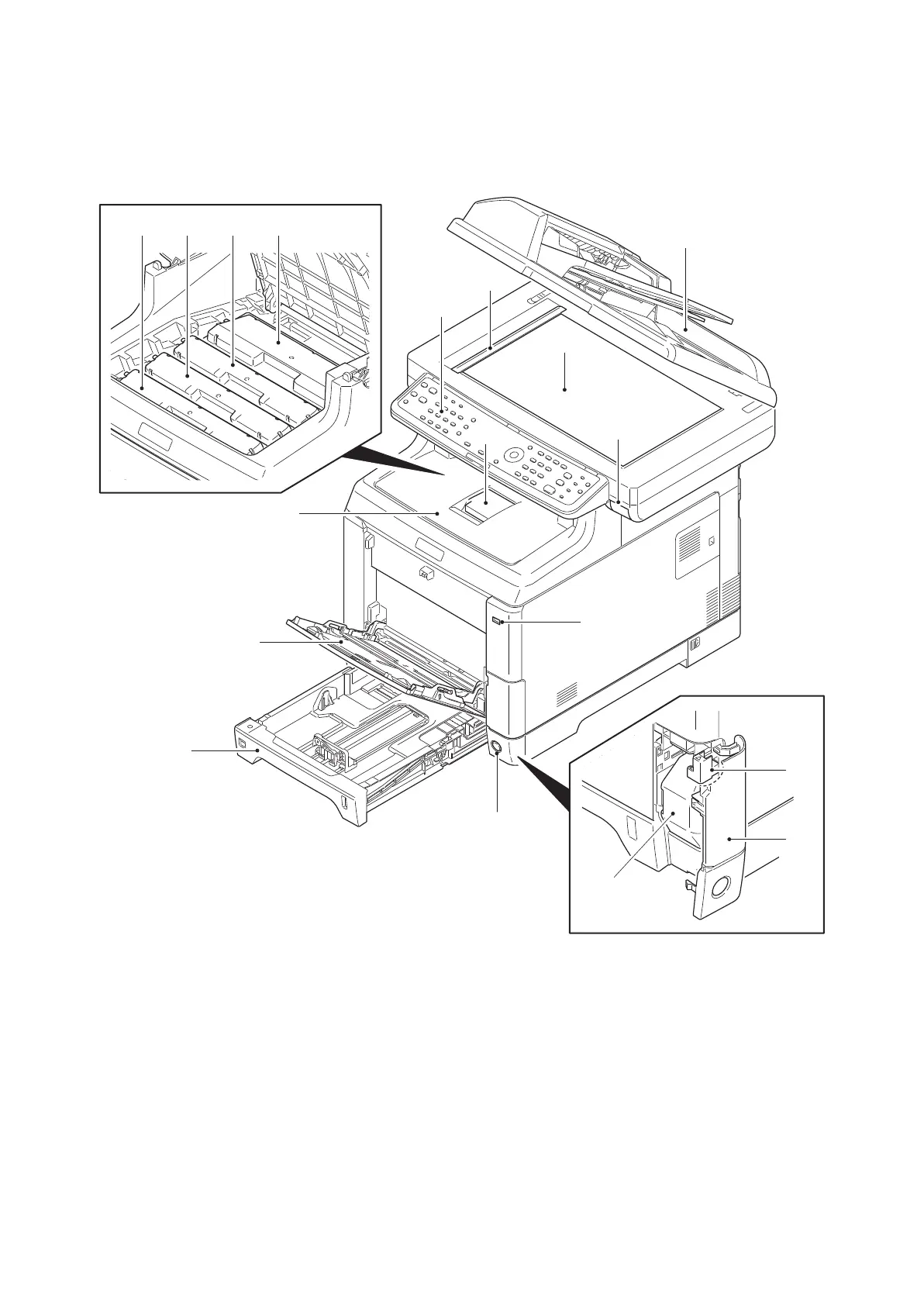

1-1-2 Parts names
(1) Machine (front side)
Figure 1-1-1
1
6
11
17
10
18
16
8
7
9
4
3
2
5
12131415
1. Document processor (DP)
2. Contact glass
3. Original size Indicator plate
4. Operation panel
5. Inner tray lever
6. Paper stopper
7. Inner tray
8. MP (Multi-Purpose) tray
9. Cassette
10. USB memory slot
11. Main power switch
12. Toner container K
13. Toner container M
14. Toner container C
15. Toner container Y
16. Waste toner cover
17. Waste toner box
18. Lock release button
