Kyocera Ecosys M6526cdn Service Manual

2PV/2PW
2-1-11
2-1-4 Optical section
The optical section consists of the image scanner section for scanning and the laser scanner section for print-
ing.
(1) Image scanner section
The original image is illuminated by the LED and scanned by the CCD image sensor in the CCD PWB (CCD-
PWB) via the five mirrors and ISU lens, the reflected light being converted to an electrical signal.
If a document processor is used, the image scanner unit stops at the position of the DP contact glass and
scans sequentially one row of the image on the original in synchronization with the moving timing of the origi-
nal in the sub scan direction by driving the DP.

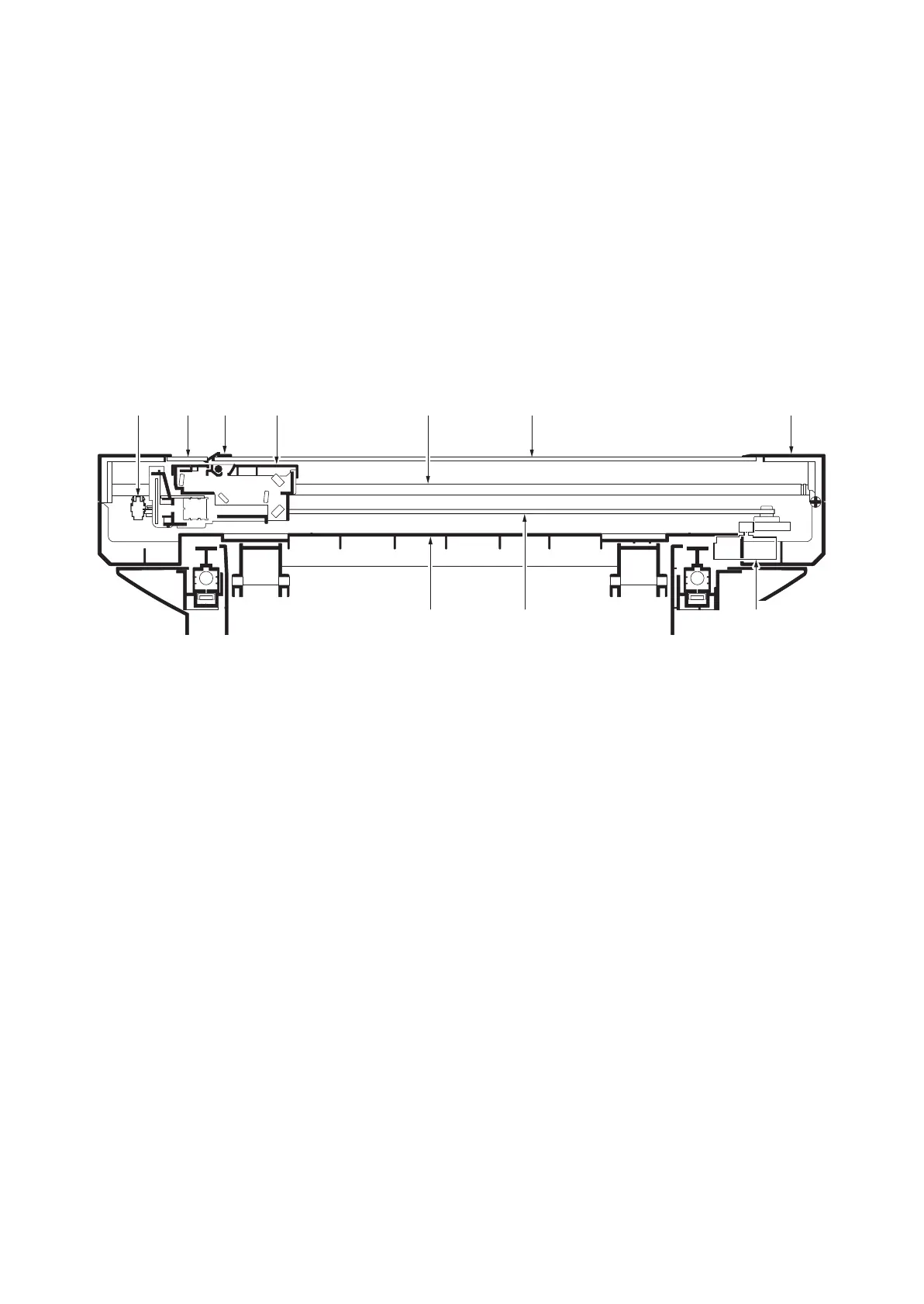

Figure 2-1-11 Scanner unit
5 6 10
2
9 17 43 8
1. Contact glass
2. DP contact glass
3. Original size indicator plate
4. ISU top frame
5. ISU bottom frame
6. ISU belt
7. ISU shaft
8. Image scanner unit (ISU)
9. Home position sensor (HPS)
10. ISU motor (ISUM)

Kyocera Ecosys M6526cdn Specifications

General

Print Technology	Laser
Copy Resolution	600 x 600 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Functions	Print, Copy, Scan, Fax
Fax Speed	33.6 kbps
Mobile Printing Support	Yes
Paper Output Capacity	150 sheets
Max Paper Size	A4
Print Resolution	1200 x 1200 dpi
Scan Resolution	600 x 600 dpi
Connectivity	USB 2.0, Ethernet
Warm-up Time	29 seconds
Duty Cycle	50, 000 pages per month
Recommended Monthly Print Volume	Up to 3, 000 pages
First Copy Out Time	10 seconds
Zoom Range	25% - 400%
Scan to	Email, FTP, SMB, USB
Fax Resolution	300 x 300 dpi
Memory	512 MB
Supported Paper Sizes	A4, A5, A6, B5, Letter, Legal
