Kyocera Ecosys M6526cdn Service Manual

2PV/2PW
1-5-17
(3) Detaching and refitting the MP paper feed roller
Procedure
1. Remove the cassette.
2. Remove the guide sections of the MP
tray cover from the MP tray.
3. Raise the MP tray cover upward.
Release two hooks and then remove
the MP tray cover.

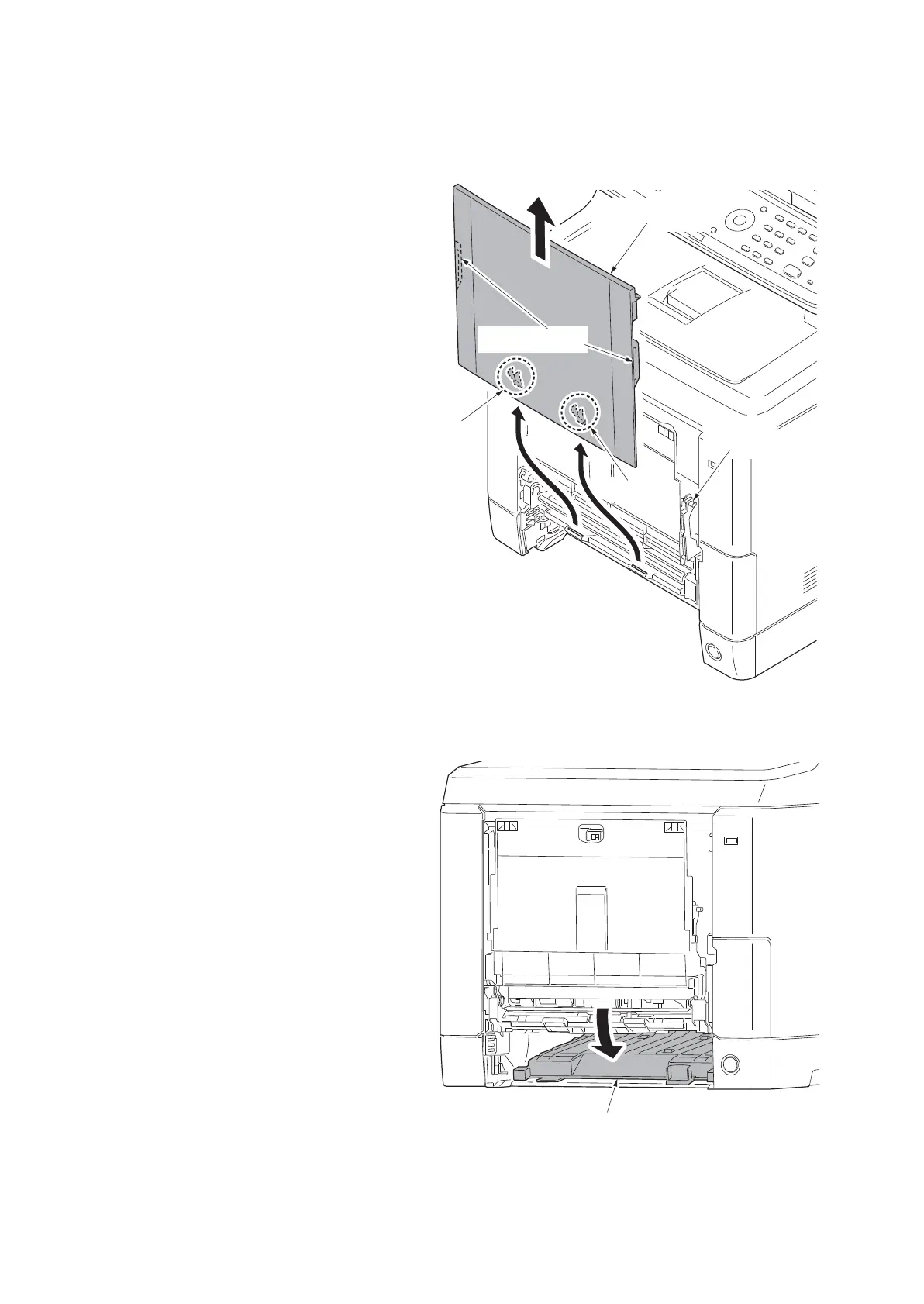

Figure 1-5-24
4. Open the conveying lower cover.
Figure 1-5-25
Hook
Hook
MP tray cover
Guide sections
MP tray
Conveying lower cover
