Kyocera Ecosys M6526cdn Service Manual

2PV/2PW
2-2-9
(5) Document processor

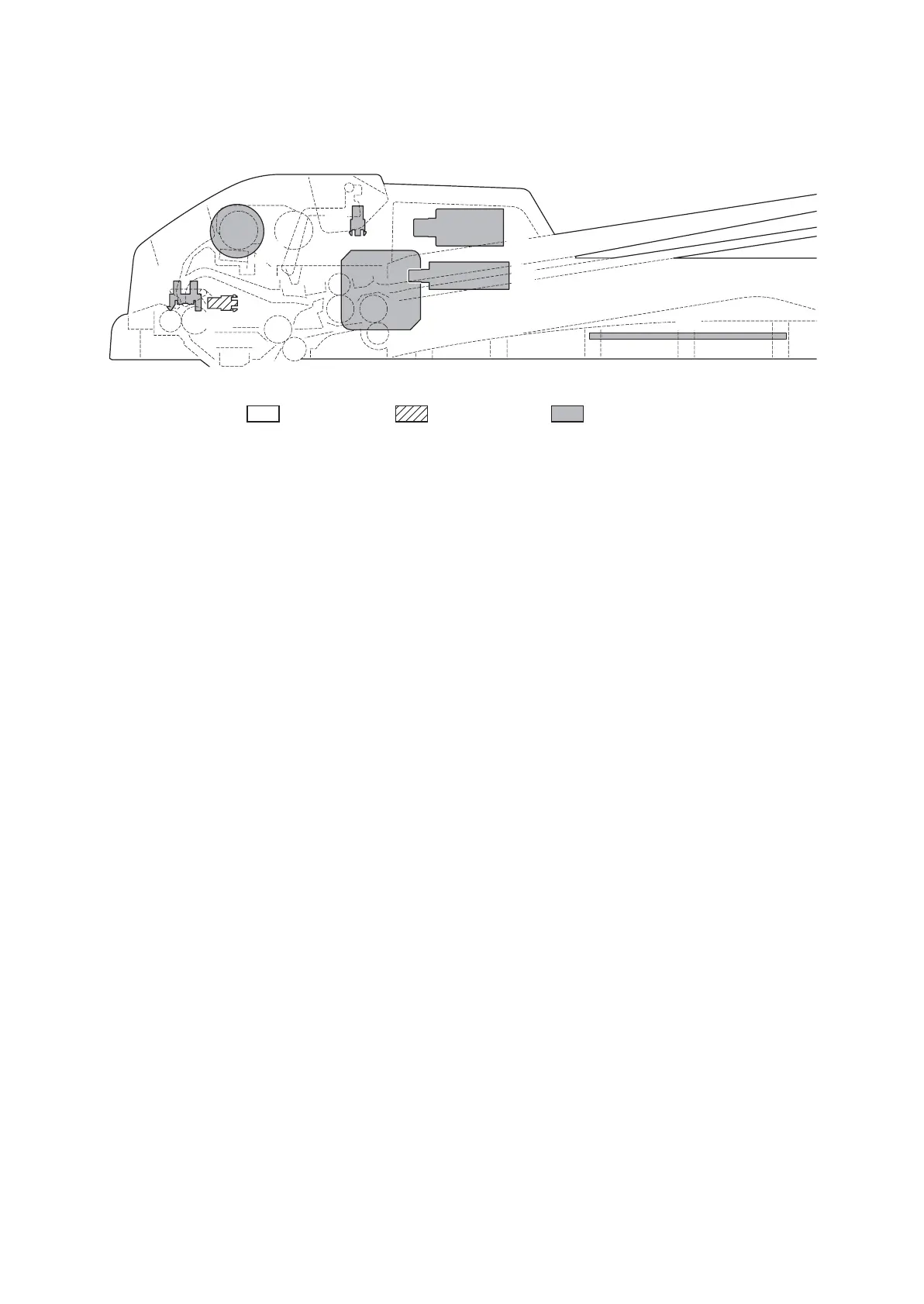

Figure 2-2-5 Document processor
1. DP drive PWB (DPDPWB ..................... Consists the solenoids and clutch driver circuit and wiring relay
circuit.
2. DP original sensor (DPOS) ................... Detects the presence of an original.
3. DP timing sensor (DPTS)...................... Detects the original scanning timing.
4. DP open/close sensor (DPOCS)........... Detects the opening/closing of the DP.
5. DP paper feed motor (DPPFM)............. Drives the original feed section.
6. DP paper feed clutch (DPPFCL)........... Controls the drive of the DP forwarding pulley and DP feed pulley.
7. DP switchback solenoid (DPSBSOL).... Operates the switchback guide.
8. DP pressure solenoid (DPPRSOL) ....... Operates the switchback pulley.
1
5
7
2
6
3
4
8
Machine insideMachine right Machine left

Kyocera Ecosys M6526cdn Specifications

General

Print Technology	Laser
Copy Resolution	600 x 600 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Functions	Print, Copy, Scan, Fax
Fax Speed	33.6 kbps
Mobile Printing Support	Yes
Paper Output Capacity	150 sheets
Max Paper Size	A4
Print Resolution	1200 x 1200 dpi
Scan Resolution	600 x 600 dpi
Connectivity	USB 2.0, Ethernet
Warm-up Time	29 seconds
Duty Cycle	50, 000 pages per month
Recommended Monthly Print Volume	Up to 3, 000 pages
First Copy Out Time	10 seconds
Zoom Range	25% - 400%
Scan to	Email, FTP, SMB, USB
Fax Resolution	300 x 300 dpi
Memory	512 MB
Supported Paper Sizes	A4, A5, A6, B5, Letter, Legal
