2PV/2PW
2-1-12

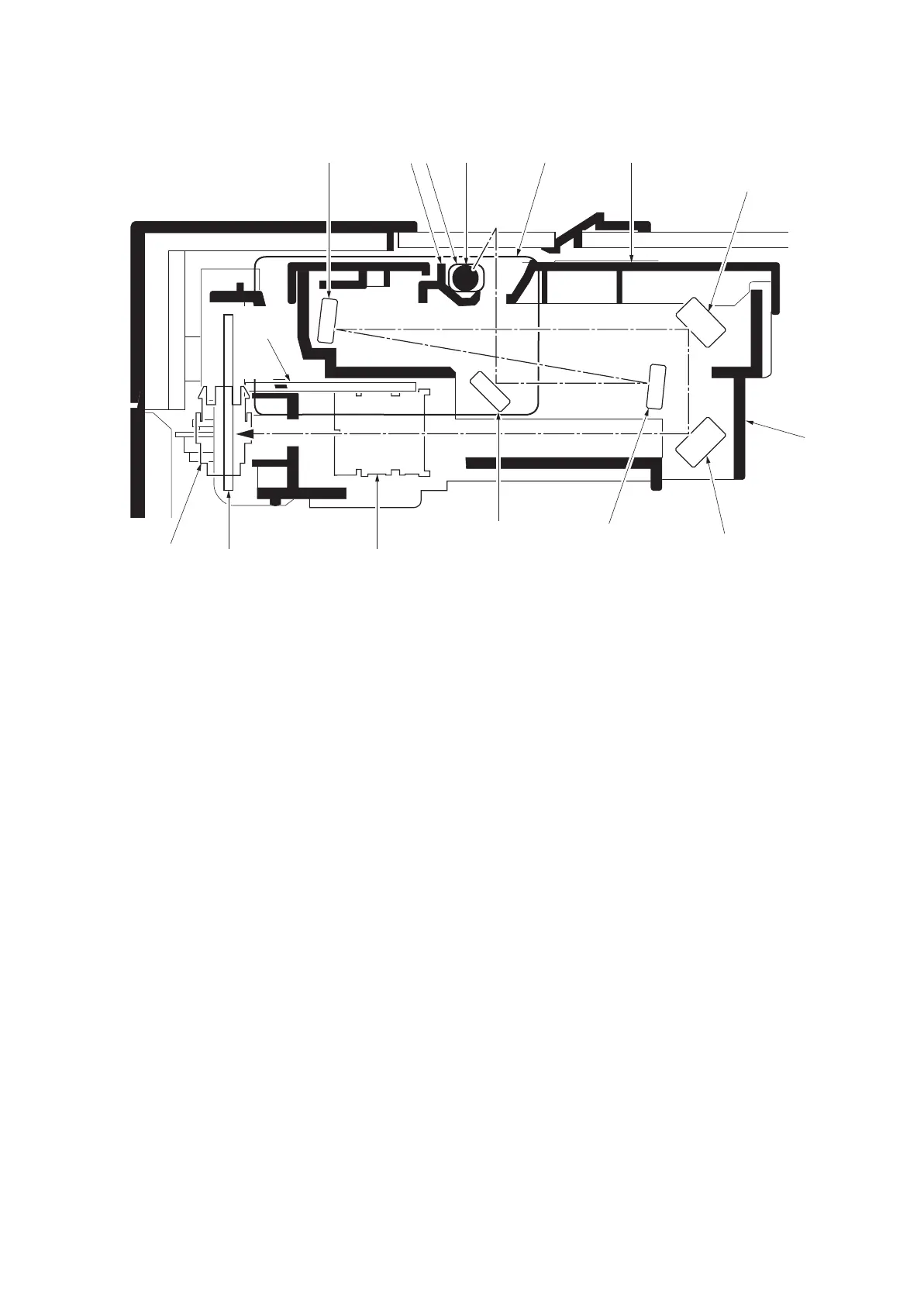

Figure 2-1-12 Image scanner unit (ISU)
5
10
9
2
6
11
15
7
8
3 14
4
1
12
13
1. Unit cover
2. ISU housing
3. Reflector
4. Transparent material
5. Mirror A
6. Mirror B
7. Mirror C
8. Mirror D
9. Mirror E
10. ISU lens
11. CCD PWB (CCDPWB)
12. DriverPWB (DRPWB)
13. LED PWB (LEDPWB)
14. LED
15. Home position sensor (HPS)
