Kyocera Ecosys M6526cdn Service Manual

2PV/2PW
2-1-17

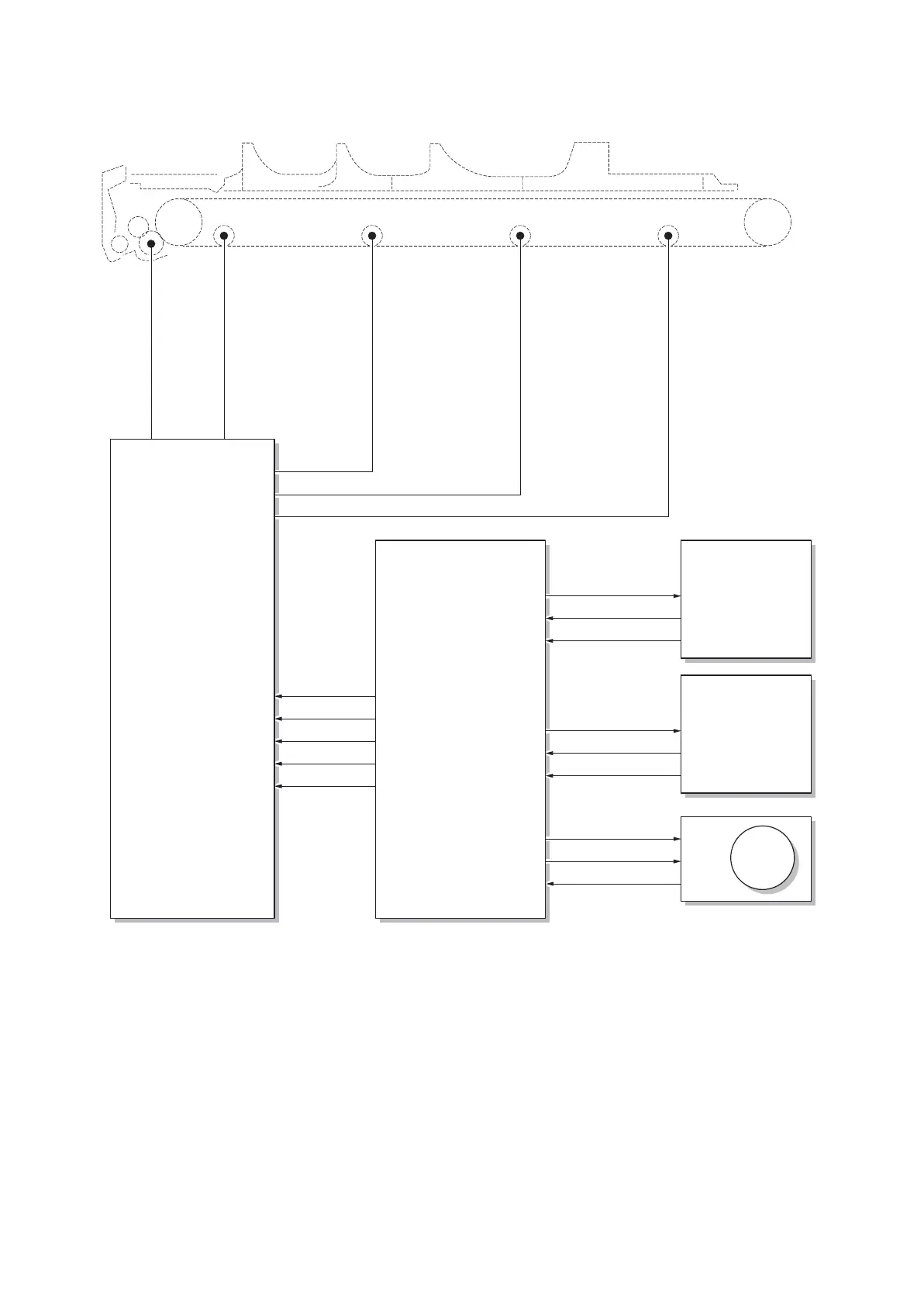

Figure 2-1-17 Intermediate transfer unit section block diagram
Primary transfer bias Y
Primary transfer bias C
Primary transfer bias M
Primary transfer bias K
Cleaning bias
HVPWB
EPWB
Intermediate transfer unit
IDS1
T1CCNT
T1MCNT
CLCNT
LEDREFL
VOPL
VOSL
YC6-4
YC6-2
YC6-1
YC1-2
YC1-4
YC1-5
IDS2
FUM
LEDREFR
VOPR
IMAMOTREN
IMAMOTCLK
VOSR
YC7-4
YC7-2
YC7-1
YC1-2
YC15-3 3
IMAMOTRDYN
YC15-2 2
YC15-1 1
YC1-4
YC1-5
T1YCNT
T1KCNT
YC11-3
YC11-5
YC11-9
YC11-11
YC11-13
