Kyocera Ecosys M6526cdn Service Manual

2PV/2PW
2-1-23
2-1-8 Duplex conveying section
The duplex conveying section consists of conveying path which sends the paper sent from the eject/feedshift
section to the paper feed/conveying section when duplex printing.

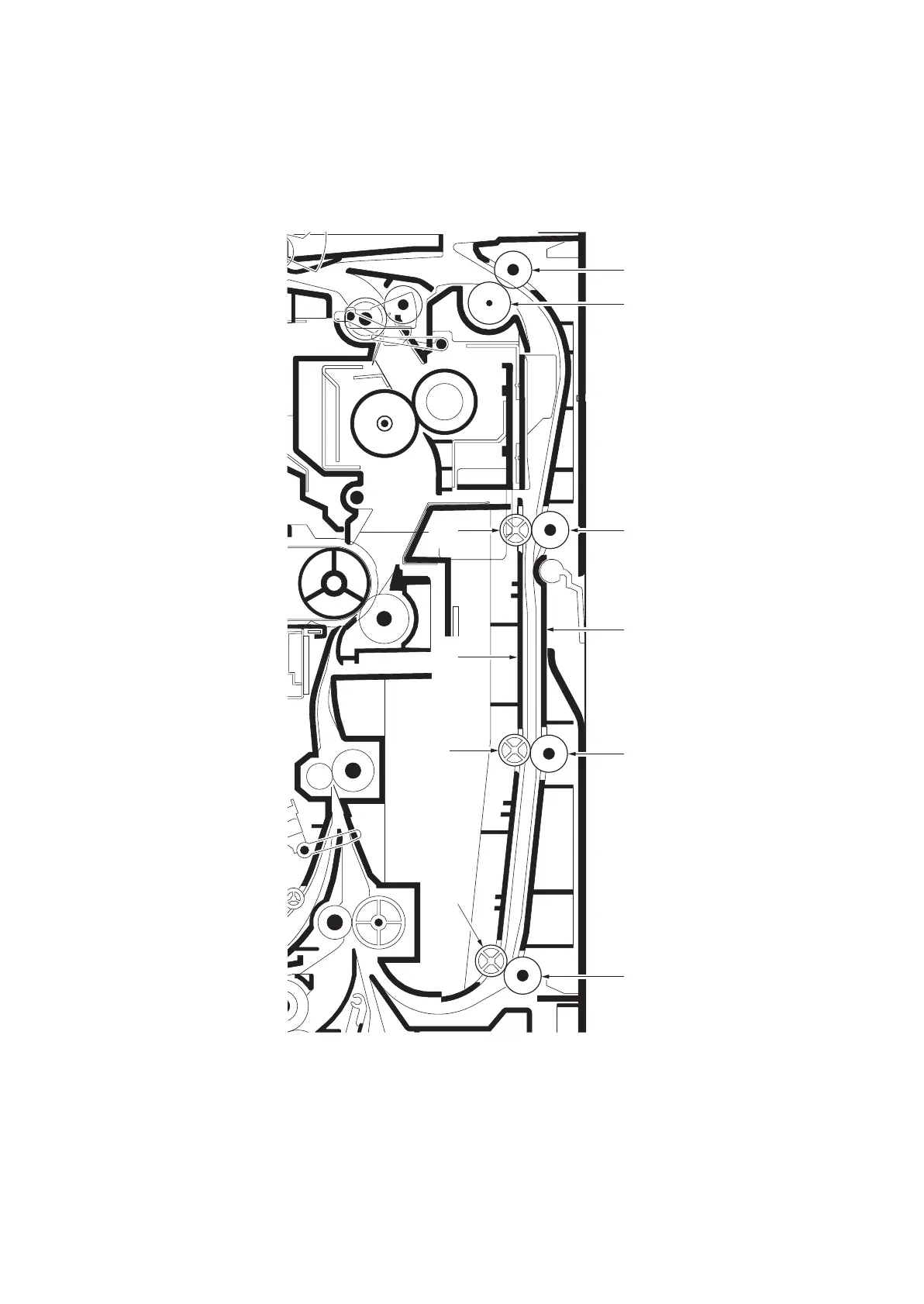

Figure 2-1-24 Duplex conveying section
3
5
1
2
3
4
4
6
3
4
1. Duplex roller L
2. Eject pulley
3. Duplex rollers S
4. Duplex pulleys
5. Duplex frame
6. Duplex feed guide

Kyocera Ecosys M6526cdn Specifications

General

Print Technology	Laser
Copy Resolution	600 x 600 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Functions	Print, Copy, Scan, Fax
Fax Speed	33.6 kbps
Mobile Printing Support	Yes
Paper Output Capacity	150 sheets
Max Paper Size	A4
Print Resolution	1200 x 1200 dpi
Scan Resolution	600 x 600 dpi
Connectivity	USB 2.0, Ethernet
Warm-up Time	29 seconds
Duty Cycle	50, 000 pages per month
Recommended Monthly Print Volume	Up to 3, 000 pages
First Copy Out Time	10 seconds
Zoom Range	25% - 400%
Scan to	Email, FTP, SMB, USB
Fax Resolution	300 x 300 dpi
Memory	512 MB
Supported Paper Sizes	A4, A5, A6, B5, Letter, Legal
