Kyocera Ecosys M6526cdn

2PV/2PW
2-1-27
(2) Original conveying section
The original conveying section consists of the parts shown in figure. A conveyed original is scanned by the
optical section (CCD) of main machine when it passes through the DP contact glass of main machine.

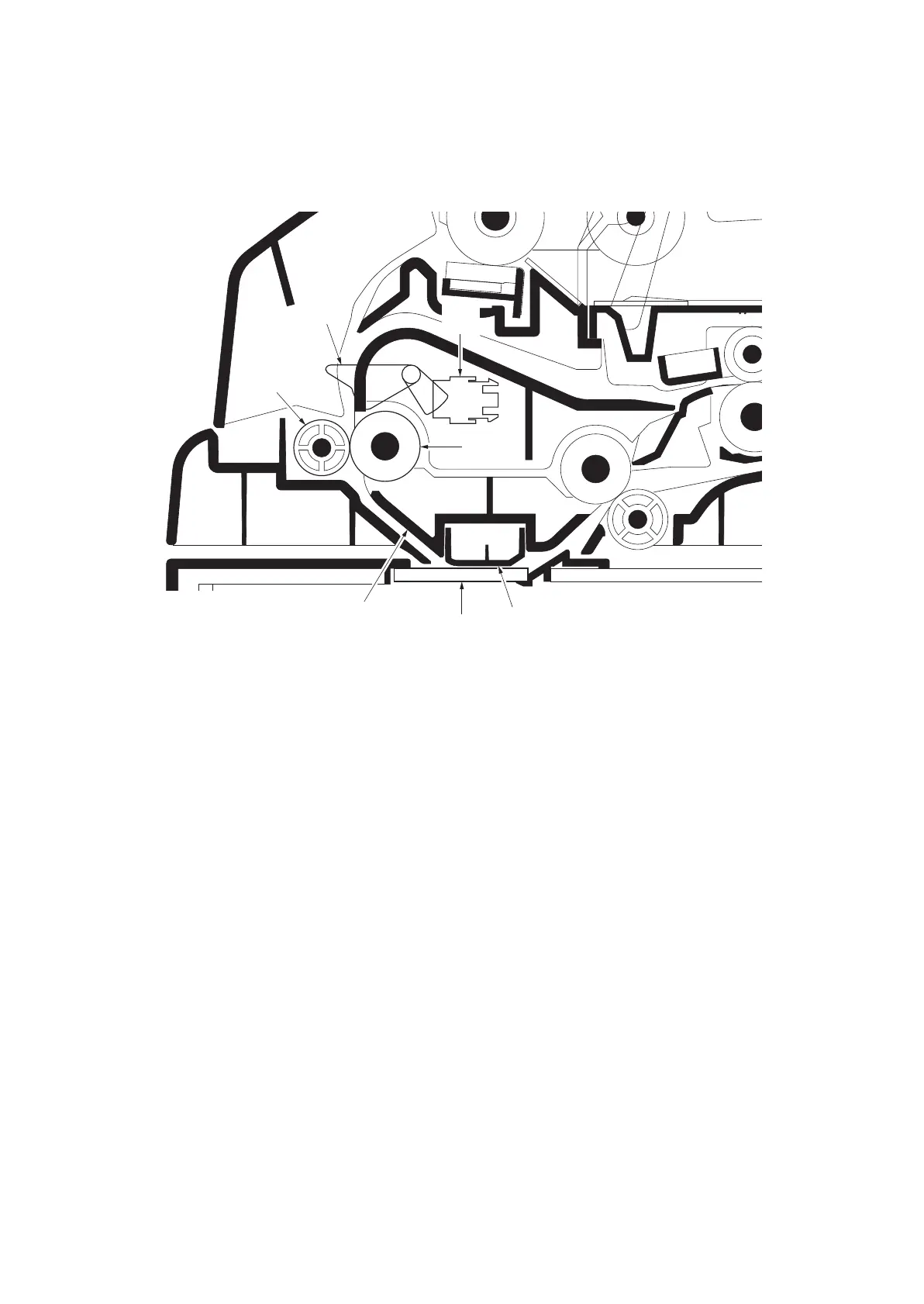

Figure 2-1-28 Original conveying section
7
1
5
3
4
6
2
1. Conveying roller A
2. Conveying pulley
3. Conveying bottom
4. Reading guide
5. DP timing sensor (DPTS)
6. Actuator (DP timing sensor)
7. DP contact glass
