Kyocera Ecosys M6526cdn Service Manual

2PV/2PW
2-1-16
2-1-5 Transfer/Separation section
The transfer/separation section consists of the intermediate transfer unit section and the secondary transfer
roller section.
(1) Intermediate transfer unit section
The intermediate transfer unit section consists of the transfer cleaning unit, the transfer belt, and the four pri-
mary transfer rollers for respective color drums, and forms a full-color toner image by superimposing and
transferring single-color toner images formed on each drum onto the transfer belt. Also with the ID sensors
(IDS) mounted on the machine frame, the toner density on the transfer belt is measured.
The transfer cleaning unit collects toner remaining on the transfer belt after secondary transfer and forwards it
as waste toner to the waste toner box.

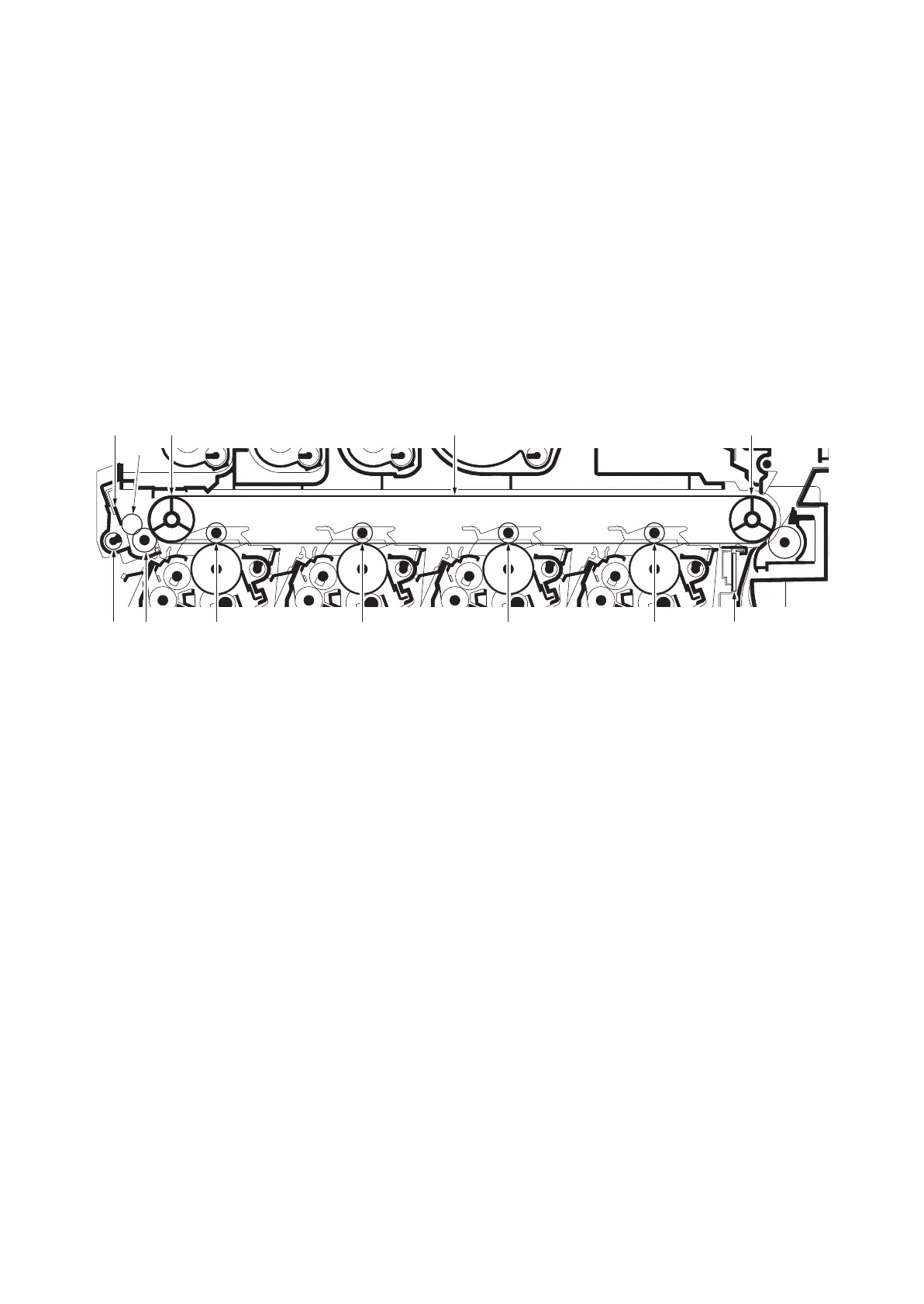

Figure 2-1-16 Intermediate transfer unit section
11 8
9
6 45 3 12
10 1 27
1. Tension roller
2. Drive roller
3. Primary transfer roller K
4. Primary transfer roller M
5. Primary transfer roller C
6. Primary transfer roller Y
7. Transfer belt
8. Cleaning fur brush
9. Cleaning roller
10. Cleaning blade
11. Cleaning screw
12. ID sensors (IDS)

Kyocera Ecosys M6526cdn Specifications

General

Print Technology	Laser
Copy Resolution	600 x 600 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Functions	Print, Copy, Scan, Fax
Fax Speed	33.6 kbps
Mobile Printing Support	Yes
Paper Output Capacity	150 sheets
Max Paper Size	A4
Print Resolution	1200 x 1200 dpi
Scan Resolution	600 x 600 dpi
Connectivity	USB 2.0, Ethernet
Warm-up Time	29 seconds
Duty Cycle	50, 000 pages per month
Recommended Monthly Print Volume	Up to 3, 000 pages
First Copy Out Time	10 seconds
Zoom Range	25% - 400%
Scan to	Email, FTP, SMB, USB
Fax Resolution	300 x 300 dpi
Memory	512 MB
Supported Paper Sizes	A4, A5, A6, B5, Letter, Legal
