2PV/2PW
2-1-29
(3) Original switchback/eject sections
The original switchback/eject sections consists of the parts shown in figure. An original of which scanning is
complete is ejected to the original eject table by the eject roller. In the case of duplex switchback scanning, an
original is conveyed temporarily to the switchback tray and conveyed again to the original conveying section
by the switchback roller.

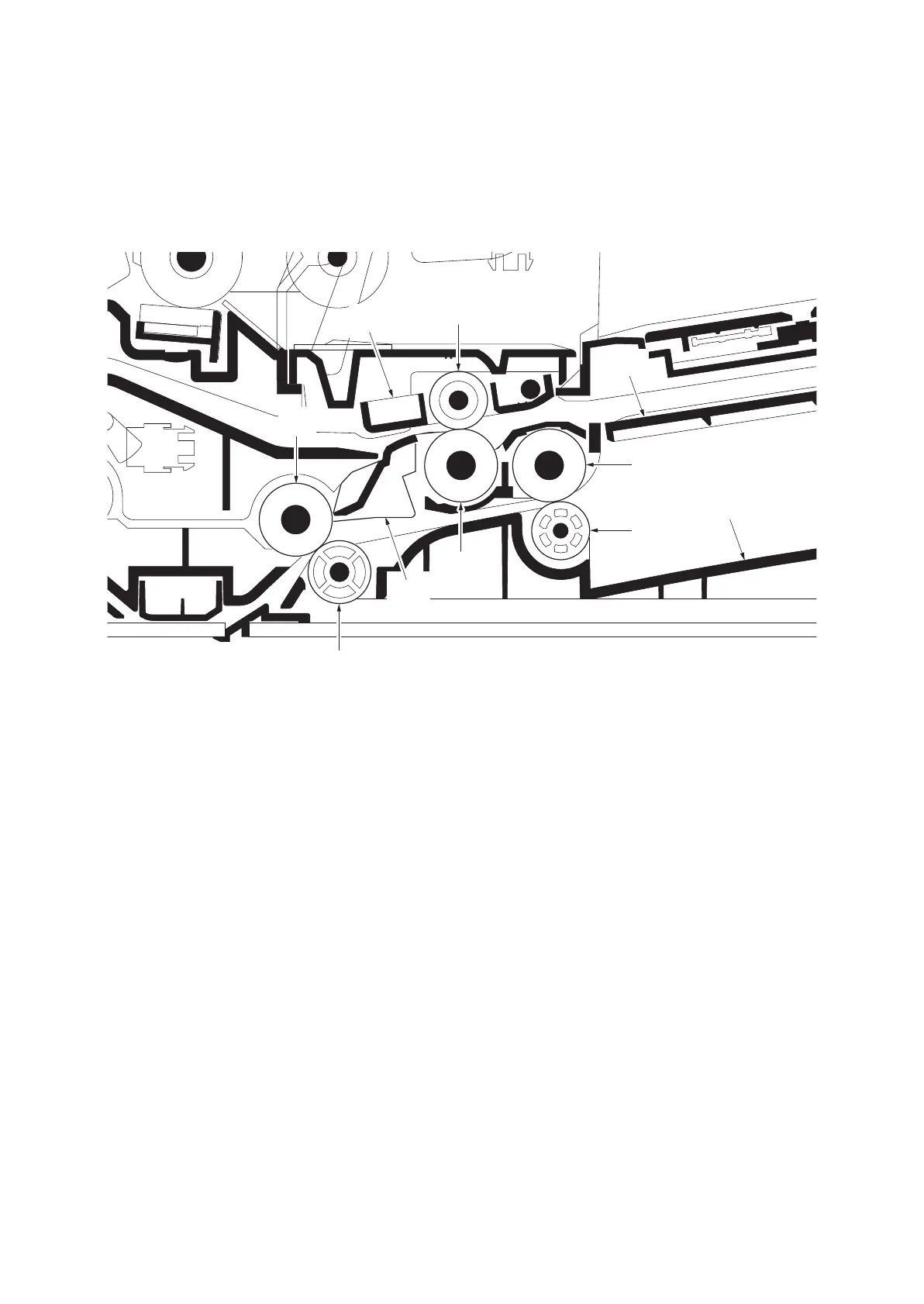

Figure 2-1-30 Original switchback/eject sections
7
2
4
3
1
8
6
9
5
10
1. Conveying roller B
2. Conveying pulley
3. Eject roller
4. Eject pulley
5. Original eject table
6. Switchback guide
7. Switchback roller
8. Switchback pulley
9. Switchback pulley mount
10. Switchback tray
