2PV/2PW
1-5-43
(5) Detaching and refitting the middle transfer drive unit
Procedure
1. Remove the intermediate transfer unit
(see page 1-5-22).
2. Remove the rear upper cover, right
upper cover, left upper cover and front
cover (see page 1-5-3).
3. Remove the left rear cover and left
cover (see page 1-5-9).
4. Remove the fuser pressure drive unit
(see page 1-5-41).
5. Remove connector (YC15) from engine
PWB.

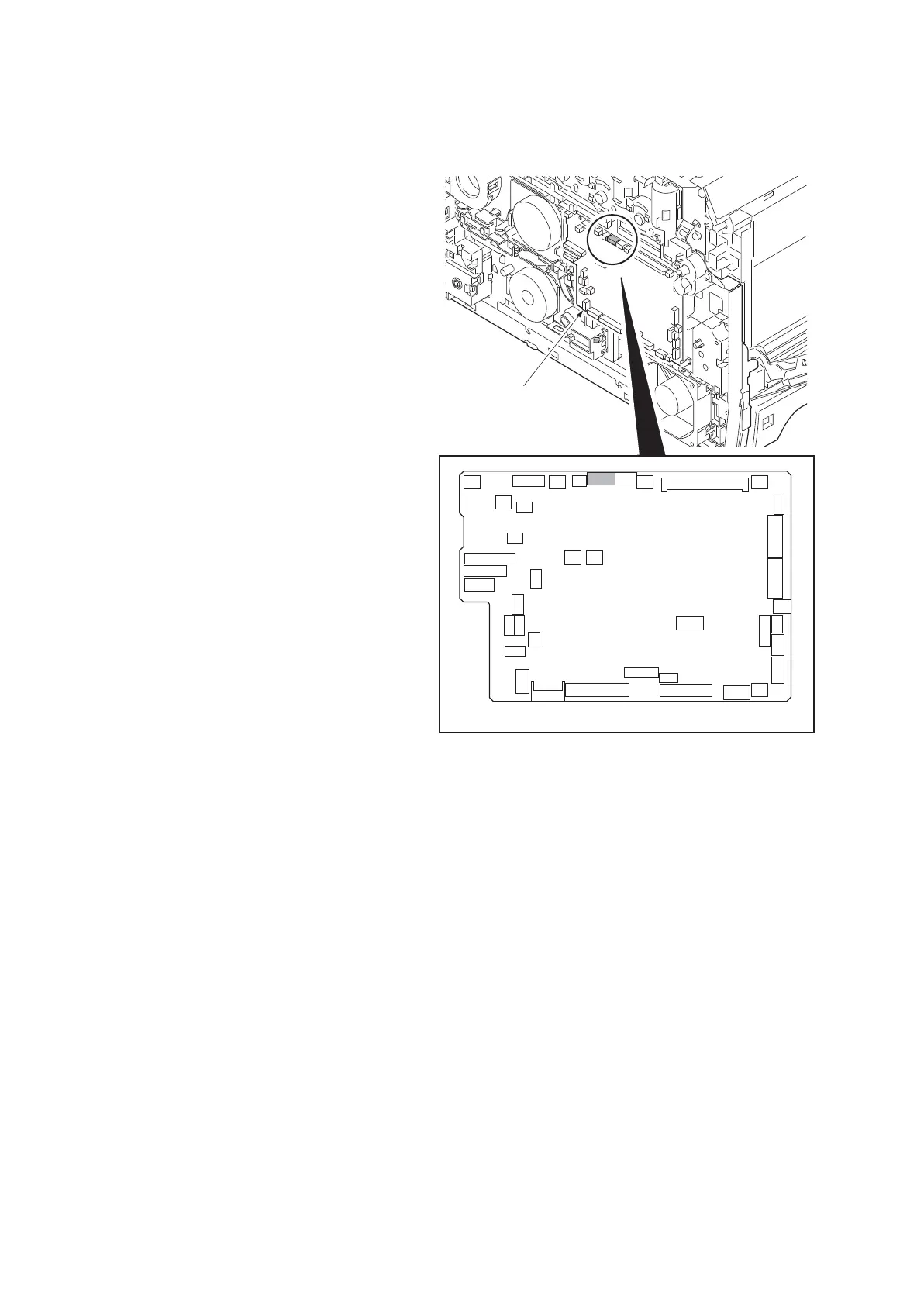

Figure 1-5-64
YC15
Engine PWB
