Kyocera Ecosys M6526cdn Service Manual

2PV/2PW
2-1-1
2-1 Mechanical Construction
2-1-1 Paper feed/conveying section
Paper feed/conveying section consists of the paper feed unit that feeds paper from the cassette and the MP
tray paper feed unit that feeds paper from the MP tray, and the paper conveying section that conveys the fed
paper to the transfer/separation section.
(1) Cassette paper feed section
The cassette can contain 250 sheets. The sheet from the cassette is pulled out by rotation of the pickup roller
and sent to the paper conveying section by rotation of the paper feed roller. Also the retard roller prevents mul-
tiple feeding of paper.

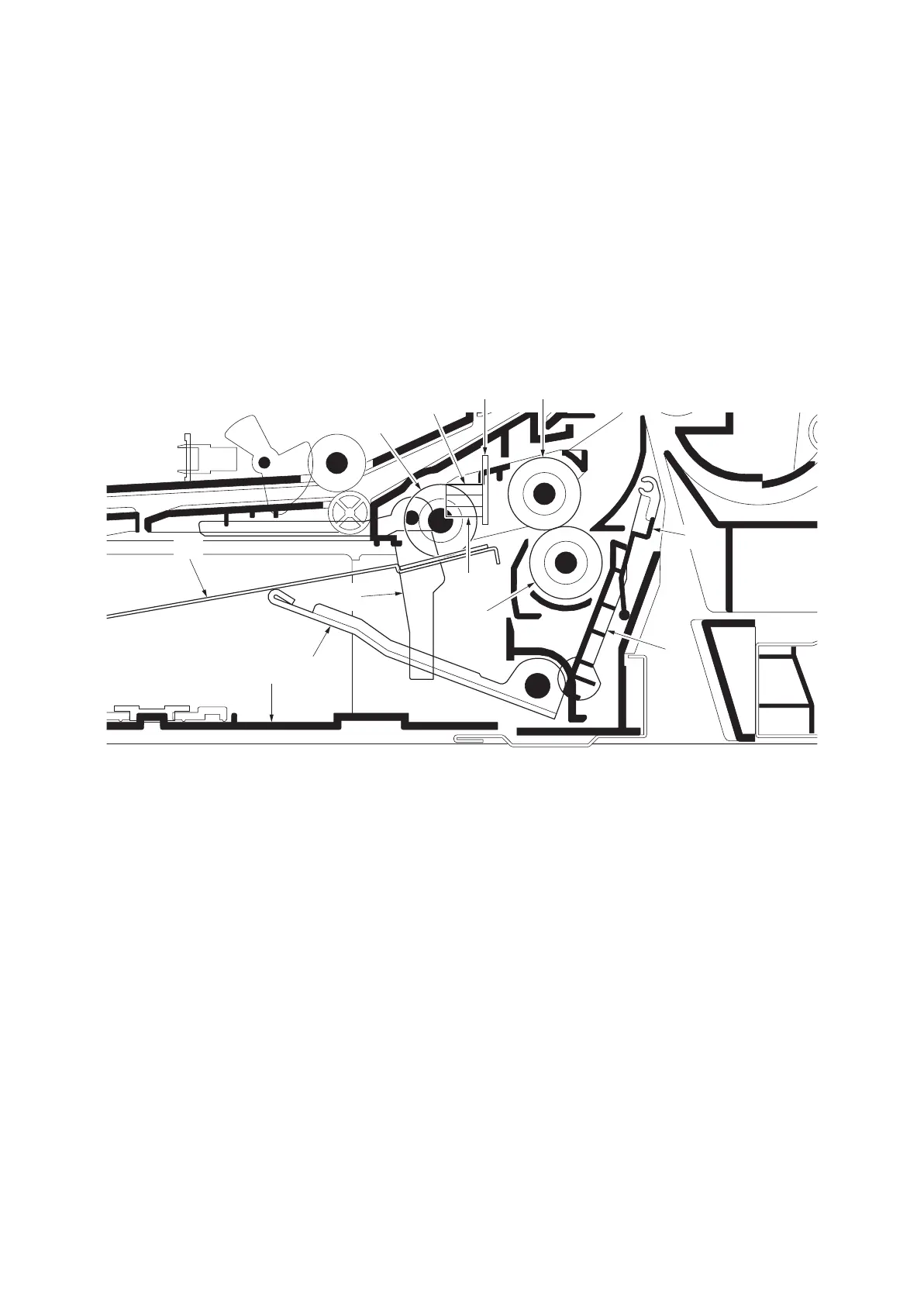

Figure 2-1-1 Cassette paper feed section
1
10
7
11
3
5
4
9
12
2
8
6
1. Pickup roller
2. Paper feed roller
3. Retard roller
4. Retard cover
5. Retard lever
6. Cassette base
7. Bottom plate
8. Lift work plate
9. Paper sensor (PS)
10. Actuator (paper sensor)
11. Lift sensor (LS)
12. Cassette PWB (CPWB)

Kyocera Ecosys M6526cdn Specifications

General

Print Technology	Laser
Copy Resolution	600 x 600 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Functions	Print, Copy, Scan, Fax
Fax Speed	33.6 kbps
Mobile Printing Support	Yes
Paper Output Capacity	150 sheets
Max Paper Size	A4
Print Resolution	1200 x 1200 dpi
Scan Resolution	600 x 600 dpi
Connectivity	USB 2.0, Ethernet
Warm-up Time	29 seconds
Duty Cycle	50, 000 pages per month
Recommended Monthly Print Volume	Up to 3, 000 pages
First Copy Out Time	10 seconds
Zoom Range	25% - 400%
Scan to	Email, FTP, SMB, USB
Fax Resolution	300 x 300 dpi
Memory	512 MB
Supported Paper Sizes	A4, A5, A6, B5, Letter, Legal
