(4) Direction of installing the principal fan motors
When detaching or refitting the fan motors, be careful of the airflow direction (intake or exhaust).

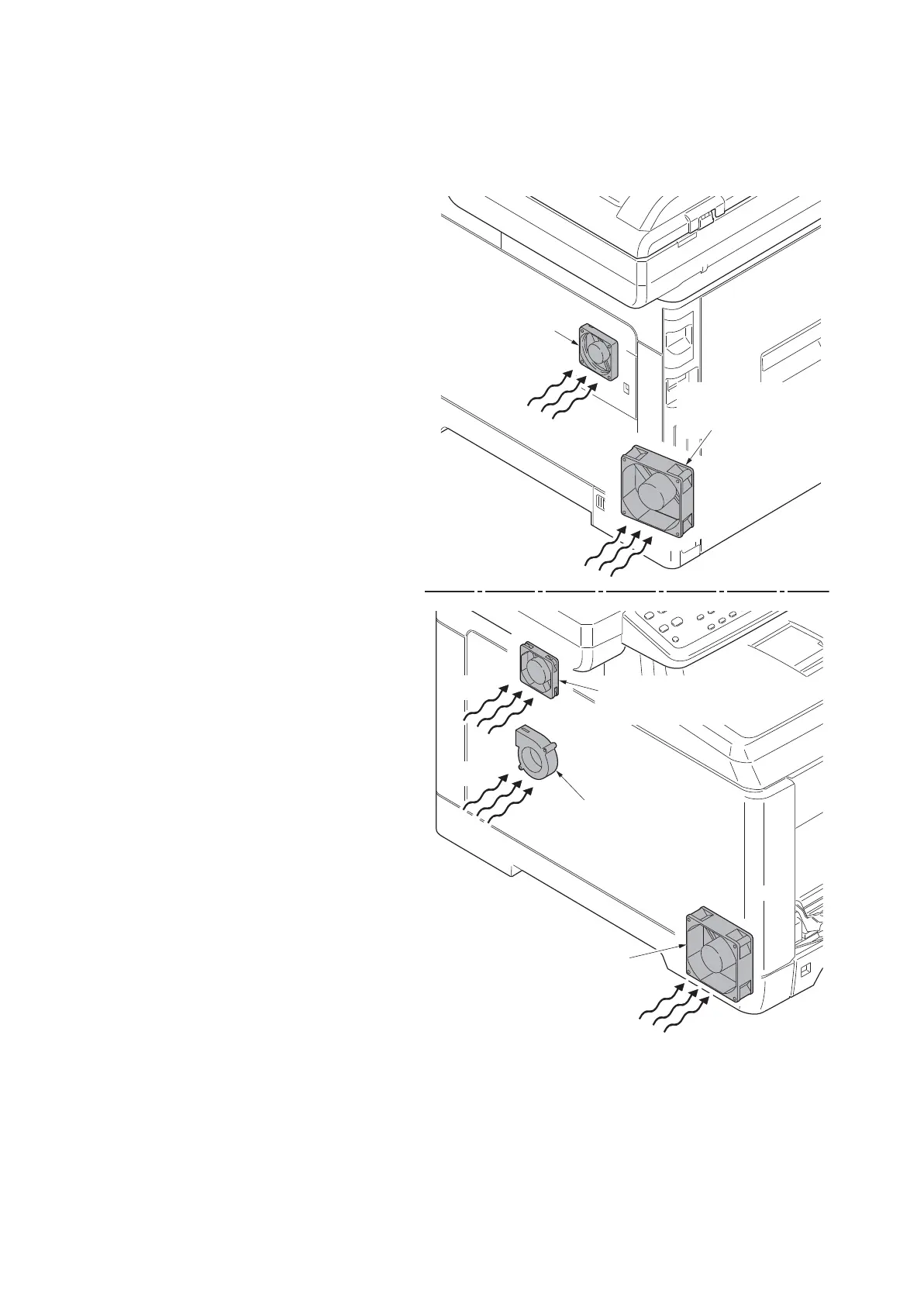

Figure 1-5-151
Right fan motor
(Rating label: Inside)
Fuser fan motor
(Rating label: Inside)
Left fan motor
(Rating label: Inside)
Container fan motor
(Rating label: Inside)
Controller fan motor
(Rating label: Inside)
Intake
Intake
Intake
Intake
Intake
