Kyocera Ecosys M6526cdn Service Manual

2PV/2PW
1-5-41
(4) Detaching and refitting the fuser pressure drive unit
Procedure
1. Remove the fuser unit (see page 1-5-
26).
2. Remove the rear upper cover, right
upper cover, left upper cover and front
cover (see page 1-5-3).
3. Remove the left rear cover and left
cover (see page 1-5-9).
4. Remove connector (YC38) from engine
PWB.

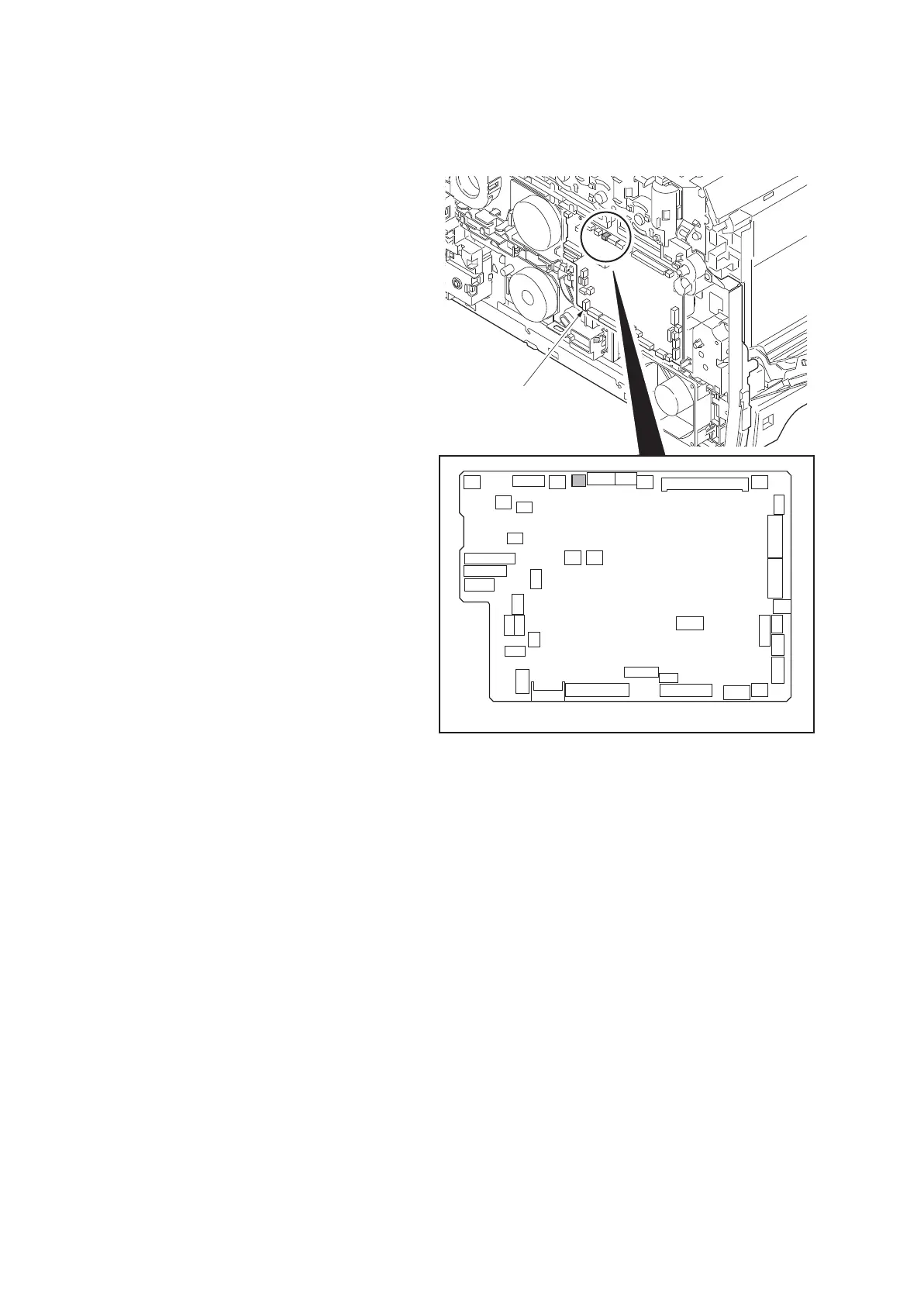

Figure 1-5-62
YC38
Engine PWB
Engine PWB
