Kyocera Ecosys M6526cdn Service Manual

2PV/2PW
2-1-19
2-1-6 Fuser section
The paper sent from the transfer/separation section is interleaved between the heat roller and the press roller.
The heat roller is heated by the fuser heater (FH), and the toner is fused by heat and pressure and fixed onto
the paper because the press roller is pressed by the fuser press spring. The surface temperature of heat roller
is detected by the fuser thermistor (FTH) and controlled by the engine PWB (EPWB). If the fuser section
shows extremely high temperature, the power line will be shut off and the fuser heater (FH) is forced to turn
off.

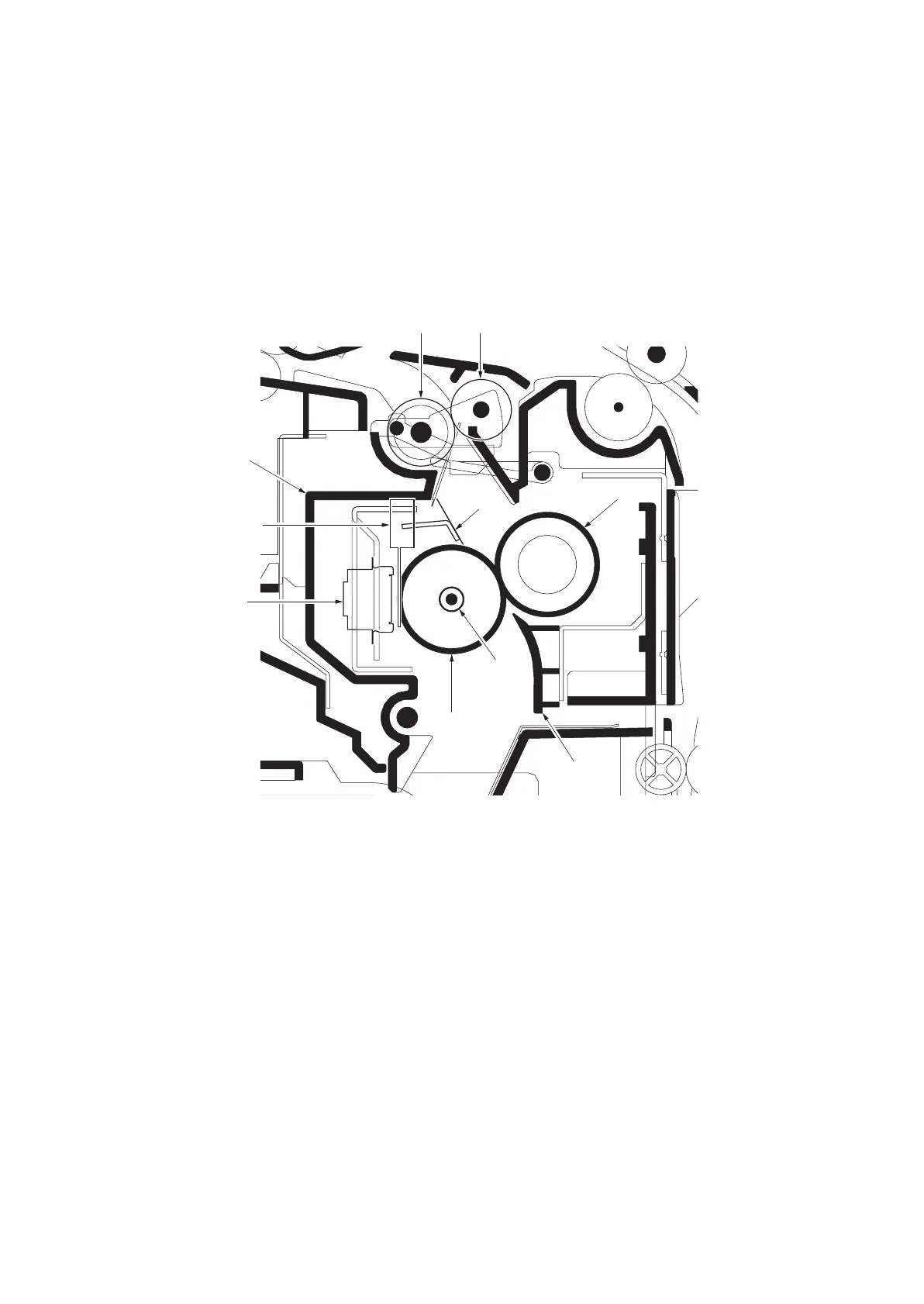

Figure 2-1-20 Fuser section
3
1
9
8
7
4
6
10
2
5
1. Heat roller
2. Press roller
3. Upper fuser frame
4. Fuser paper guide
5. Separators
6. Eject roller
7. Eject pulley
8. Fuser heater (FH)
9. Fuser thermistor (FTH)
10. Fuser thermostat (FTS)

Kyocera Ecosys M6526cdn Specifications

General

Print Technology	Laser
Copy Resolution	600 x 600 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Functions	Print, Copy, Scan, Fax
Fax Speed	33.6 kbps
Mobile Printing Support	Yes
Paper Output Capacity	150 sheets
Max Paper Size	A4
Print Resolution	1200 x 1200 dpi
Scan Resolution	600 x 600 dpi
Connectivity	USB 2.0, Ethernet
Warm-up Time	29 seconds
Duty Cycle	50, 000 pages per month
Recommended Monthly Print Volume	Up to 3, 000 pages
First Copy Out Time	10 seconds
Zoom Range	25% - 400%
Scan to	Email, FTP, SMB, USB
Fax Resolution	300 x 300 dpi
Memory	512 MB
Supported Paper Sizes	A4, A5, A6, B5, Letter, Legal
