Kyocera Ecosys M6526cdn Service Manual

2PV/2PW-2
1-5-53
4. Pull the inner tray lever and open the
inner tray.
5. Release two hooks. Slide the right
upper cover backward and then remove
it.

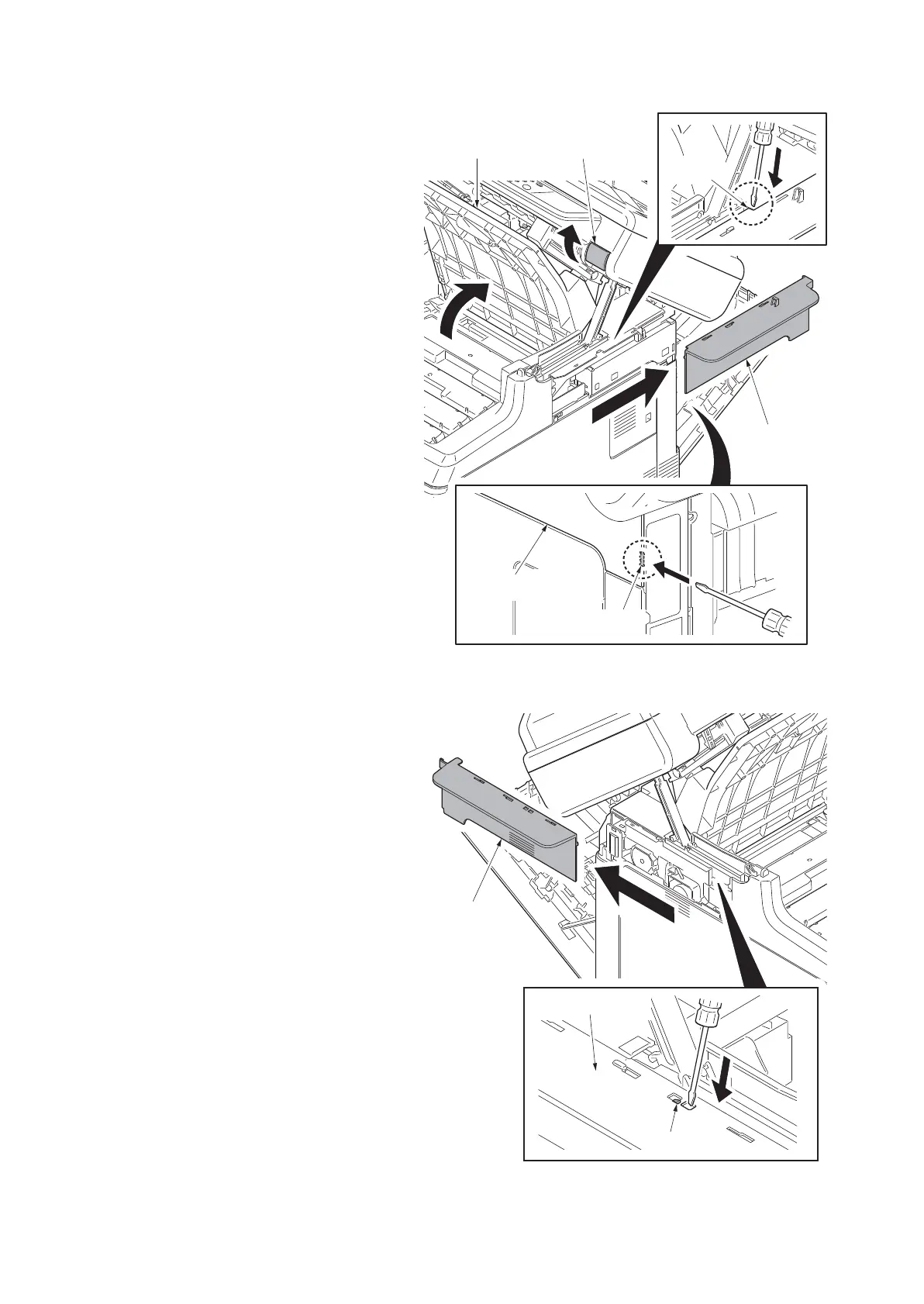

Figure 1-5-81
6. Release the hook. Slide the left upper
cover backward and then remove it.
Figure 1-5-82
Right upper
cover
Right upper cover
Hook
Hook
Inner tray lever
Inner tray
Left upper
cover
Left upper cover
Hook
