Kyocera Ecosys M6526cdn Service Manual

2PV/2PW-2
1-5-65

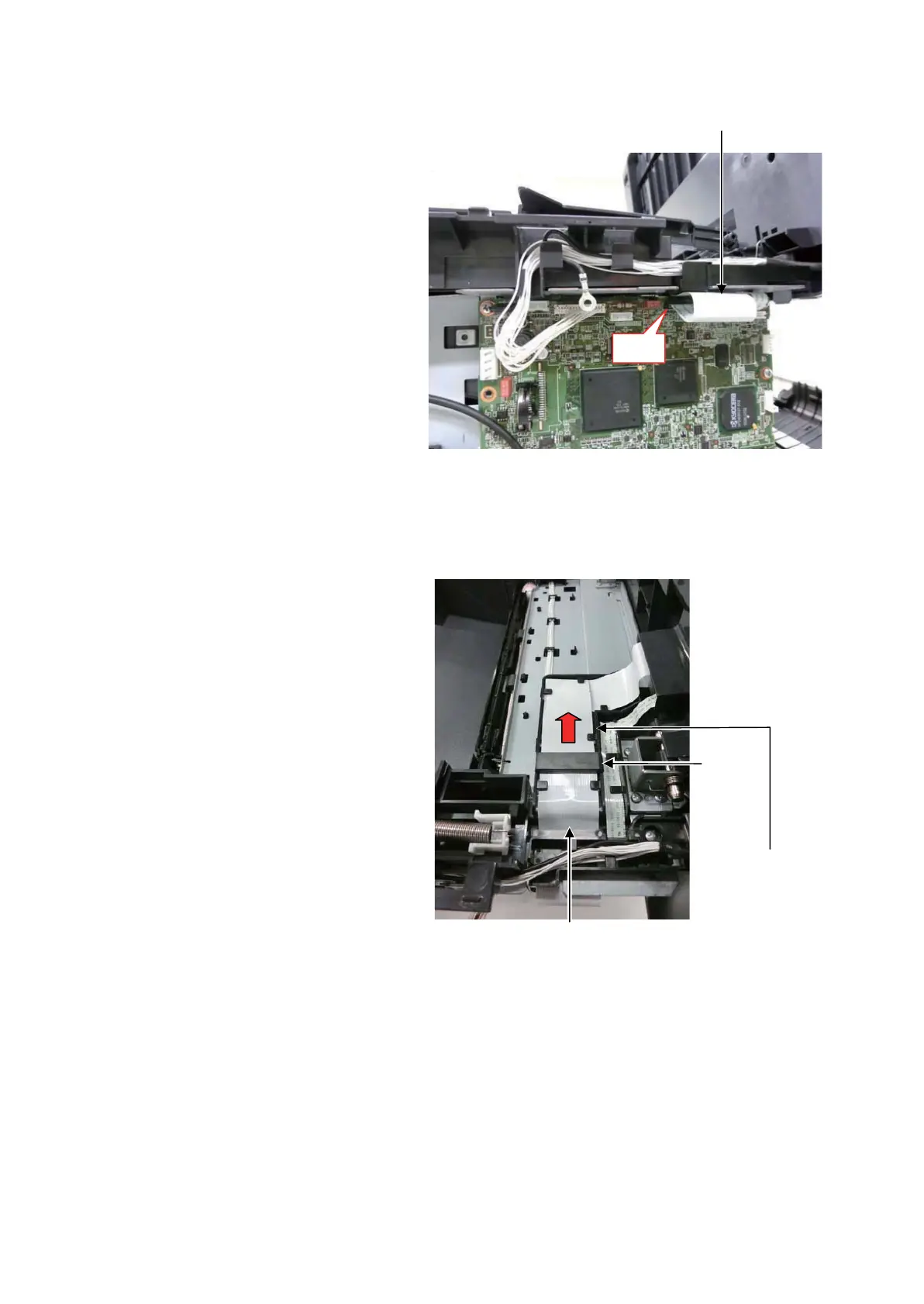

41. Disconnect the FFC wire at the connec-
tor YC8 on the main PWB.
*: Reconnect the connectors on the main
PWB before reattaching the wire holder
detached at Step 40.
Figure 1-5-104
42. Remove the wire holder and the ferrite
core.
Figure 1-5-105
43. Reattach the left and right holders in a
reverse manner of removal at Step 20,
21.
Close the Document Processor and the
scanner unit.
FFC wire
YC8
FFC wire
(Upper side of the main PWB)
Ferrite
core
Wire holder

Kyocera Ecosys M6526cdn Specifications

General

Print Technology	Laser
Copy Resolution	600 x 600 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Functions	Print, Copy, Scan, Fax
Fax Speed	33.6 kbps
Mobile Printing Support	Yes
Paper Output Capacity	150 sheets
Max Paper Size	A4
Print Resolution	1200 x 1200 dpi
Scan Resolution	600 x 600 dpi
Connectivity	USB 2.0, Ethernet
Warm-up Time	29 seconds
Duty Cycle	50, 000 pages per month
Recommended Monthly Print Volume	Up to 3, 000 pages
First Copy Out Time	10 seconds
Zoom Range	25% - 400%
Scan to	Email, FTP, SMB, USB
Fax Resolution	300 x 300 dpi
Memory	512 MB
Supported Paper Sizes	A4, A5, A6, B5, Letter, Legal
