Kyocera Ecosys M6526cdn Service Manual

2PV/2PW-2
1-5-71
53. Remove two screws at the machine
rear side and release three hooks under
the operation cover.
Remove the ISU cover while pushing
the DP lock lever to the right using a
flat-blade screw driver.
*: Do not touch the inner side of the contact
glass removed with the ISU cover. (Dirt
adhered triggers the abnormal image.)

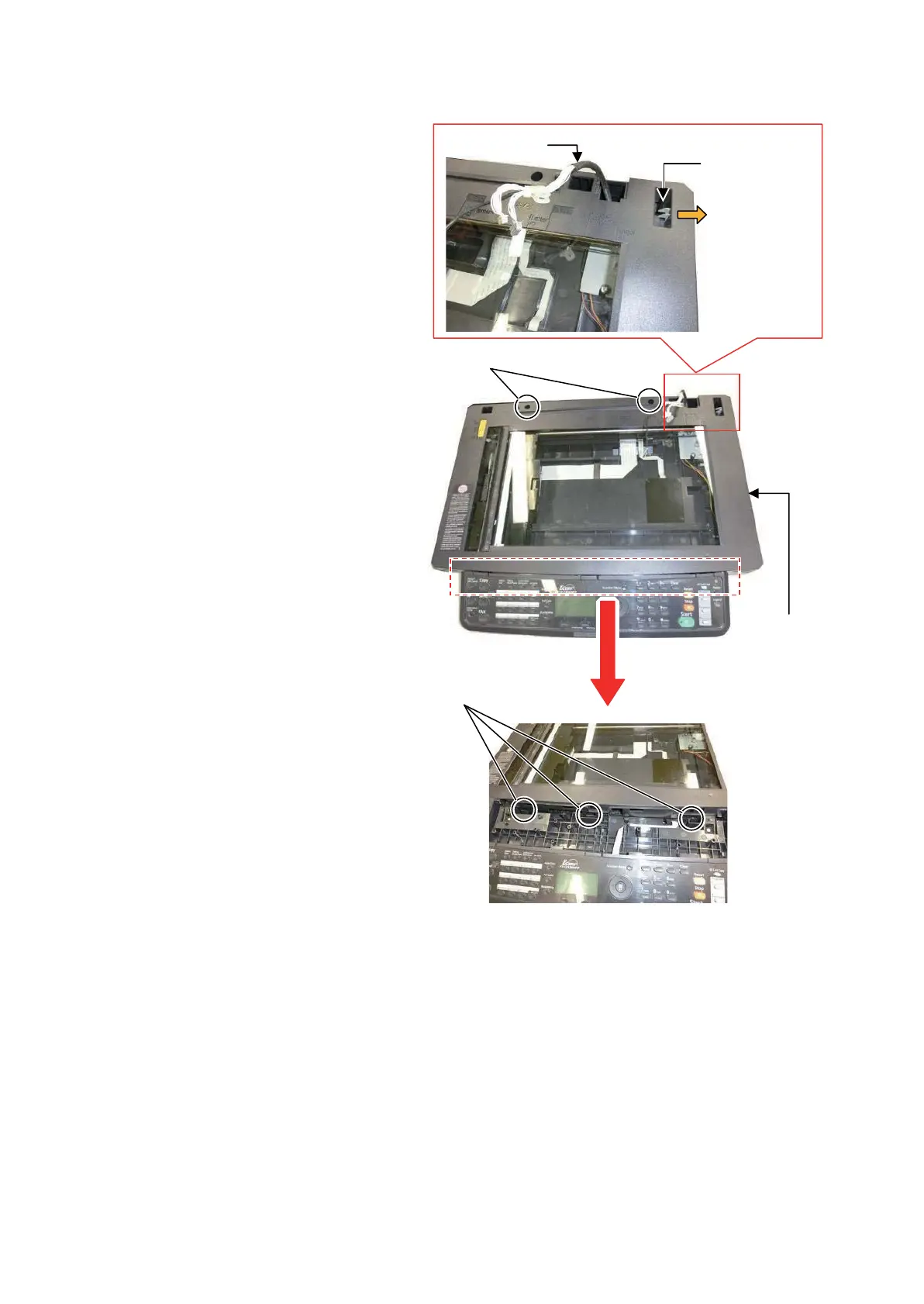

Figure 1-5-115
DP locl lever
DP wire
SCrews
ISU cover
Hooks
